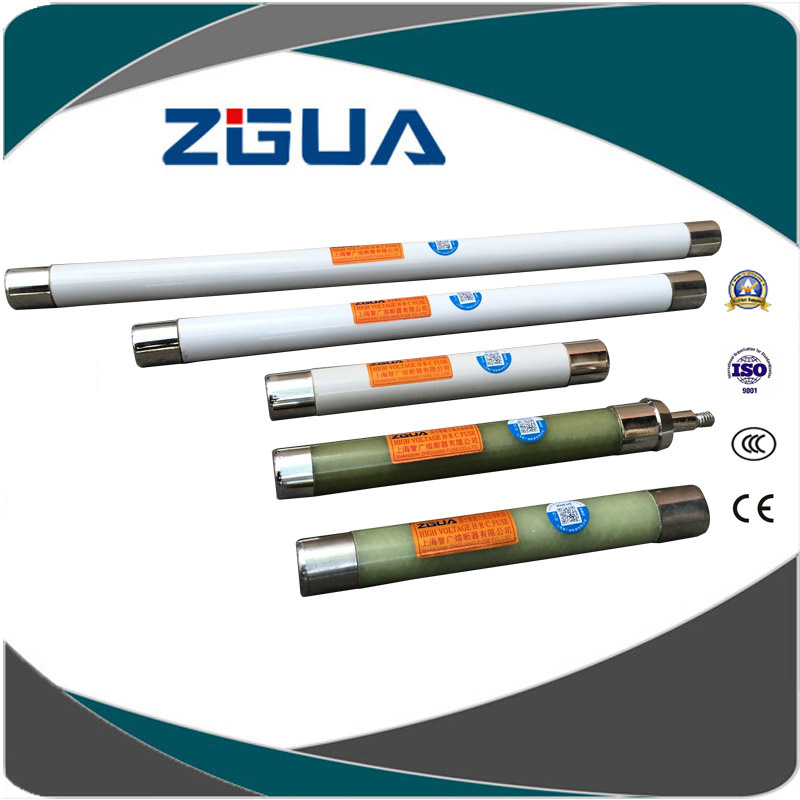

High Voltage Limit Current Fuse for Protection Voltage Instrumnets Transformer

Name: High Voltage Limit Current Fuse for Protection Voltage Instrumnets Transformer
Brand: all-electronics-online.com
SKU: 808628845
Availability: InStock
Rating: 4.6 (125 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

This product can be used in indoor system of Ac50Hz and rated voltage of 3.6-40.5KV to protect the voltage mutual-inductor from over loading and circuit break.(tested by-inductor from overloading and circ-uit break.(Tested by National high-voltage quality Supervising and Testing Center,in accordance with GBl5166.2 and lEC282-1).

Basic parameters

See chart for the fuse of basic parameters

Type	Rated Voltage(KV)	Rated current(A)	Rated brake current(KA)	Dimensions(mm)

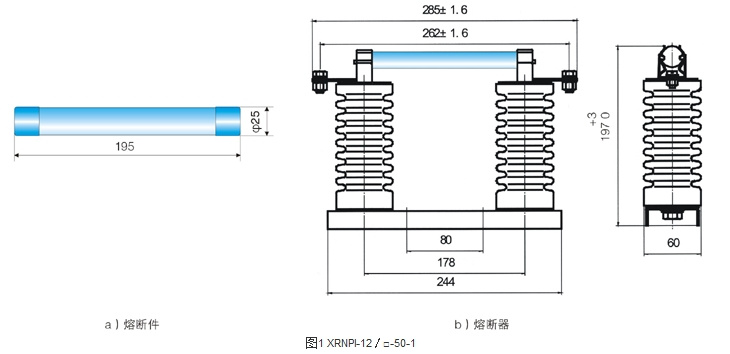

XRNPl-/--1	7.2(3.6)12	0.2,0.3,0.5,1,2,3.15	50	See Pic 1

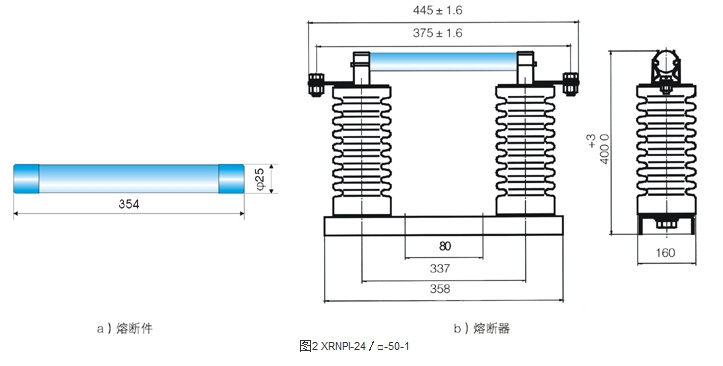

XRNPl-/--1	24	0.2, 0.3,0.5,1,2,3.15	50	See Pic 2

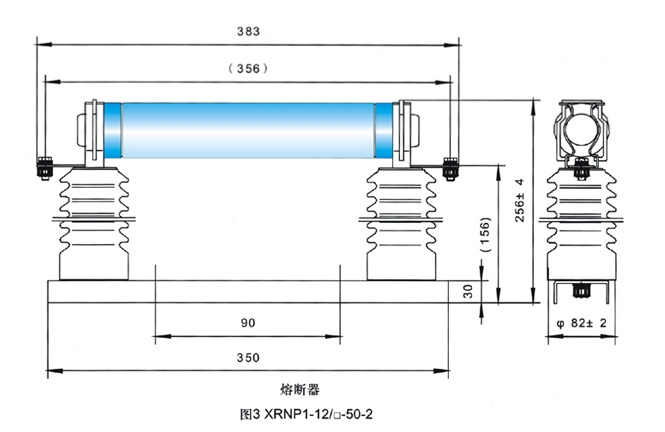

XRNPl-/--2	12	2,3.15	50	See Pic 3

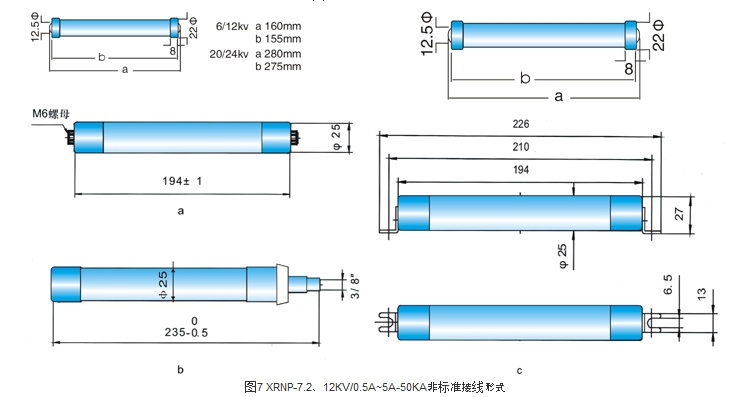

XRNP6-/--1	40.5	0.2,0.3,0.5,1,2,3.15	31.5	See Pic 4(Φ25)
XRNP6-/--3		0.2,0.3,0.5,1,2,3.15 4,5		5(Φ30)
XRNP6-/--4		0.2,0.5,1,2,3.15,5,6.3		6(Φ41)

Prod Model:	XRNP
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage

Zhejiang Zhiguang Fuse Co., Ltd. A modern company specialized in high and low voltage fuseptoduclion in China. With sufficient tethnology capability precise manufacturing technique and Well-eqipped testfacility, the Company now owns above 100 types of series "ZGUA"producls covering more than1000 specificalions, all the productscomply with international IEC standard and national GB13539and GB15166 standard and have passed.

We specialized in high and low voltage fuse produclion in China. With sufficient tethnology capability precise manufacturing technique and Well-eqipped testfacility, the Company now owns above 100types of series "ZGUA"producls covering more than1000 specificalions, all the products comply with international IEC standard and national GB13539and GB15166 standard and have passed.

The market is the base for the entrprise's survival. After years of market test; The products notonly satisfy the customers at home but also have been exported to above 30 countries and areas, ithas won the reputation all of the world with its advanced technology, perfect functiion, reliable quality and high quality service.

In order to realize sustainable development of enterprise in the competitive market, the companyalwavs intends to offer better products, more advanced technology and betler service to the customer with the tenet of "Quality No. 1, Managing with credibilily"and create a more magnificent future withmind and wisdom.
