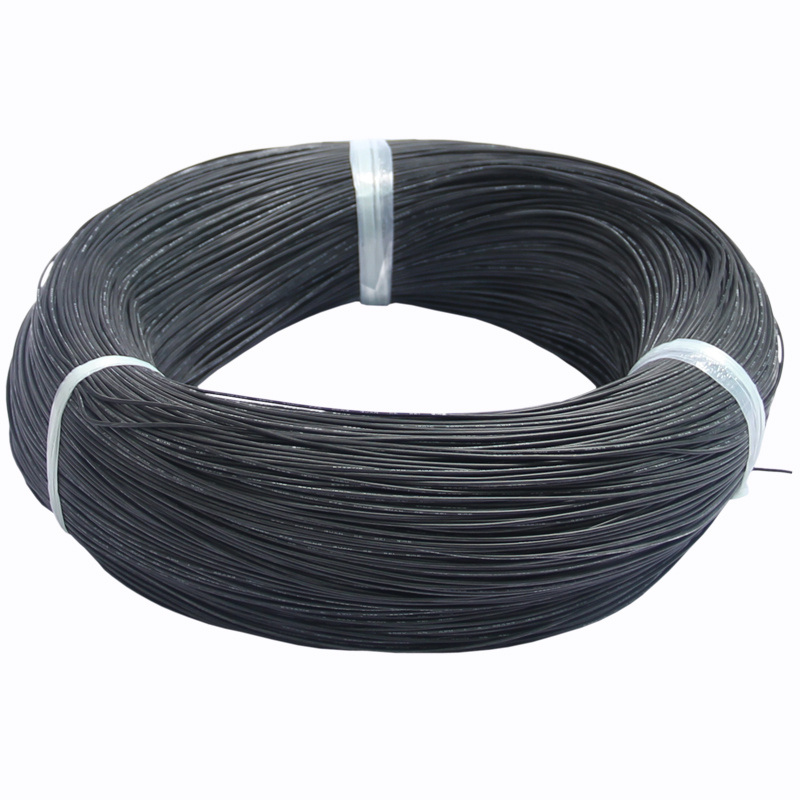

High Voltage Silicone Rubber Cable with UL3239

Name: High Voltage Silicone Rubber Cable with UL3239
Brand: all-electronics-online.com
SKU: 678358962
Availability: InStock
Rating: 5 (126 reviews)

Price:	US $ 1.26-9.65/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	3000/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

High Voltage silicone rubber cable(UL3239)
Nominal Voltage:3KV,6KV,10KV,20KV,30KV
Temperature Range:-60ºC to 150/200ºC
Conductor:Tinned copper
Insulator:silicone rubber
O.D.Tolerance:±0.10mm
Color:black-brown-red-orange-yellow-green-blue-violet-gray-white-green/yellow.ect

			3KV		6KV		10KV		20KV		30KV
AWG	con.of conductor.	Diameter	insulation thickness	over diameter	insulation thickness	over diameter	insulation thickness	over diameter	insulation thickness	over diameter	insulation thickness	over diameter	packing
AWG	NO/mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mt/coils
28#	7/0.127	0.38	0.5	1.37	0.7	1.77	1.0	2.37	1.3	2.97	1.7	3.77	305
26#	7/0.16	0.48	0.5	1.49	0.7	1.89	1.0	2.49	1.3	3.09	1.7	3.89	305
24#	14/0.14	0.60	0.5	1.60	0.7	2.00	1.0	2.60	1.3	3.20	1.7	4.00	305
22#	22/0.14	0.76	0.5	1.76	0.7	2.16	1.0	2.76	1.3	3.36	1.7	4.16	305
20#	21/0.18	0.91	0.5	1.91	0.7	2.31	1.0	2.91	1.3	3.51	1.7	4.31	305
18#	34/0.18	1.17	0.5	2.17	0.7	2.57	1.0	3.17	1.3	3.77	1.7	4.57	305
16#	52/0.18	1.50	0.5	2.50	0.7	2.90	1.0	3.50	1.3	4.10	1.7	4.90	200
14#	41/0.254	1.83	0.6	3.03	0.8	3.43	1.2	4.23	1.5	4.83	2.0	5.83	100

Prod Model:	UL3239
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Voltage Silicone Rubber Cable:	UL3239
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	RoHS
Brand:	Dewei

DONGGUAN DEWEI WIRE Co., Ltd, established in 2004, specializes in manufacturing various kinds of silicone sleeve and electrical cable: Silicone rubber wire, FEP wire, PFA wire, PTFE wire, ETFE wire, heating wire, braided wire, power cable, twin flat cable, coaxical cable, high temperature cable and high voltage cable which can meet the requirements of UL, VDE, CCC.

Besides, we set up a wire processing workshop to provide customers with well processed wire group and wire harness of the batteries, the brushes, electric adjustment, steering gear, all kinds of JST, AMP connector, T-type plugs, banana plugs etc,

We set up and implement quality management system strictly according to international standard ISO9000, and had been awarded the certification of AMT ISO 9001: 2008 in 2009.

Our philosophy is quality-oriented, continuous innovative, reputation first and to treat our clients sincerely. In the meantime we persist in providing our customers with competitive high-quality products, creating a belief that quality decides the survival of the company.

Welcome to visit and give advice, let' S work together and create brilliant future.
