GPS Tracker
Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car tracker Vehicle GPS tracker with built-in GPS/GSM antennas ,Anti-theft GPS car tracker
Features
Built-in GSM, GPS antenna, compact, elegant appearance.
Support GPS and LBS (Location based service) double tracking solutions.
Support SMS/GPRS/Internet Network data transmission
Support configure the settings remotelySet multiple functions of security, tracking, monitoring surveillance, emergency alarms and management in its entirety.
Main Function Description

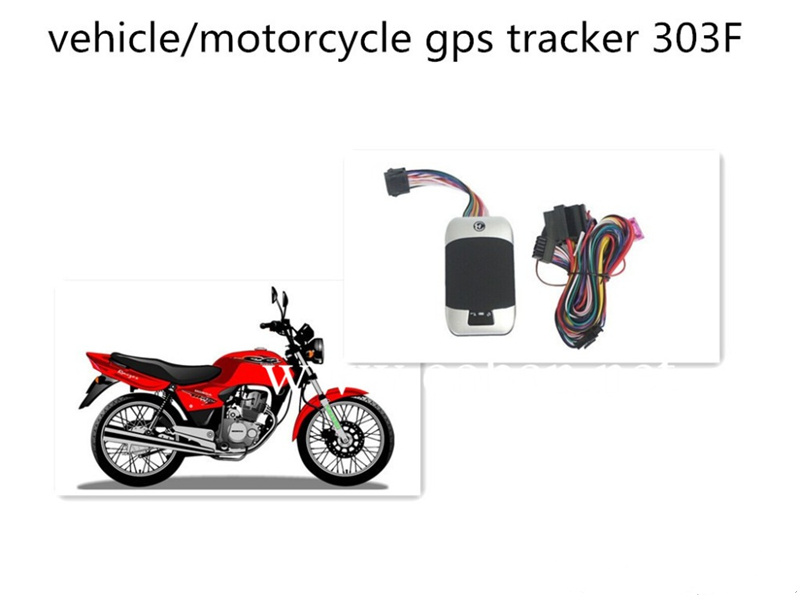

1.For all models vehicles ,and motorcycles
2.Location based service(LBS) + GPS double tracking solution
3.GPS blind spot alert
4.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
5.Save GPRS traffic mode(Money save mode)
6.Anti-theft gsm alarms:
Movement alarm
Geo-fence alarm
Over speed alarm
ext.power off alarm
low battery alarm
7.Alarms under ARM State: ACC/Shock alarms/Door open alarm
8.Remotey shutdown engine .
9.Support MiroSD
10.Built-in memory for 16,000 positions
11.SMS tracking on cell phone with google map link
12.Absolute street address by SMS
13.Web server , Mobile phone APP
14.optional fuel level monitor
Specificatios
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V |
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

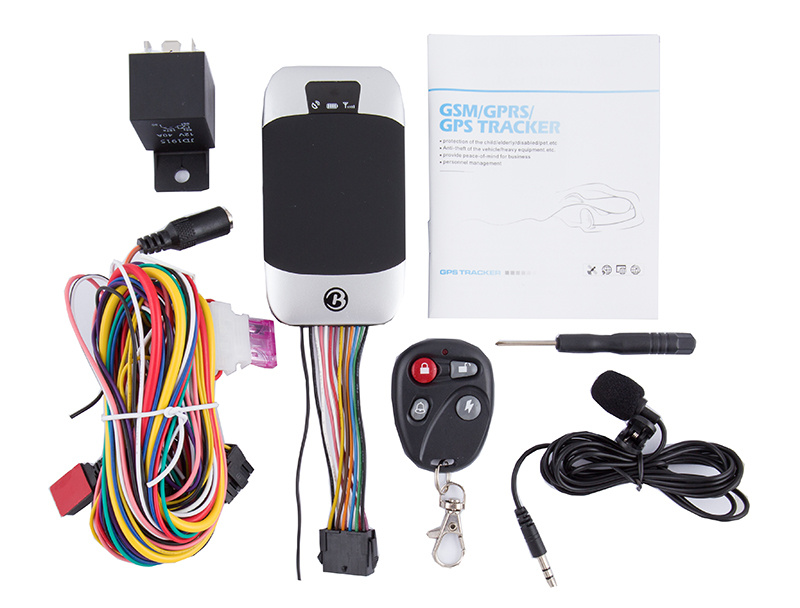

Package
GPS unit
12PIN harness
Microphone
Relay
Remote control
Screwer
Manual
Giftbox
Attention
Optional accessories
MicroSD
Alarm sire(big or small both ok)
Alarm Function ( siren beeps )
Fuel sensor
Calibration of fuel sensor
Due to the different height of fuel tank and fuel level sensor specifications, tracker need to set an appropriate zero value and full range value to detect the precise fuel percentage.
Tracker can connect to car original voltage type fuel level sensor ranging from 0-5V. You can also connect add-on voltage type fuel level sensor if you cannot use the one of the original car.
Fuel Alarm
When the fuel consumption exceeds the normal standards during driving, or oil theft/leakage when the vehicle is stopped, the tracker will send "oil: xx% + Geo-info" to the authorized number at interval of 3 minutes. The siren beeps 20S.
Cancel: Send SMS command " nooil+password" to tracker.
8PIN USB Cable
Cancel logging
the first method: use USB Cable
do not use USB (Send SMS "nosave+password", e.g. nosave123456)
Configure parameters by USB
Connect tracker to computer with the optional USB cable, open the memory of the tracker, find and open the initial configuration file with notepad, operate according the instructions.
Note: Correct password is needed every time you configure the tracker.
