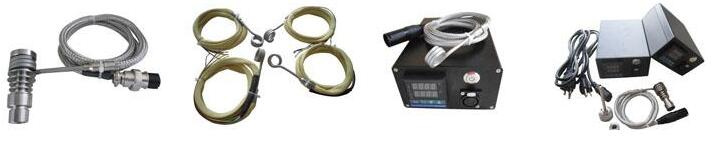

Hot Runner Coil Heater/ Heating Element
Price: |
Negotiable/Piece |
Min Order: |
50/Piece |
Pay Type: |
T/T,Western Union |
Product DetailsSuperb Heater Technology has been focused on the production of coil heater since 1985, which is well-known as one of the leading manufacturers and suppliers of coil heater. In the past years, we owned strong reputation for the high quality, reliable performance and strong durability of our products. Should you are interested, please feel free to contact our factory.Coil Heater
Hot runner heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover. Features |
1. | Standard sizes available with various cross section |
2. | Various Watt Density options available |
3. | Robust Design with Choice of Terminal Exits |
4. | Available with built in Thermocouple |
5. | Designed for even heat profile |
6. | Precision fit on Hot Runner Nozzles & Manifolds |
7. | Highly Non-corrosive |
8. | Maximum heat transfer due to more contact area |
9. | Advanced Thermal Engineering |
Application |
1. | Injection moulding machine nozzle |
2. | Hot Runner Nozzles & Bushings |
3. | Packaging machineries |
4. | Hot runner Injection moulds |
5. | Injection & Blow Moulding Machine Nozzles |
6. | PET prefrom & Thin wall container Moulds |
7. | Hot runner Manifolds |
Technical Specification and Tolerance
Sheath Material | Cr Ni-Steel |
Insulation Material | MgO |
Resistance Wire | Ni Cr 80-20 |
Thermocouple | 'J' type (Fe K) 'K' type (Cr Al) grounded or ungrounded |
Maximum Sheath Temperature | 700°C |
Die Electrical Strength | 800V A/C |
Insulation | > 5 M W |
Thermocouple | J type (Standard) or K type |
Length Tolerance (Straight) | 5% |
Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
Resistance Tolerance | + 10% (+ 5% Available Upon Request) |
Unheated Length | 35mm (Standard) |
Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm |
Coil Length + 1mm |
Temperature Controller Box for the Enail heater
Shenzhen superb heater technology Co., Ltd, Founded in 1985, Start is a state run Magnesium Oxide factory, After privatization reform To become a professional to provide all kinds of electric heating products of the comprehensive private joint-stock companies, After years of development company now grown to have include: ChaoHu heating material fitting, JiuDing machinery and spare parts, LiLin cartridge heaters, chaohu band coiling heaters, JXC Industrial heaters five plants, more than 200 employees, assets of more than $ 5 million, Products include various types of industrial heater, cartridge heater, hot runner, thermocouples, band heater and a variety of heater materials and heater equipment to meet customers one-stop shopping for all kinds of heating element, heating materials and heating equipment needs.
Over the years we are committed to technology and product quality improvement, many products similar products meet international quality, in China in the lead, swaged-in leads cartridge heater and diameter less 4mm cartridge heater as China's first single, cost-effective products to give our customers highly recognized, it has been to establish and maintain long-term cooperative relations with more than 700 customers in over 40 countries.
We will insist on our stable style to establish good image in both customers and our partners. We have been insisting on the "REDUCING THE COST AND GIVING ADVANGTAGE TO CUSTOMERS " To provide customers with better products and services, and grow with customers
After long-term accumulation, we have set up agents and partners in India, Dubai, USA, Russia, Brazil, Argentina, Thailand, Korea and other countries to provide convenient and quick service
