Prod Model: |
Hot Runner Heater |
Function: |
Heated |
Warranty: |
One Year |
Product Description
Hot Runner Control System Heater In Mold
Features of Product
1. Standard sizes available with various cross section;
2. Various Watt Density options available;
3. Design with Terminal Exits;
4. Available with built in Thermocouple;
5. Designed for even heat appearance.
Applications· Plastic Injection Machine
· Hot runner mold
· Plastic Extruder Machine
· Pipe Forming Machine
· Tube Extrusion Machine
· Industrial - Packaging Equipment

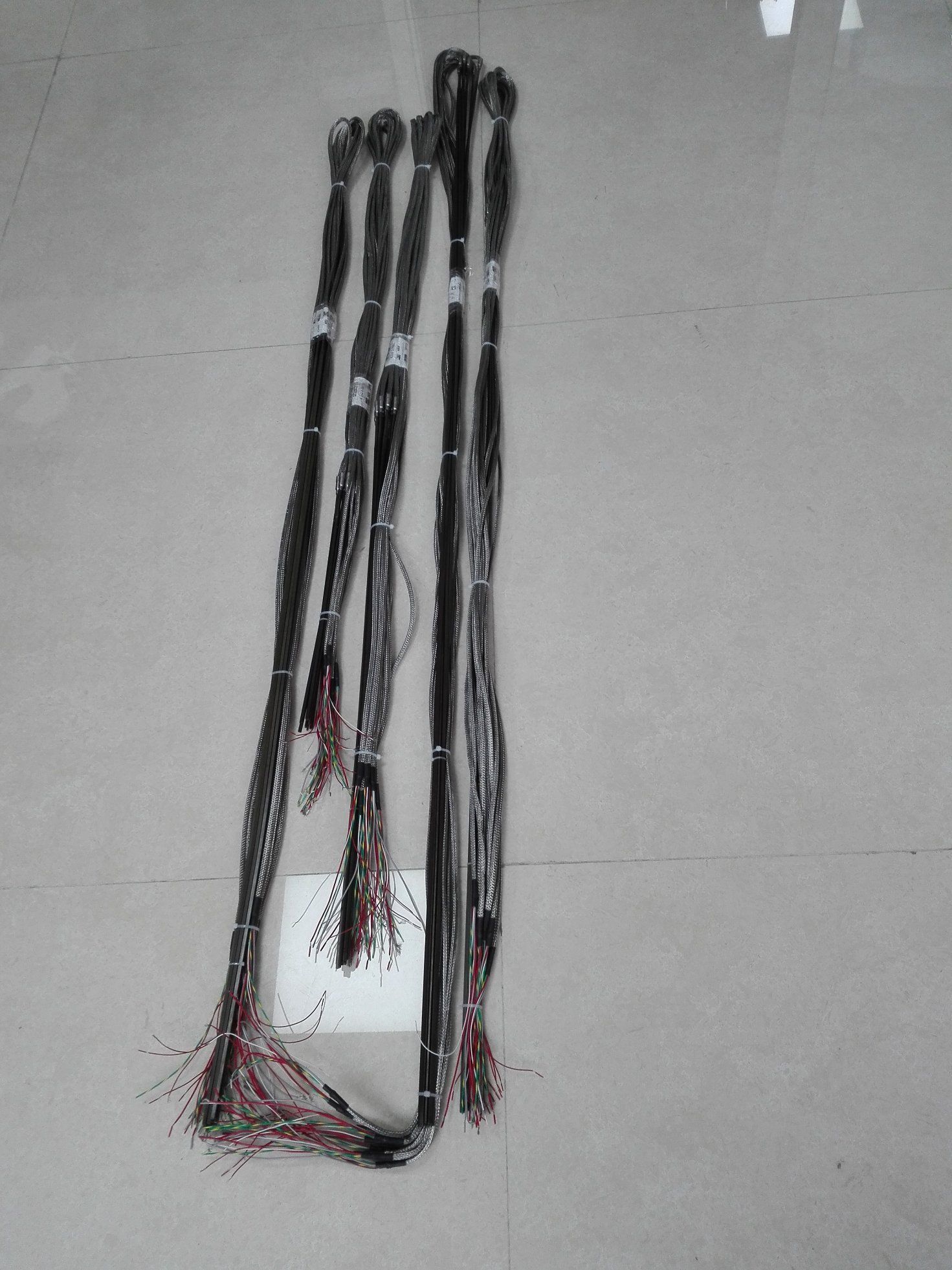

Product Shows
Technical Data
Sectional area | 3X3, 4.2X2.2, 4X2, 4X2.7, 4X2.5, 3.3X3.3, 3.5X3.5, 4 X 4, 2.2X1.3 |
Minimum ID | 8mm |
Sheath Material | SS304, SS310 |
Insulation Material | High Pure MgO |
Resistance Wire | NiCr8020 |
Maximum Sheath Temperature | 700°C |
Die Electrical Strength | 800V A/C |
Insulation | >5 M W |
Dimensional Tolerance | Coil I.D+0.1 to 0.2mm//Coil Length+1mm |
Wattage Tolerance | +10% (+5% Available Upon Request) |
Voltage | 12V~380V |
Wattage | 70W~1000W |
Build-in thermocouple | without or with J/K type thermocouple |
Sheath's length | 500/1000/1200/1500/2000mm |
Available sheath material | nylon, metal braided, fiberglass, silicone rubber, kevlar |
Sheath's color | standard is black, other color is also available |
Connector | without or with 5 pin xlr, 4 pin min xlr connector |
Connector's color | silver or fully black |
Packaging & Delivery
1. Packaging Details: Hot Runner Control System Heater In Mold
Export packaging : wooden box;
2. Delivery Time: 5-7 days after getting payment (According to quantity).
