Hot Sell Waterproof Motorcycle GPS Tracker with Free Tracking Platform

Hot Sell Waterproof Motorcycle GPS Tracker with Free Tracking Platform
Price: US $ 39-49/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: MT01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Free GPS Tracking Platform: Yes
Is Customizable: Yes
Warranty: 2 Years
GPS Chip: Ublox 7
GSM Chip: Quectel M35
Weight: 85g
Input Voltage: 9 ~ 38 VDC
Dimension: 105*60*22mm
Waterproof: Yes
Mileage Report: Yes

Product Description

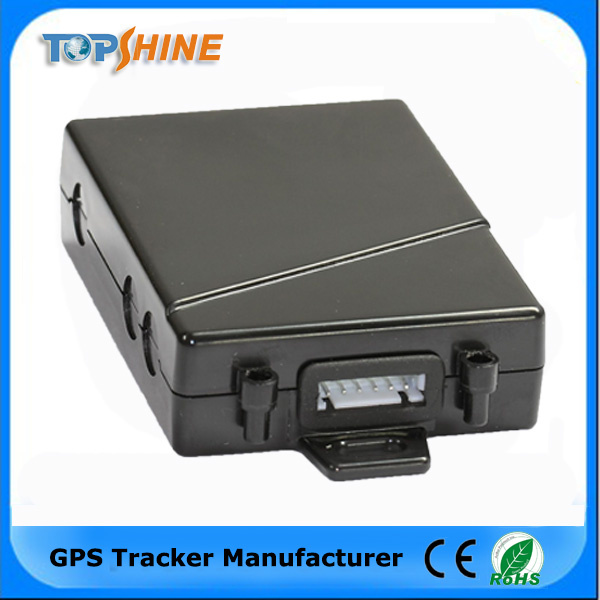

Waterproof Mini GPS Tracker with cut off engine remotely MT01

Products Overview:

MT01 is a kind of mini GPS vehicle tracking product can be used for tracking and security of automobile and motorcycle etc. Mini size, built-in antenna and waterproof desinged, easy to be installed, power voltage range from 6V-24V, therefore can satisfy basic tracking and security demands for all kinds of vehicles.



Specification:


ItemsSpecifications
Dimension80*58*22
Weight90g
ChargingVoltage+9V~+24V
SIM card type3V
Power
consumption
Active mode(peak) < 1.0A
Active mode(avg.) < 300Ma
Idle mode                <50mA


Operating
Temperature
-20~+75 Celsius degree
HumidityUp to 75% non-condensing
External AntennaConnected via 50 ohm coax connector
  External SIM CardConnected via SIM card connector
Button1SOS and 1poweron/off
MicrophoneOptional
Transmit PowerClass 4(2W) for E-GSM 900 and 850
Class 1(1W) for DCS 1800
Class 1(1W) for PCS 1900
Sensitivity-104dBm minimum for E-GSM 900 AND 850
-102dBm minimum for DCS 1800
-102dBm minimum for PCS 1900
GPSChipLatestGPSSIRF-StarIIIchipset
GPRSMulti-slot Class 8(4Rx, 1Tx., 5slot Max.)
Support all 4 coding schemes(CS-1,CS-2,CS-3 and CS-4)
Maximum download speed is 85.6kbps
Maximum upload speed is 21.4kbps
Speech CodecTriple rate Codec
Half rate_ETS 06.20
Full rate_ETS 06.10
Enhance full rate_ETS 06.50/06.06/06.08
I/O2 Digital Inputs (1positivetriggeringand 1negativetriggering)
2 Outputs

Packing Measures:
NeutralDimension (mm)Weight (KG)Capacity
Box165x155x500.251 set
Carton470x340x310930 sets


Functions & Features:

1. Original appearance design for this tracker
2. Integrated built-in GPS & GSM antenna, high sensitivity
3. Water-proof, compact size. Easy installation
4. Auto tracking by SMS/GPRS (TCP/UDP supported)
5. Can Locate and send SMS with Google map's link
6. Arm/disarm system by phone call or SMS
7. Geo-fence alert, over-speed alert, power cut-off alert
8. SOS panic button to call for help in case of emergency
9. Supported by GPRS01 or SMS01 platform, user can check the real address name(city, street, etc) by SMS or website
10. It can be used to upgrade the normal alarm
11. Power saves design with 800 mAh backup battery
12. Water-proof, compact size. Easy installation
13. Cut off egine in safe condition
14. Odometer function (=Mileage report)
15. Inbuilt 512Kb data logger
16.1 positive input, 1 negative input and 2 outputs
17. Simple installation, basic funtions, low price
18. Low cost tracker for 12V and 24V vehicles.


Solutions:

Low price of Car alarm + GPS tracker solution
Other customization function with MT01
For Motorcycle, Private car, Car rental/leasing company tracking & security, Fleet management etc.

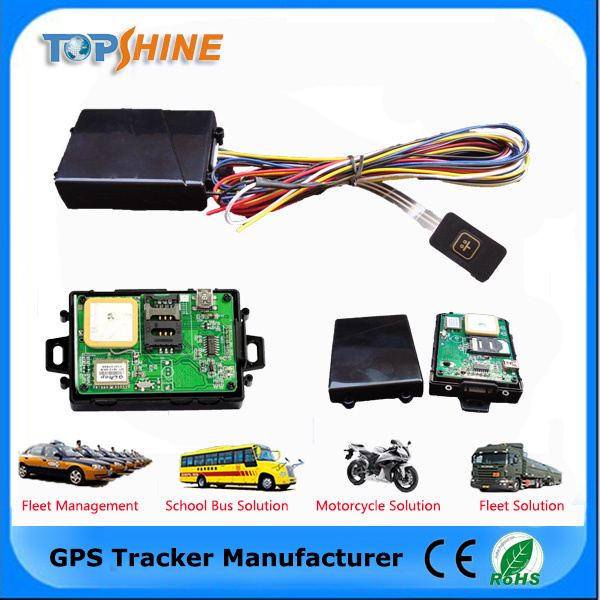

Complete Set:
Standard Package:
Main unit
Wire cables 1 PCS
Relay 1 PCS


Optional Accessories:
Speical USB cable

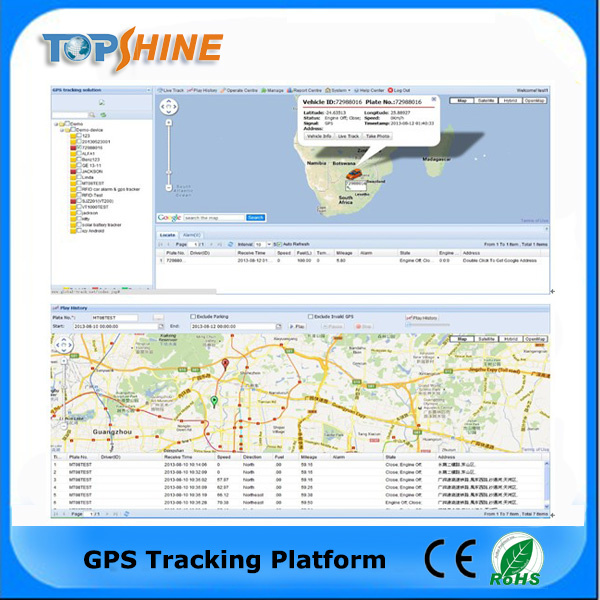

Topshine company provide 2 free tracking platform (web based and mobile APP)
Welcome to test our free tracking software:

Tracking platform site: www.track-car.com
Username: hongkong
Password: 123

Tracking platform site: www.tstrack.net
Username: test1
Password: 123

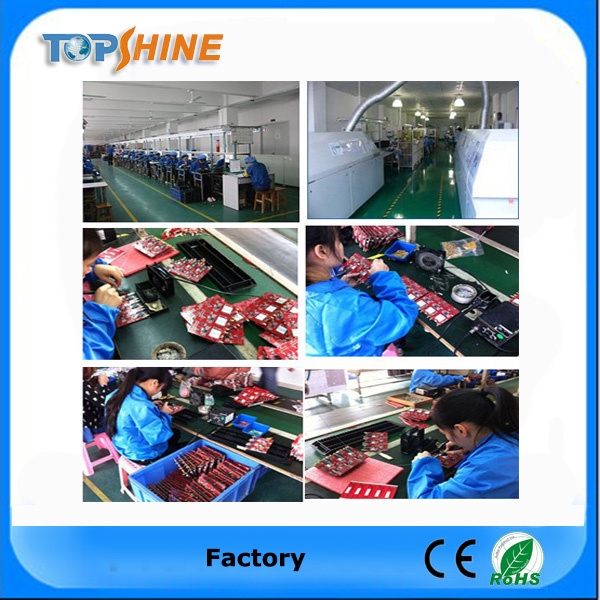

Our factory:

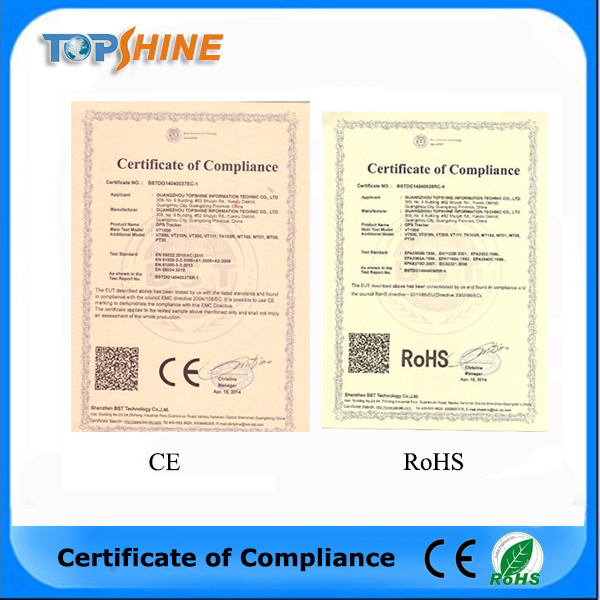

Certification:


What can we do for you:

* Provide 2 free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.


Payment & Shipment:

Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMX
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.

Inquiry Now!!



Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.

Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.

With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.

TOPSHINE provides a proprietary system to help clients manage their fleet and asset.

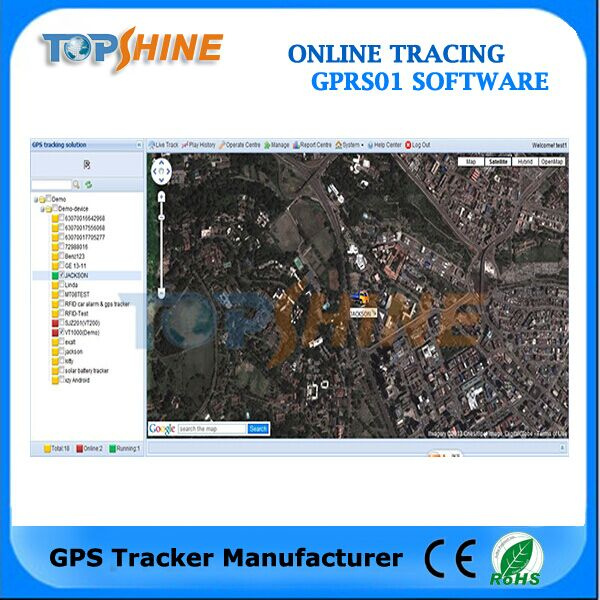

Our proprietary software, Platform GPRS01, allows our clients who rely on a fleet of

Vehicles to transport their goods or clients with valuable moveable assets, to monitor

Their assets thus minimizing the risks associated with their investments, increasing

Efficiency and productivity, and minimizing logistics and manpower costs. Real-time

Information can help with effective decision making, thus improving your company's

Performance and reducing overall costs.

We currently serve over 100 major customers and our clients come from various

Industries with unique demands or operational requirements. We can customise our

System to cater to our client's needs. In our ever-growing network of connected

Devices, our fleet can be monitored from anywhere with our mobile applications. Our

Services cover Hong Kong, China and cross border fleets.

Professional Consulting Services

With years of service experience, we have built up a good reputation and a strong

Professional team to provide strategic solutions and technical advice in fleet

Management. We work closely with all our clients to define their problems and

Expectations and tailor the best solution to solve their fleet management problems.

Our role is more than a technology provider who is assisting you to drive your

Business to be more profitable and competitive.

Customer Integration Services

Our team will support you as you work to integrate the GPRS01 system into your

Operations. We provide complete servicing from the installation to the maintenance of

Each tracking unit. A member of our customer support team will help coordinate the

Times and location for unit installation and demo/training times at your convenience,

While you, our client, can concentrate on managing your business.

On-Site Training Services

Once we have installed our units in your fleets, a training session will be arranged to

Familiarize all necessary parties with the software. We also provide a customer service

Help desk to assist you should you have any further questions. Our strong customer

Service team will ensure you understand the system and can put it to good use.

Customer Care Services

Customer satisfaction is a critical element for us. We care about our clients' needs,

Ideas and opinions. We make sure our products and services satisfy or exceed our

Client's expectations.
