| Prod Model: |
TMCM24 |
| Lead Time: |
10days |
| Rated Voltage Range: |
4V-50V |
| Capacitance Tolerance: |
+/-20% |
| Capacity Range: |
0.1-1000UF |
| Type: |
Aluminum Electrolytic Capacitor |
| Application: |
General Purpose |
| Package Type: |
Surface Mount |
| Capacitance: |
50-100uf |
| Tuning: |
Electrolytic Capacitor |
Product Description
Specifications
Price
Product Features
Prompt Delivery
Quality Approvals
Service
Capacitor

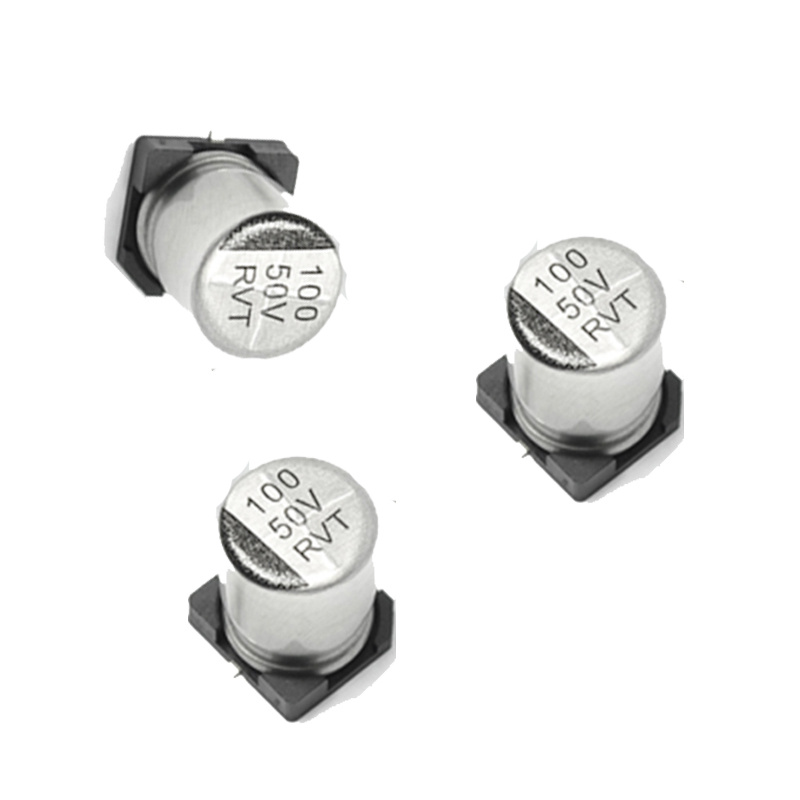

Standard SMD Aluminum Electrolytic Capacitor
Key Specifications/Special Features:
Operating temperature range: -40 to +85 degrees Celsius
Rated working voltage: 4 to 100V DC
Nominal capacitance range: 0.1 tp 1, 500uF
Capacitance tolerance (120Hz 20 degrees Celsius): +-20%(M)
Leakage current: <= 0.01CRUR or 3uA, whichever is greater (after two minutes application
Of rated voltage)
CR: Nominal capacitance (uF) and UR: Rated voltage (V)
Dissipation factor (120Hz 20 degrees Celsius):
UR (V) 4, 6.3, 10, 16, 25, 35, 50, 63 and 100
Tand <= O8, 0.35, 0.26, 0.20, 0.16, 0.14, 0.12, 0.12, 0.12 and 0.10
>= O8, 0.35, 0.28, 0.24, 0.20, 0.16, 0.14, 0.12, 0.12 and 0.10
Load life: After 2, 000 hours application of WV at +85 degrees Celsius
The capacitor shall meet the following limits
Capacitance change: <=+-20% of initial value (4V: Within +-25%)
Dissipation factor: <= 200% of initial specified value
Leakage current: <= initial specified value
Shelf life: After storage for 1, 000 hours at +85 degrees Celsius
Dissipation factor: Not more than the initial specified value
Leakage current: Not more than the initial specified value
Capacitance change: Within +-10% of the initial value
Product Certifications:
Certificate Standard: SGS
Certificate Number: GZSCR041248032/LP
Issue Date: 24-Dec-2004
Certification Agent: SGS-CSTC Ltd
Certificate Standard: UL
Certificate Number: E166700/03CA23659
Issue Date: 15-Sep-2003
Certification Agent: Underwriters Laboratories Inc.
Certificate Standard: VDE
Certificate Number: 40012049
Issue Date: 27-Oct-2004
Certification Agent: VDE Testing and Certification Institute
Certificate Standard: RoHS
Certificate Number: CQC06130017473
Issue Date: 08-Sep-2006
Expiry Date: 07-Sep-2007
Certification Agent: China Quality Certification Centre
Packing: Tape and reel
