Product name:Split Controller Noise-Free Controlling Application-HTW-61-EW001 Series
Item:HTW-61-EW001
General Hotowell Manufacturers Temperature and Humidity Controller For HVAC Contractor Controler Project Price(HTW-61-EW001) is a Noise-Free room climate controller application for waterinstallations with fan coils. It is designed as a stand-alone device to operate the fan coil unit of a zone and includes a set of functions for zone occupancy and window position based climate control.
A high level of comfort and appropriate climate control to ensure maximum energy savings are thus provided.

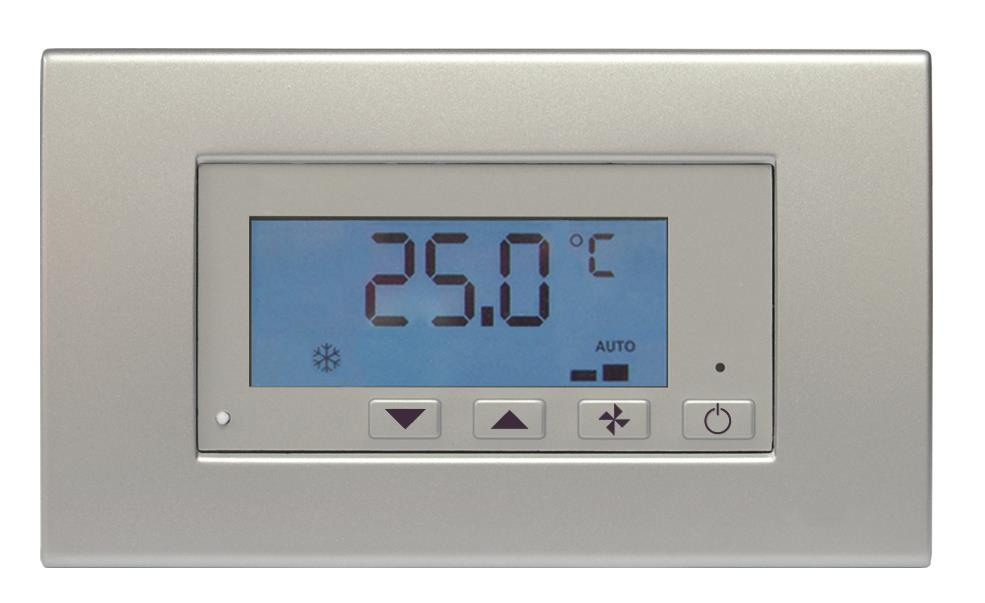

The device is a compact unit that includes a large backlit display screen, a built in temperature sensor, pushbuttons on the front panel, and inputs and outputs built on split remote relay module for room control.

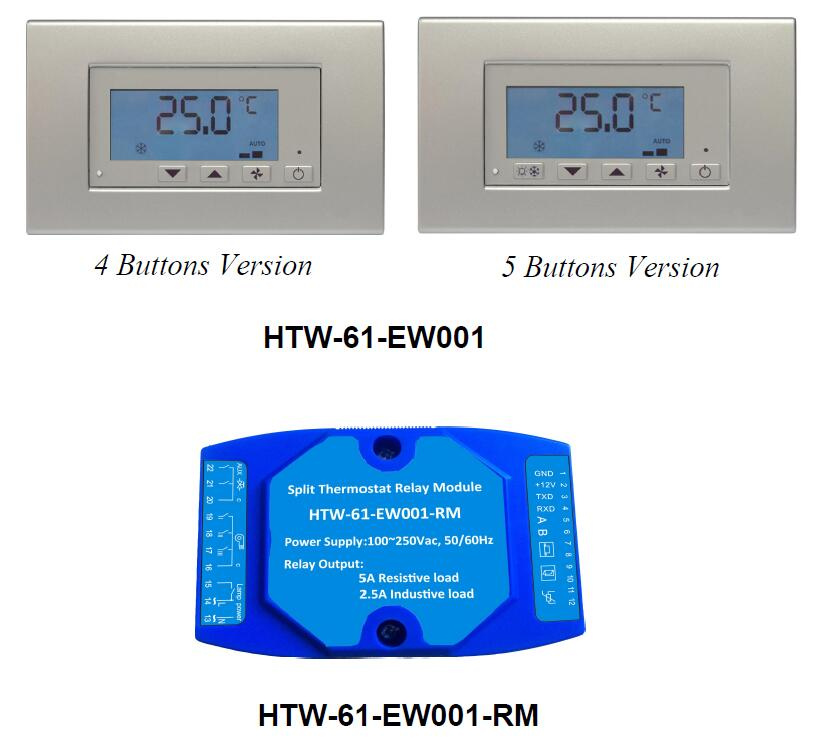

This split thermostat application includes two parts:
HTW-61-EW001
HTW-61-EW001-RM

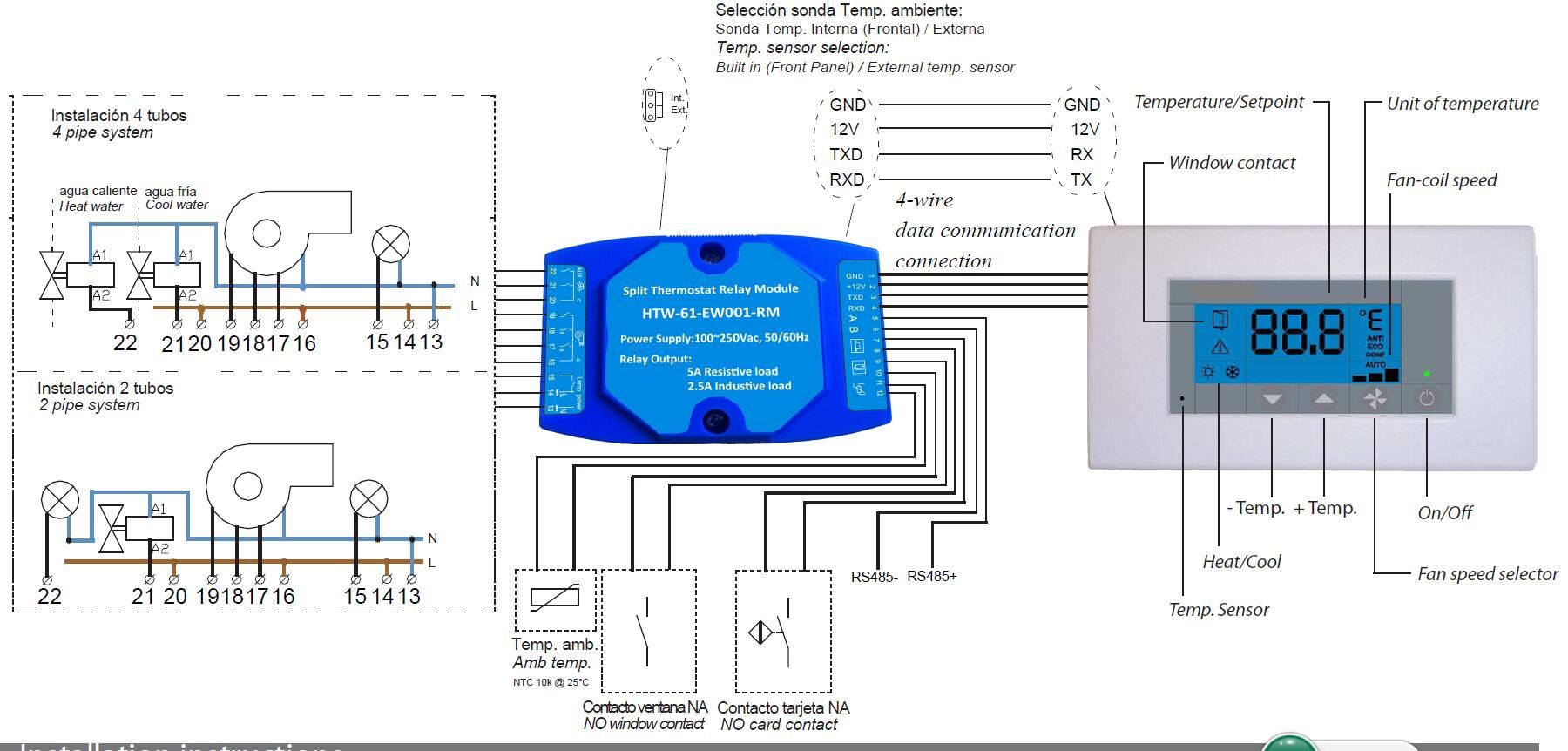

These two parts are communicated via 4-wire connections:
-GND
-12V
-TXD
-RXD
It provides a totally Noise-Free application due to its remoted relay module, which can be placed up to 30 meters far away from the control display panel. General features - Wide, blue backlit LCD, 64 × 26 (mm)
- Front panel built in pushbuttons: +T/-T/Fan speed/On-Off
- Front panel built in temperature sensor
- Two models available: 4 or 5 pushbuttons (HEAT/COOL)
- Configurable for 2 pipe / 4 pipe systems
- Selectable temperature units (ºC/ºF)
- Configurable max/min/economy temperature setpoints
- Keycard switch contact occupancy monitoring for energy saving
- Configurable keycard switch input: keycard switch/lighting
- Configurable fan coil: 3 speeds / 1 speed
- Speed 1 configurable as blocked or unblocked on zero demand
- Economy mode Heat/Cool temperature setpoint Heat/Cool dead band
- Delayed switching to Economy when card is removed
- Automatic device startup after loss of power
- Configurable NO/NC valve outputs
- Connfigurable anti-humidity frequency:10/30,5/30,5/60
- Noise-Free application
Device Inputs and Outputs Inputs:
1 Digital, keycard switch contact / lighting auxiliary contact
1 Digital, window contact
1 Analog, ambient temperature external sensor
1 Temperature sensor, built in on device front panel
Outputs:
3 Relays, fan coil speed (I,II,III)
1 Relay, chilled water valve
1 Auxiliary relay (hot water valve on 4 pipe systems / lighting on 2 pipe
systems)
1 Auxiliary relay for lamp
Technical ParametersModbus ParameterNo. | Parameter | Protocol provision |
1 | Operating Mode | RS-485 connection, master-slave |
2 | Physical Interface | RS485 A(+),B(-) 2-wire system |
3 | Baud Rate | 4800 |
4 | Byte Format | No Parity bit, 8 Data bit,1 Stop bit |
5 | Transmission Mode | RTU format |
6 | Thermostat Address | 1-255 |
7 | Command Code | 03-read data, 06/10-set data |
8 | CRC Check Code | CRC-16 |
9 | CRC Verification Mode | CRC-16 |
Q1:What is the unit price?
A.:The unit price varies according to different specific requirements, we are more than pleased to quote you the best price once
get your specific application. e.g. W/O Modbus, W/O key-card, 2/4 pipe system, W/O customized programming...
Anyway, we are always ready to discuss details with you via Email.
Q2:What is the MOQ, small quantities accetaple?
A.: Commonly the MOQ for us is 500pcs, however, we also accept small quantities or Sample orders as starting.
Q3:How is your products' quality and warrenty?
A.:All of our products meet EU standards, samples are available for quality evaluation; all products are with 18 months warrenty.
Q4:Can I print my logo on the products, and customize my own designed packing?
A.:100% YES, but the order quantity shall be over MOQ, or else, extra costs will be charged.
Q5:Do you supply OEM or ODM?
A.:Yes, we have strong R&D sources and production ability, and already helping many international companies OEM/ODM cases with highly positive feedback.
Q6:Why should I buy products from your company?
A.:That's really a good question, Quality Products but with Competitive Price, Timely Delivery, Professional and Fast Reacton, ...
In a word, WE ARE DIFFERENT, why not just try from the Email...
