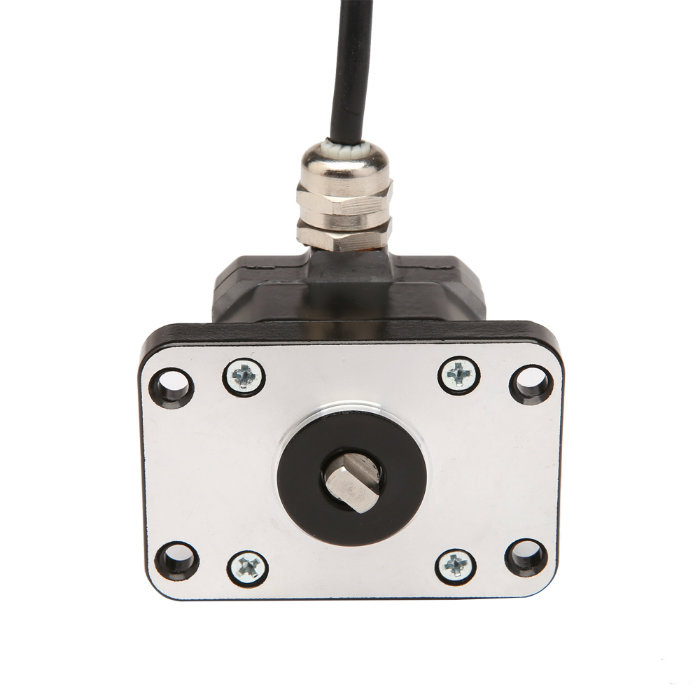

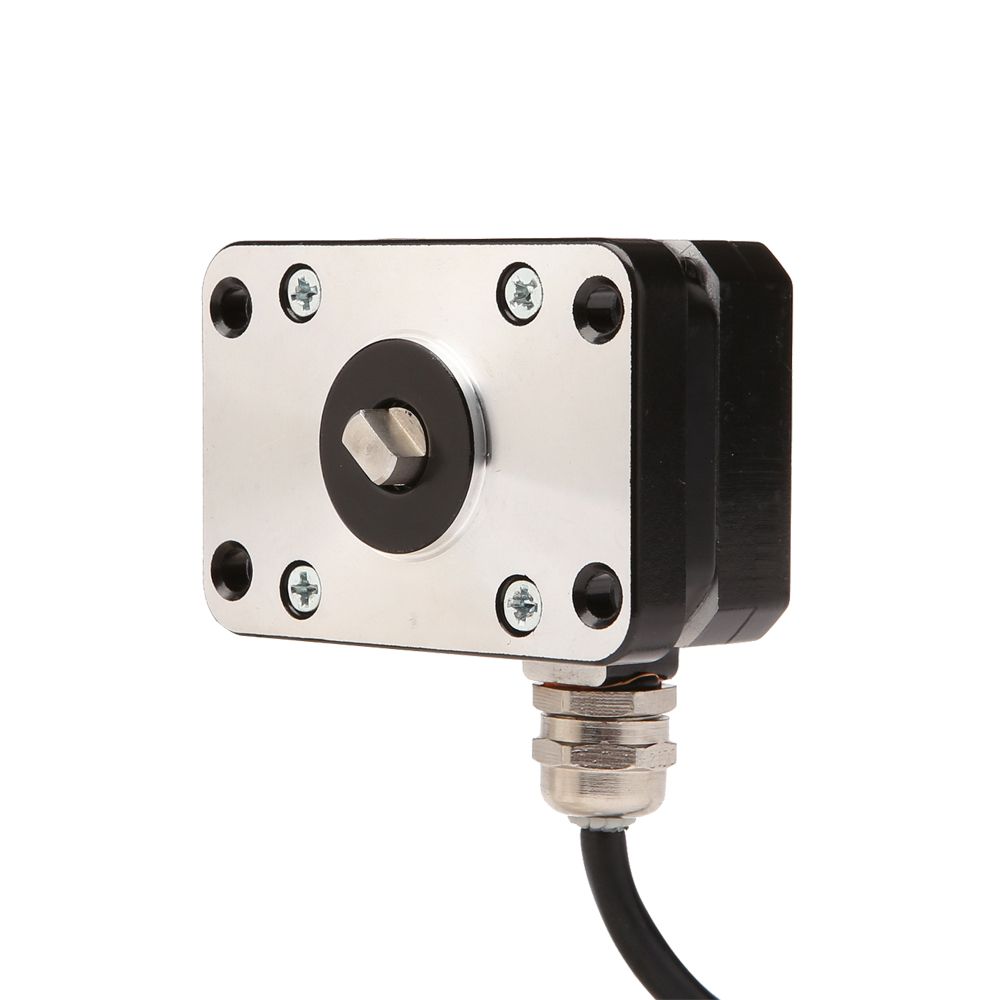

Hybrid 0.9 Degree Waterproof Stepper Motor NEMA 17

Name: Hybrid 0.9 Degree Waterproof Stepper Motor NEMA 17
Brand: all-electronics-online.com
SKU: 838255925
Availability: InStock
Rating: 4.3 (103 reviews)

Price:	US $ 10-15/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Description
1. NEMA 17 stepper motor, high performance, low heat, low noise.

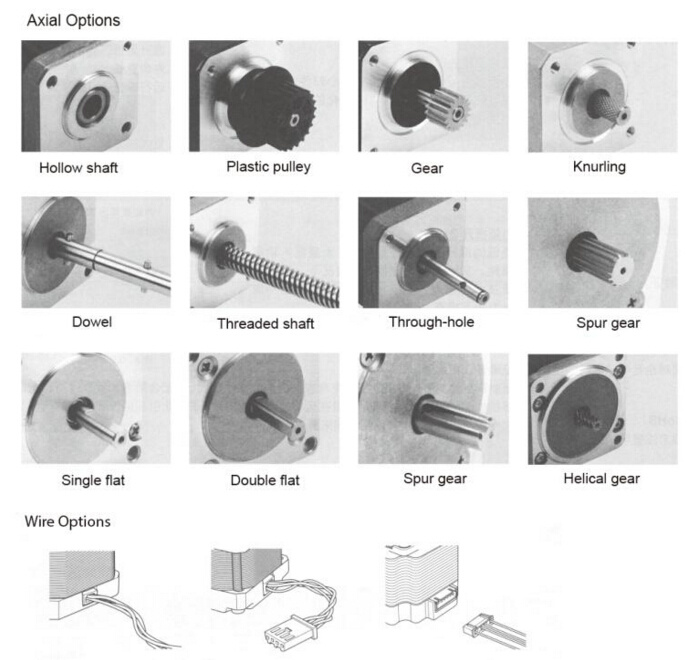

2. Performance and parameters can be customized, just simply send your motor diagram or samples to us, the competitive price will be sent to you for your reference.

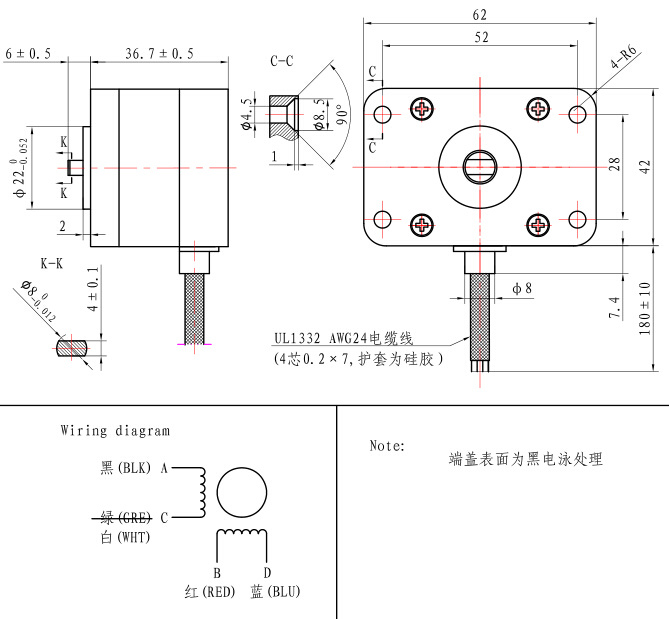

Motor Drawing

HYBRID STEPPER MOTOR 42SHB4305-6B Casun
General Specification		Electrical Specification
Step Angle	0.9°	Rated Voltage	6.4V
Number of Phase	2	Rated Current	1.28A
Insulation Resistance	100MΩmin. (500V DC)	Resistance per phase	5Ω±10%
Insulation Class	Class B	Inductance per Phase	10mH±20%
Rotor Inertia	24g.cm²	Holding torque	240mN.m
Mass	0.18kg	Detent torque	8mN.m

Packing&payment&Delivery

Payment Term	T/T, PayPal, Western Union, Cash, Escrow
Accepted Payment Currency	USD, CNY
Packaging Detail	cusomized packages, carton box with foam
Delivery Detail	10 Day(s)
Delivety Port	huangpu,luogang,guangzhou
Accepted Delivery Terms	FOB,CIF,EXW

Prod Model:	42SHB4305-6B
Holding Torque:	240mn.M
Current:	1.28A
Voltage:	6.4V
Key Words:	Flat Stepper Motor
Mass:	180g
Resistance:	5
Samples:	Can Be Customized
Frame Size:	42*36mm
Step Angle:	0.9
Model:	42shb4305-6b
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Application:	SMT
Operate Mode:	Two-Phase Bipolar
Certification:	Ce, RoHS
Brand:	Casun

Guangzhou Fude Electronic Technology Co., Ltd, has over 10 Years Manufacturing Experiences. It is a manufacture of stepper motors with well-equipped testing equipment and strong technical force.

It is located in Baiyun district, Guangzhou city with more than 7000 square meters.

Quality is our culture. Our manufacture gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D Dept., Engineering Dept., Production Dept., Marketing Dept., After-sales services Dept. And Personnel Dept.

To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!

Our Core Competencies are Hybrid stepper motor, Reduction Gearbox Stepper Motor, Linear stepper motor, Stepper Motor Driver!

Our value Message is with us your money in safe your business in safe!

Please dont hesitate to contact us to get more details, we are waiting for you!
