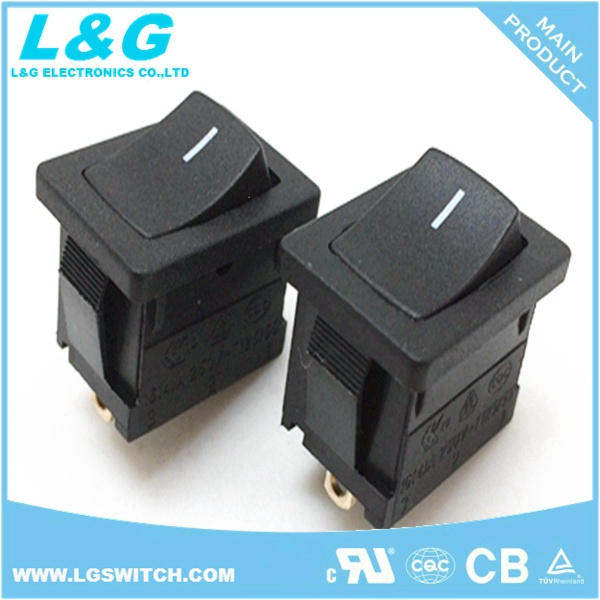

I/O 2 Position Rocker Switches
| Price: |
US $ 0.18-0.25/Piece |
| Min Order: |
2000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Description
Bookmark / ShareX
LinkedinRedditDeliciousStumbleUponDigg
Product Description
Brand name: Legion
Model number: Ss 21
Min. Order quantity: 200 piece(s)
Price term: FOB
Port: Hk or negotiate
Price: Negotiable
Payment terms: L/C, T/T, western union
Production capacity: 400000piece(s) per month
Delivery time: 15 days
Packaging details:
Packaging
400PCS in a small box with the size 350*210*145mm.
1200PCS in a big carton with the size 380*230*450mm
All the goods will be packed by PVC box.

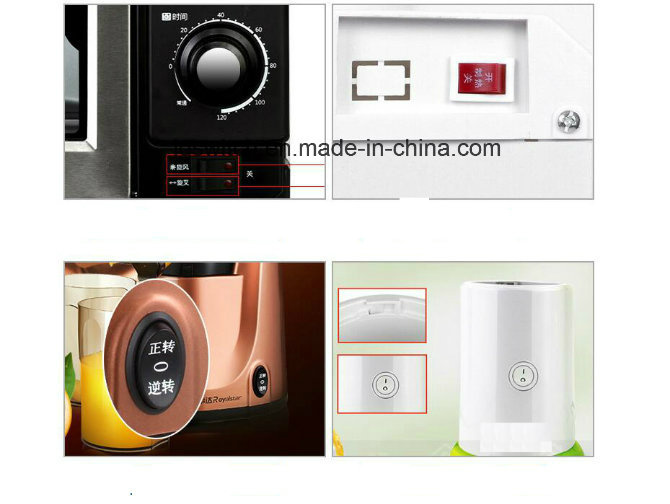

Brief descriptionrocker switch: Used for ATX switching power supply, monitor, power strip, copier, fax machine, audio, office equipment etc
Product attributesplace of origin: Guangdong China (mainland)brand name: Legionmodel number: Ss 21max. Current: 14amax. Voltage: 250vacmechanical life: 10000housing color: Black, blue, white, red, grey, ...Lamp: with, withoutrohs: Withfunction: Momentary, spst onlypanal size: 19.2/19.4/19.8*12.9mmcertificates: UL, CSA, VDE, enecactuator color: Black, blue, white, red, grey, ...Detailed descriptionrocker switch
Specifications & features:
Rating: 10A 125/250vac(cUL); 12A 125/250vac(cUL); 12(4)a 250V-t85/55(VDE, ENEC10)
Initial contact resistance: 20 max.
Insulation resistance: 100mω Min. 500vdc
Withstand voltage: 1000vac for 1 minute
Operation force: 500± 200 gf
Endurance: 10, 000 cycles
Material:
Terminal base: Nylon 66(UL 94V0)
Actuator: Nylon 66(UL 94V-0)
Spring: Stainless steel wire
Contact: Copper pickling
Terminal: Brass/silver plated
Sample:
1. Free charge sample: Could provide(less than 10 PCS),freight collect
2. Samples time: Need 3-10 days to preparing the samples after receiving the payment.
3. Samples payment term: T/T, PAYPAL, Western union
Quality Guarantee:
1.Strictly quality control before leave factory
2. Quality guarantee within one year
Advantage:
1.Low MOQ: 50~100PCS
2.New design Accepted: As your requirement
3.Good Service: Customer as God
4.Good Quality: Strict quality control and good reputation
5.Fast & Cheap Delivery: Big discount from express agent (Long-term Contract)
Order Guide:
1. Inquiry-Professional quotation. |
| 2. Confirm the price, lead time, packing requirement, payment term etc. |
| 3. OMTER sales send the Proforma Invoice with OMTER seal. |
| 4. Customer make the payment and send us Bank receipt. |
| 5. Will inform client that we have got the payment, arrange the production & inform the estimated time. |
| 6. After delivery will inform the tracking number and check the status for clients. |
7. Feedback to TALL about Quality , Service, Market Feedback & Suggestion. And we can do better .
|
| Prod Model: |
SS11 |
| Rating: |
12A 125/250VAC(cUL); 12(4)a 250V-T85/55 |
| Withstand Voltage: |
1000VAC for 1 Minute |
| Operation Force: |
500+/-200 GF |
| Endurance: |
10, 000 Cycles |
| Size: |
19*13 |
| Usage: |
Toys |
| Standard: |
Standard |
| Lamp: |
Without Lamp |
| Color: |
Black |
| Certification: |
CQC,UL,VDE,Nemko |
| Condition: |
New |
Dongguan Guanjun Electronic Technology Co., Ltd. Was established Taiwan in 1993. The factory in China mainland was established in 2007 and the HongKong office L&G ELECTRONICS Co., Ltd Was established in 2014. We turned into a manufacturer engaged in the R&D, manufacture and trading company of switches, Thermal protector, potentiometer and jacks.

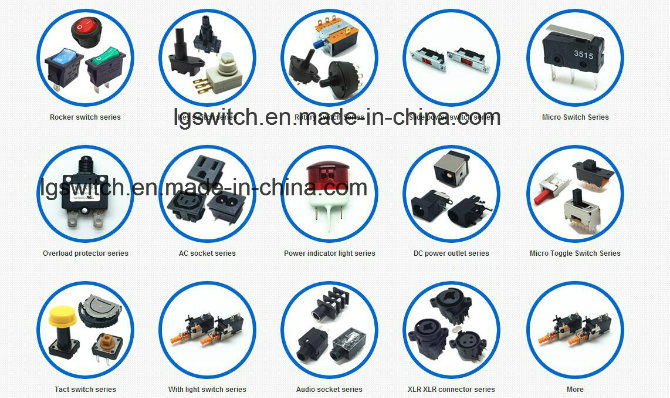

Its leading products include switch products like Motor Thermal protector, power switch, rocker switch, trigger switch, micro switch, toggle switch, key switch and rotary switch, potentiometer etc.; And the jack/socket products like AC/DC jack, AV terminals, S-terminal and USB head and socket, etc.
The products are widely used for lighting decoration, toys, cold and hot fans, dust cleaner, vibrator, peripheral computer device and various video and audio products, electronic appliances, electronics, instrument and medical equipment.
After the development for a dozen of years, the company has turned into a corporate with powerful technology forces, self-contained production and testing equipment and complete quality assurance system; All operating procedures comply strictly with ISO9001 and ISO14000 Standards.
" It is our objective to innovate with science and technology, keep improving and launch sound services, We expecting the manufacturers and people from all walks of life for mutual refulgence.
