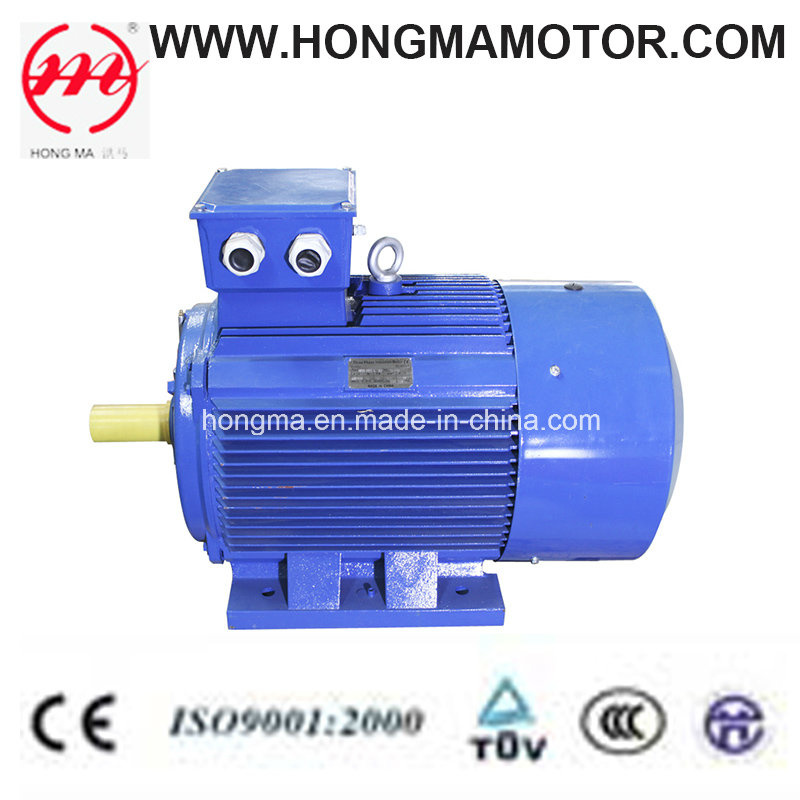

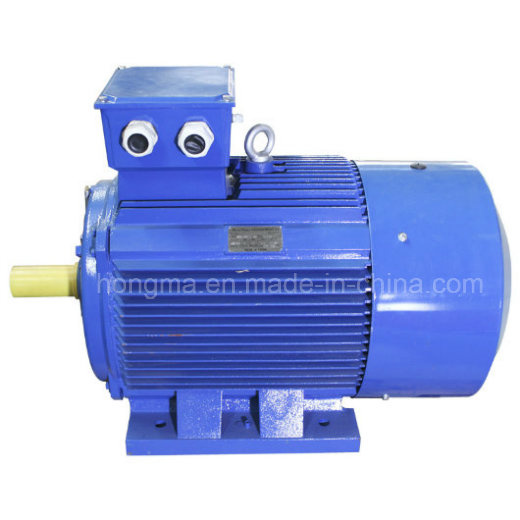

Ie3 Cast Iron Series Three Phase Asynchronous Induction High Efficiency Electric Motor (3HMI 315L1 4 160)
| Price: |
US $ 2865-2935/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
IE2 Cast Iron series three phase high efficiency electric motor with beautiful appearance and reliable operation meet to the needs of general-purpose at
domestic and overseas within the range of frame size 56 to 355.
IE2 Cast Iron series three phase high efficiency electric motorare designed
of high efficiency, energy saving, high quality performance, small vibration,
low noise, long life, high reliability, easy maintenance and large start torque,
etc.
IE2 Cast Iron series three phase high efficiency electric motorare widely used
in mechanism facility without specific requirement: agriculture equipment,
food machinery, fans, pumps, machine tools, mixers, air compressors, etc.1. 100% output with 100% copper winding;
2. Hongma customer's requirement & customer's drawing;
3. Different size of flange to fit for different device, customized flange is workable.
4. All materials are brand-NEW.
Technical Data| Frame Size | 315mm |
| Frequency | 50HZ |
| Output Power | 160KW |
| Voltage | as User Requirment |
| Insulation Class | F |
| Protection | IP55 |
| Cooling Method | IC411 |
| Wire | 100% Copper Wire |
| Connection Type | Delta connection |
| Pole | 4 |
FENGHUA CITY ELECTRICAL MOTOR CO., LTD
Add: NO.4 Changhe North Rd, Fangqiao, Fenghua, Ningbo,
Zhejiang Province, P. R. CHINA
Tel: +574 55339278
Fax:+574 8865 0988
Mob: +86 15867838828
Website: www.hongmamotor.net
| Prod Model: |
3HMI 315L1 4 160 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size: |
315mm |
| Frequency: |
50Hz |
| Output Power: |
160kw |
| Voltage: |
as User Requirment |
| Insulation Class: |
F |
| Protection: |
IP55 |
| Cooling Method: |
IC411 |
| Wire: |
100% Copper Wire |
| Connection Type: |
Delta Connection |
| Number Of Stator: |
Three-Phase |
| Function: |
Control |
| Certification: |
CE |
| Brand: |
Hongma |
Located in Ningbo City, an open seaport of China, we are one of the main manufacturer specialized in the manufacture of small & medium size electrical machinery in China. With a powerful scientific and technical force, advanced developing mode, high efficiency production facilities, complete testing conditions and consummate modernized management system, our company manufacture all the products in conformity with the IEC standards and the products have been reached the advanced level of the same products in the world. It has obtained the quality license for export electrical machinery, the ISO 9001: 2008 Quality Management Certificate, CE conformity and China CCC authentication. What's more, we have obtained direct importing and exporting rights which are approved by Chinese government.
Company's main products are: 1HM Series Three Phase Asynchronous Electric Motor, 2HM Series High Efficiency Electric Motor, 3HM Series Premium Efficiency Electric motor, HM Series Large Power Electric Motor, ML/MU/MY/MB Series Singe Phase Asynchronous Motor, HMD Variable Speed Motor, HMEJ(AC) Series Self-Braking Electric Motor (AC), HMEJ(DC) Series Self-Braking Electric Motor (DC), HMVP Series Integrated Frequency Inverter Motor, ST Series Servo Motor, HMG Series Screw Compressor Motor, HMP Series Pump Motor, GOST R standard Motor and UL NEMA Standard Motor.
We are looking for new distributors and agents in the whole worldwide to expand our sales network. Welcomes contact us to build business relationship and friendship.
