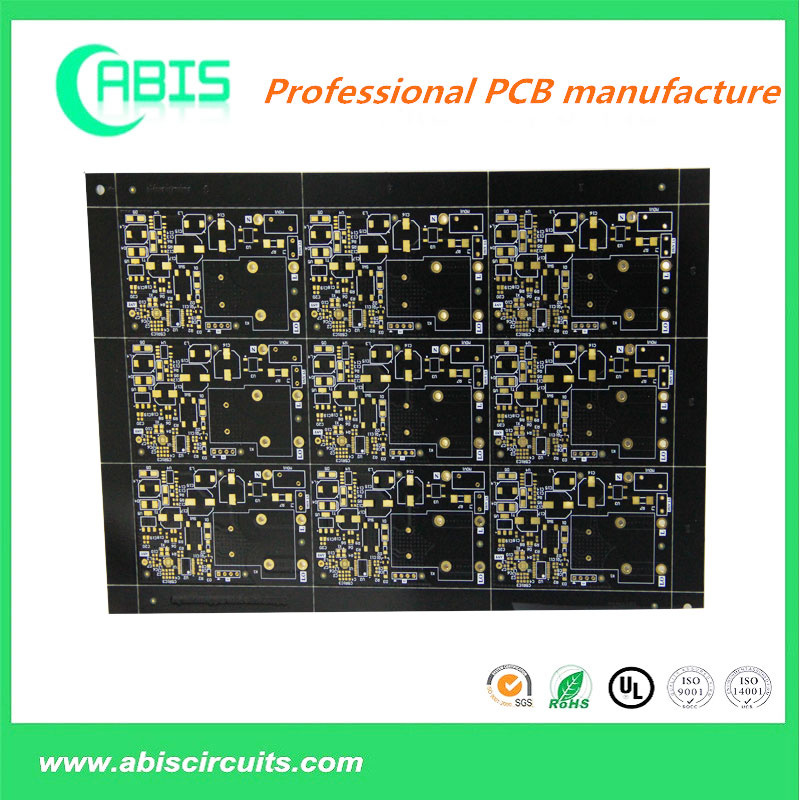

Immersion Gold Board with Black Ink
| Price: |
Negotiablepiece |
| Min Order: |
1piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
PCB46 |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
| Brand: |
Abis |
Product Description
ABIS CIRCUITS CO., LTD
Created in 2006,as a long history China based PCB supplier, ABIS manufactures different kinds of printed circuit boards, including MCPCB,CEM-1,CEM-3,and FR4,FR-4 high Tg, Rogers, Teflon, Arlon ets special material.

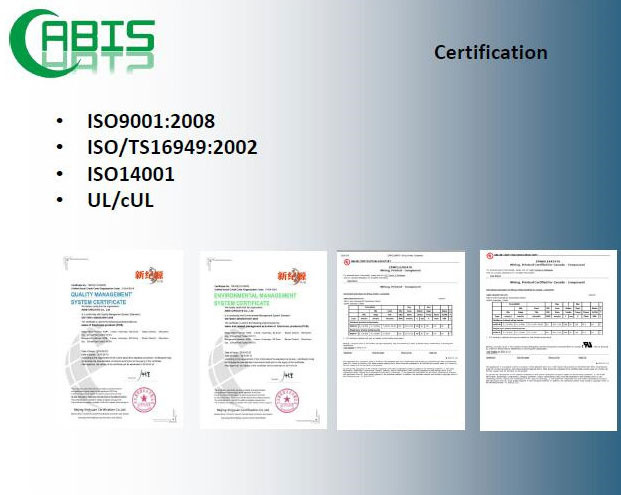

ABIS has set up two PCB factories in China: one for MCPCB producing, quick turn and small volumn making, and another for mass production. Currently, ABIS modern plants occupy total 10000 s.q.m facility, with more than 1100 stable and experienced workers. Professionalism and continuous optimization of manufacturing processes have positioned ABIS as a reliable and favorite partner for global companies.Certifications

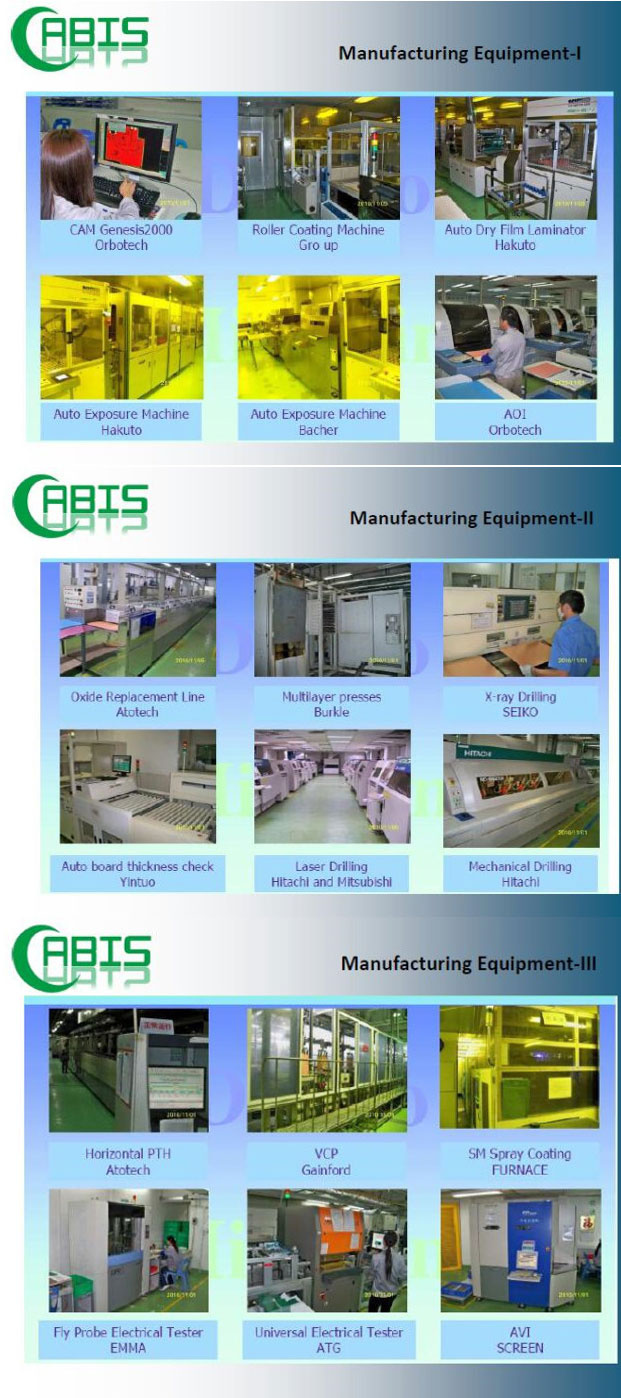

Factory and equipments
Hot sales
| Layer | 1-20 layers |
| Material | FR-4,CEM-1,Aluminum base,Copper base,FR-1,CEM-3,High TG,FR4 Halogen Free, Rogers, TEFLON etc. |
| Board thickness | 0.2mm-6mm(normally 1.6mm) |
| Max. board size | 1200*600mm |
| Finished board thickness | 0.3-5mm |
| Min .drilled hole size | 0.1mm |
| Min. line width | 0.1mm(4mil) |
| Min. line space | 0.1mm(4mil) |
| Surface finish/treatment | HASL, lead free HASL ,Immersion Gold(ENIG),Immersion Tin ,Immersion Silver, OSP, Gold plating, Gold Finger, Carbon Ink, Peelable mask |
| Copper foil thickness | 18um-280um(0.5OZ-8OZ)(normally 1OZ) |
| Solder mask color | green/black/white/red/blue/yellow |
| Outline Tolerance | ±0.13mm |
| Impedance control Tolerance | ±10% |
| NPTH Hole Tolerance | ±0.075mm |
| PTH Hole Tolerance | ±0.05mm |
| Certificate | UL,ISO9001,ISO14001,SGS |
| Profiling punching | Routing, V-CUT, Beveling |
| Production capability | 720000M2/year |
About Service1 Hour quotation
2 hours complaint feedback
7*24 hour technical support
7*24 order service
7*24 hour delivery

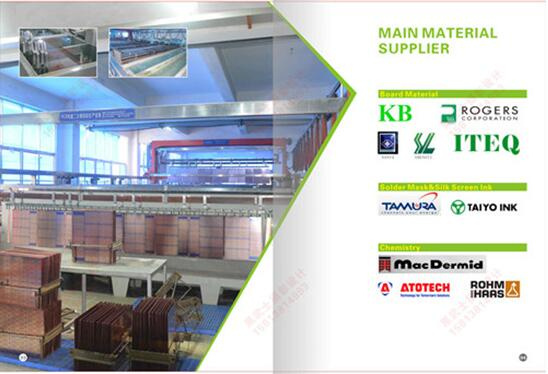

7*24 production runMaterial Suppliers
FAQQ1:When can I get the quotation?
A:We usually quote with 1 hour after we get your inquiry. If you are very urgent, please call us or tell us in your email.
Q2:Can you provide free samples for me?
A:Free samples depend on your order quantity.
Q3:I am a small wholesaler, do you accept small order?
A:It's no problem. If you're small wholesaler, we would like to grow up with you together.
Q4:How many days will samples be finished? And how about the mass production?
A:Generally 2-3 days for samples making. The lead time of mass production will depend on the order quantity and the season you place the order.
Q5:If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
Q6: How can we know the processing about PCB order?
A: Each Customer will have a sale to contact with you. Our working hours: AM 9:00-PM 19:00(Beijing Time) from Monday to Friday. We will reply your email as soon as quickly during our working time. And you also could contact with our sales by cellphone if urgent.
Q7:Can I have samples to test?
A: Yes, we are pleased to supply module samples to test and check quality, mixed sample order is available. Please note buyer should pay for shipping cost.
Q8:Can you design pcb and make files for us?
A:yes,We have a professional drawing engineers' team that you can trust.
Q9:If all pcb , PCBAs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of pcb, PCBA will be tested before shipment, we ensure the goods we sent with good quality
Q10:What is the shipping method?
A:We suggest you using DHL, UPS, FedEX, TNT forwarder.
Q11:How about the payment terms?
A:By T/T, Paypal, Western Union, etc.
Why choose us?·With ABIS, customers significantly and effectively reduce their global procurement costs. Behind each service provided by ABIS, is hidden a cost saving for customers.. We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback.
Please keep us informed for any interestes!
ABIS cares every your order even 1 piece
Abis Circuits Co. Ltd, established in 2006, Located in shenzhen, our company has about 1100 workers and two PCB workshops with about 50000 square meters. Our products are mostly used in the field of testing, computer, medical equipment and military, and have good performance in all kind of functional test. Our perfect management, advanced equipments, and professional staffs are the keys for us to fight to win more market shares with other competitors. Customer's satisfaction and support are what we have been strived for.
Now we have passed ISO9001, SGS and UL certificates. With constant hard work of our staff and ongoing support from customers both home and abroad, we can provide up to 20 layer, Blind and buried Board, high-precision(Rogers), High TG, Alu-base and flexible boards to our customer with fast turn and high quality level.
With more than 10 years experience in international business, we have abtained over 500 customers in the world, We sincerely appreciate trust and support from our new and old customers home and abroad all the time. At this time when global economy is development rapidly, we do hope to cooperate with all the friends to make a more brilliant future.
