Inductive Proximity Sensor Swich Lm18

Inductive Proximity Sensor Swich Lm18
Price: Negotiable/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: LM18-3005LA
Output: No
Detection Mode: Inductive
Detection Distance: 5mm
Certificate: Ce
Voltage: 6-36VDC

Product Description

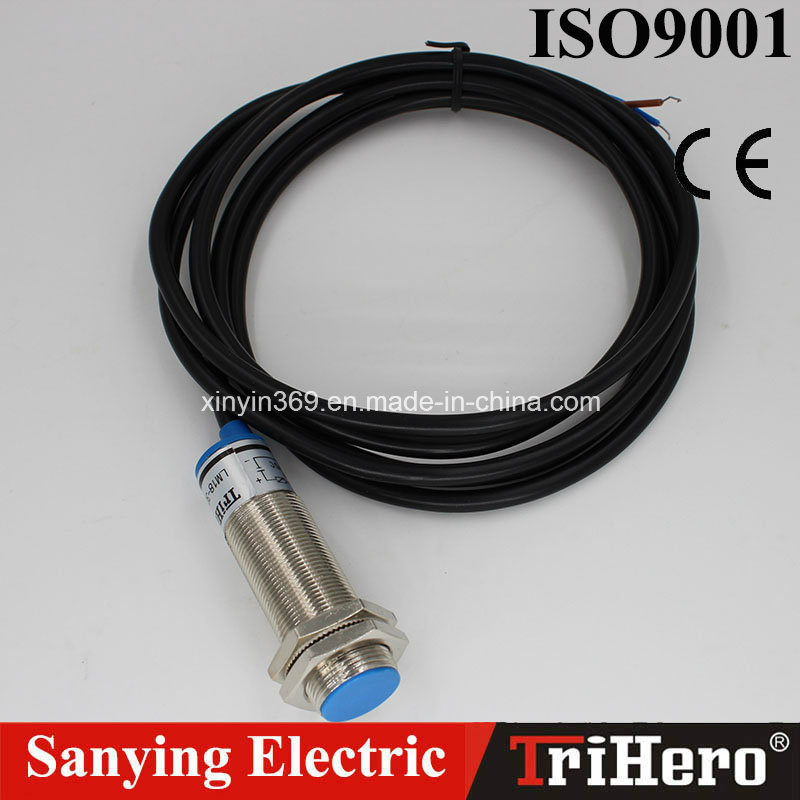

LM18 series inductive proximity sensor
FlushDetection distance5mm
 NPNNO3005NA
DCNC3005NB
6NO+NC3005NC
~PNPNO3005PA
36NC3005PB
VNO+NC3005PC
 two wire systemNO3005LA
 NC3005LB
ACSRC Control label silicon NO2005A
90NC2005B
~250NO+NC2005C
VRelay output
Non-flushDetection distance8mm
 NPNNO3008NA
 NC3008NB
DCNO+NC3008NC
6PNPNO3008PA
~NC3008PB
36NO+NC3008PC
Vtwo wire systemNO3008LA
 NC3008LB
ACSRC Control label silicon NO2008A
90NC2008B
~250NO+NC2008C
VRelay output
Control outputDC200mA
SCR/Relay300mA
Output voltage dropDC/ACDC<3V  AC<10V
Consumption currentDC<15mA  AC<10mA
Standard detected object18×18×1(A3 iron)
Repeated precision0.02
DC/AC Response frequency200Hz/25Hz
Working environment temperature-25ºC~75ºC
Insulation resistance50MΩ
Shell materialMetal
Protection gradeIEC standard IP67
Altemative model at home and abroadLJ18A3-18-**


Company introduction:
Yueqing Trihero Elecric is located in "Capital of China's low-voltage electrical appliances, " the Liuzhou City, is a collection of scientific research, development, production and sales as one of the non-regional joint-stock enterprises.

The company mainly produces relays, instruments, sensors, circuit breakers, frequency inverter and other products, has now extended to manufacturing plastic products, filter paper, and other diversified development. The company's industrial park covers an area of 7, 300 square meters, with a number of joint ventures and holding enterprises, its brand "Trihero" is in the industry favored. The company's quality system complies with international standards, in the same industry enterprises is the first to pass ISO9001: 2000 international quality management system and the CE, RoHS certifications.

After years of operation, our products are sold to more than 60 countries, we have built many overseas network with the help of local partners to meet the customer diversified demands.

With the development of society, we will work harder to provide customers with reliable, stable products and a full range of professional services. Our goal is: To become the user trust, with first-class scientific research and development capabilities of high-tech enterprises, and always pragmatic innovation, forge ahead spirit, to create a century Sanying and make unremitting efforts!
