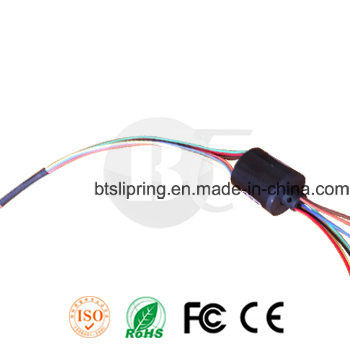

Inner Hole 3mm Miniature Through Hole Slip Ring Chinese Manufacturer ISO/Ce/FCC/RoHS
Price: |
US $ 80/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |

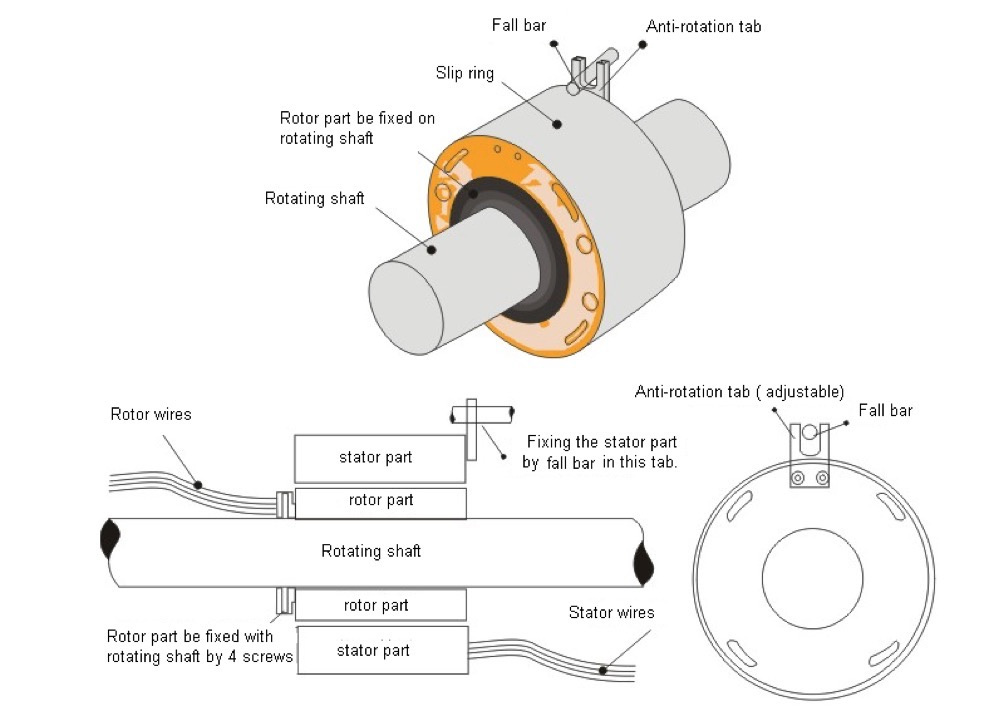

Welcome to visit website: www.btslipring.com A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A standard through slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. Its inner part rotates with a rotating shaft pass through the inner hole, so we call it " through hole slip ring" It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints. Standard Through hole slip ring BTH0318 Parameters:Mechanical :Working speed | 500rpm |
Operating temperature | -40ºC~ +100ºC |
Contact material | Precious metal |
IP Grade | IP 54 |
Electrical:Circuit | 2 & 6 & 8 |
Current | 2A |
Voltage | ≤380V |
Dielectric strength | ≥1000V@50Hz between each circuit |
Insulation resistance | 1000MΩ@ 500VDC |
Electric noise | ≤7mΩ |
Lead wire size | 26AWG, UL, color Teflon, silver or tin plated |
Lead wire length | 200mm |

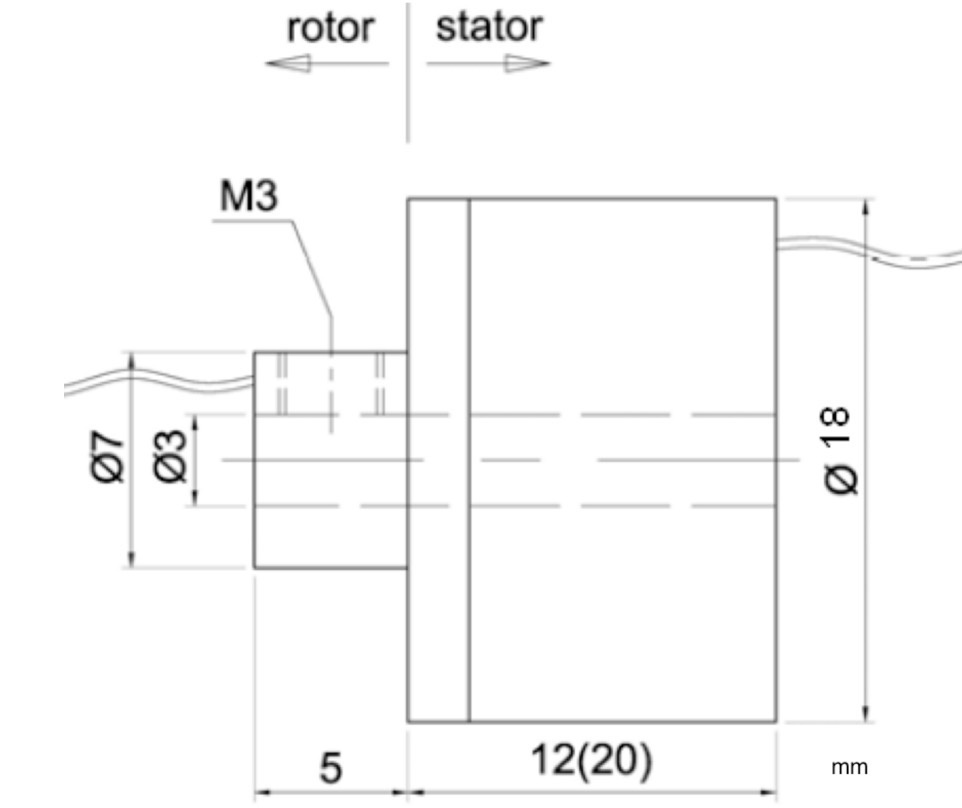

Dimension:Type | Standard Rings | Length | ID | OD |
BTH0318-2 | 2 | 12mm | Φ3mm | Φ18mm |
BTH0318-6 BTH0318-8 | 6 & 8 | 20mm | Φ3mm | Φ18mm |
Features of Standard Through hole slip ring BTH0318 :
- Low noise
- Wear-resisting (Silver to silver contacting)
- Good impact resistance
- Signal and current compatible
- Workable in hostile environment(-40ºC~ +100ºC)
- Flexible design for special requirements
Options of Standard Through hole slip ring BTH0318 - Circuits
- Loading of each circuit
- Wire length
- Inner hole /outer hole diameter or length
- Working speed
- Gold contacting
- Housing color
Typical application of Standard Through hole slip ring BTH0318 Aerospace / Defense • Armored vehicle turrets, IR and EO systems• Missile seeker gimbals and inertial systems • Helicopter de-ice systems, EO / IR trackers and target systems• Fixed-wing aircraft - EO / IR trackers, fire control systems, surveillance systems and targeting systems• Missile counter measures• Space - solar array mechanisms• Shipboard / submersible - navigation systems and fire control radar• Surveillance systems Industrial • Medical equipment and devices • Robotics• Index tables• Semiconductor handling • Pan tilt cameras• Packaging and processing equipment • Cable reels• Wind energy• CT scanners Marine • Remote operated vehicles (ROV)• Seismic surveying• Oceanographic winches• Subsea communications and control• Floating production, storage and offshore loading (FPSO) • Diving • Marine instrumentation• Down hole / wire logging and drilling Advantages of slip ring manufacturer---ByTune:- Affordable price
- Quality guaranteed
- Response within 24 hours
- Prompt delivery
- Reliable package & shipment
- Flexible & quick customization
Delivery time and shipment of ByTune:- 2 weeks ARO
- By UPS ,DHL or FedEx (depends on your location) 3 days door to door service
Prod Model: |
BTH0318 |
Working Speed: |
1000rpm |
Protection: |
IP54 |
Contacting Material: |
Gold or Silver |
Insulation: |
1000 M Ohm |
Electrical Noise: |
7mohm |
Wire Length: |
300mm |
Circuits: |
2 & 6 & 8 |
ByTune electronics Co., Ltd, since 1998, is a government supporting, hi-tech, private enterprise, with more than 200 employees, 20, 000 square feet factory and 2, 500 square feet rd & sales office. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide360° Rotary solutions. Besides supplying standard through hole slip rings, capsule slip rings, separate slip rings, pan cake slip rings, hydraulic slip rings, pneumatic slip rings, coax rotary joints, fiber optic slip ring etc, we have an expertized engineering team of more than 50 persons, we provide full range of customized slip rings at prompt delivery. We customize slip rings as per customers request in different applications such as agriculture machine slip ring, crane slip ring, antenna slip rings, wind turbine slip rings, auto-wrap machine slip rings...
ByTune electronics is equipped with the machines of CNC ( 2, 3, 4 and 5 axis), vertical machine tool integrating turning with milling, auto-drilling machine, precise milling machine, numerical control punch press, grinding machine, and so on… ...With advanced machines, we could do all of the processions in one-stop: CNC lathe, milling, drilling, grinding, punching, bending, casting, forging, stamping, etc … ByTune supplies quality & precise machine parts at prompt delivery.
At www.btslipring.COM, you could get high quality slip rings and machine parts at an affordable price and with superior support by contacting sales@btslipring. COM.
ByTune is ISO9001, CE, FCC, RoHS and military standard JGB9001A certificated!
