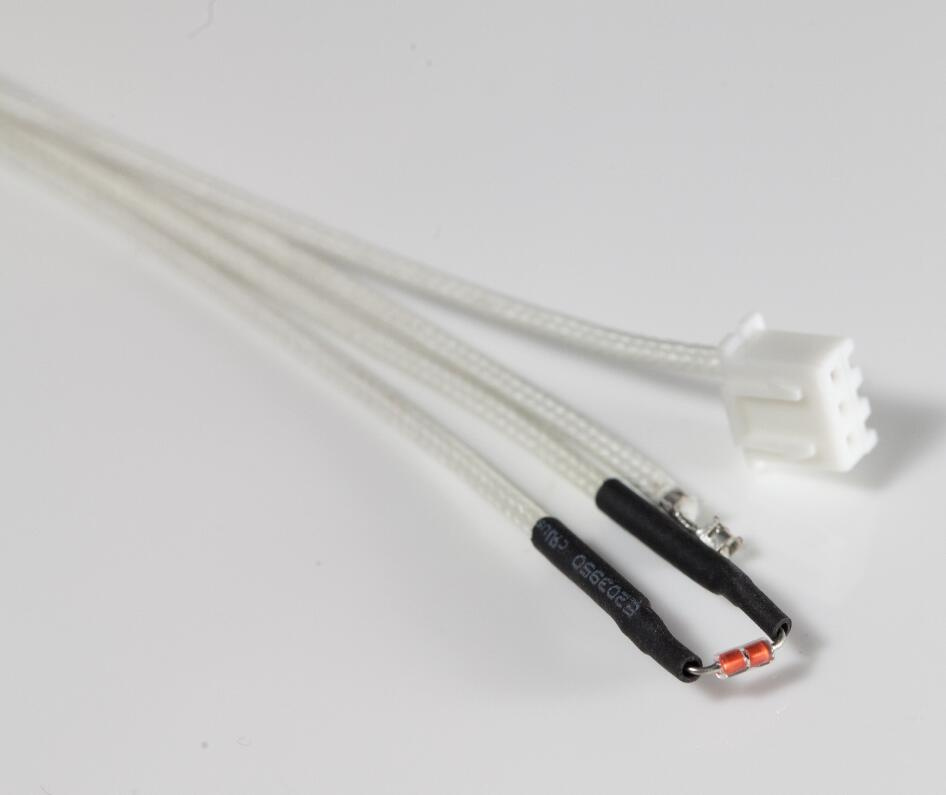

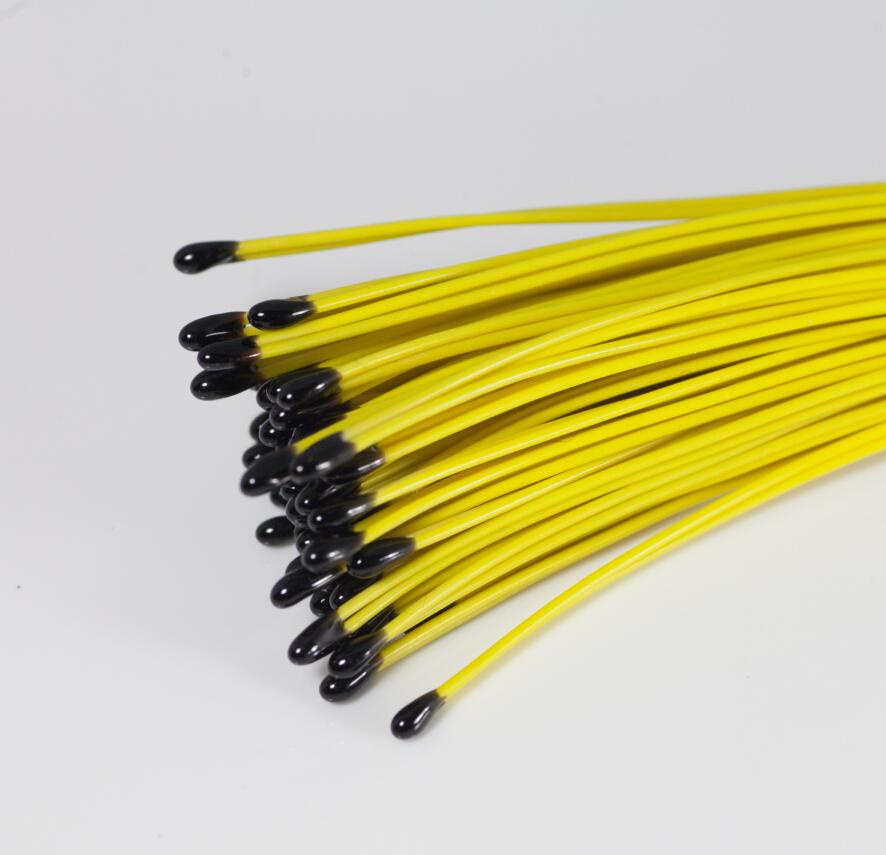

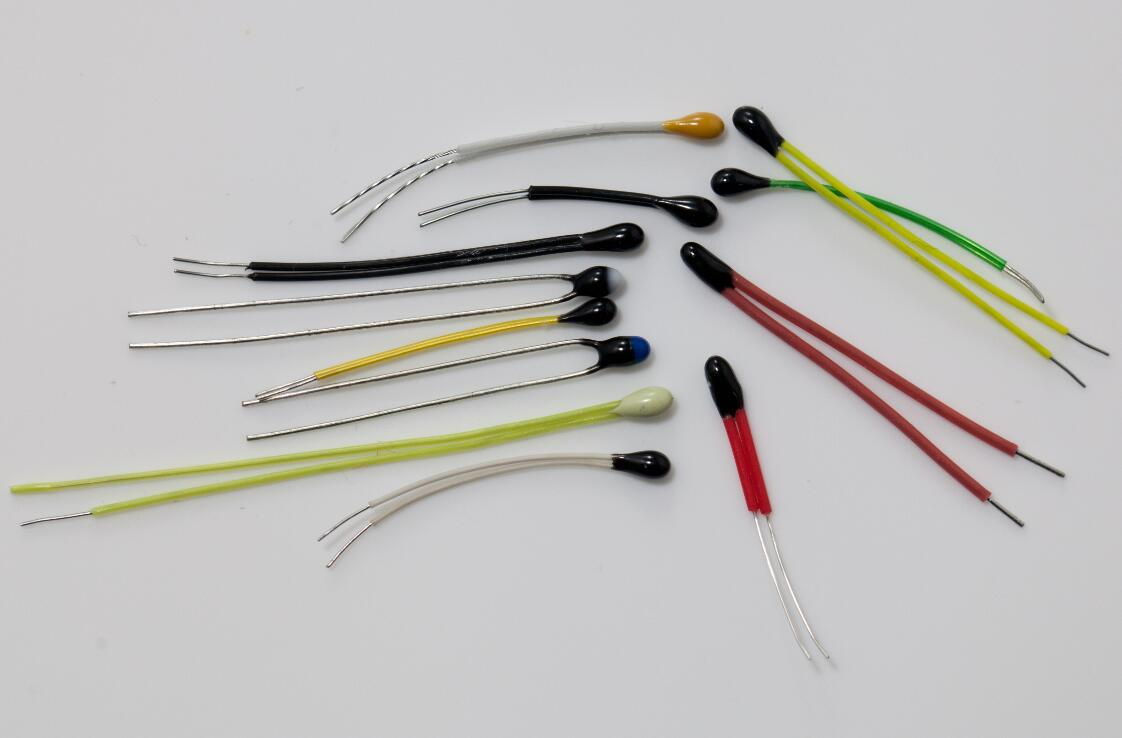

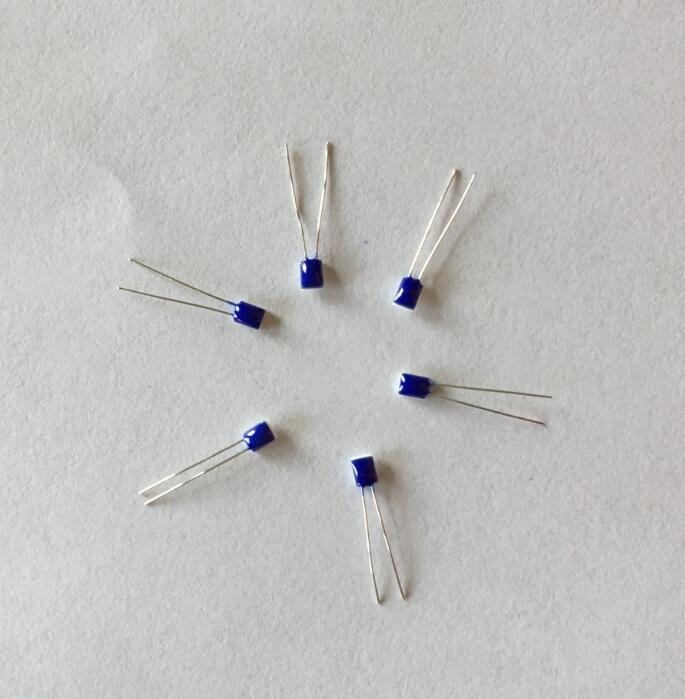

Insulated Lead Ntc Thermistor for Temperature Measurement

Name: Insulated Lead Ntc Thermistor for Temperature Measurement
Brand: all-electronics-online.com
SKU: 810858545
Availability: InStock
Rating: 4.3 (92 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Features:
Epoxy coated,
Miniature designed and high accuracry,
Fast response,
Good stability,

Applications:
Temperature sensor,
Electronic calendar and electronic thermometer,
Temperature compensation.

Parameters:
R25°C: 1K-2000K ohms
R25°C precision value: ±1%, ±2%, ±3%, ±5%, ±10%.
B25/50°C: 3270, 3380, 3470, 3550, 3700, 3950,4100,4600, etc.

Specification	R25ºC (KΩ)	B25/50ºC (K)	Disspation constant (mW/ºC)	Time constant (S)	Operation temperature range (ºC)
MF5A-2 -347-202	2	3470	ln stil air ≥ 2.1	ln stil air ≤ 16	-30~120
MF5A-2 -327/347-502	5	3270/3470
MF5A-2-347/390/395-103	10	3470/3900/3950
MF5A-2-395-473	47	3950
MF5A-2-395/400-503	50	3950/4000
MF5A-2-405-104	100	4050

Remark:
R25ºC interchangeability precision
B value precision:±1%
B value among 3000-4500K,and R 25ºC among 0.5KΩ-200KΩ can be custom designed.

Relevant Products:

Prod Model:	MF5A-5 Series
Feature:	Fast Response,High Stability
Resistance:	Sensitive Resistor
Installation:	DIP Resistor
Material:	Ceramic and Metal
Package Type:	Throught Hole
Type:	Thermal Resistor
Function For Resistance:	Negative Resistor
Shape:	Radial Leaded
Resistance Change Scale:	Unlinear Scale
Application:	Microwave Oven
