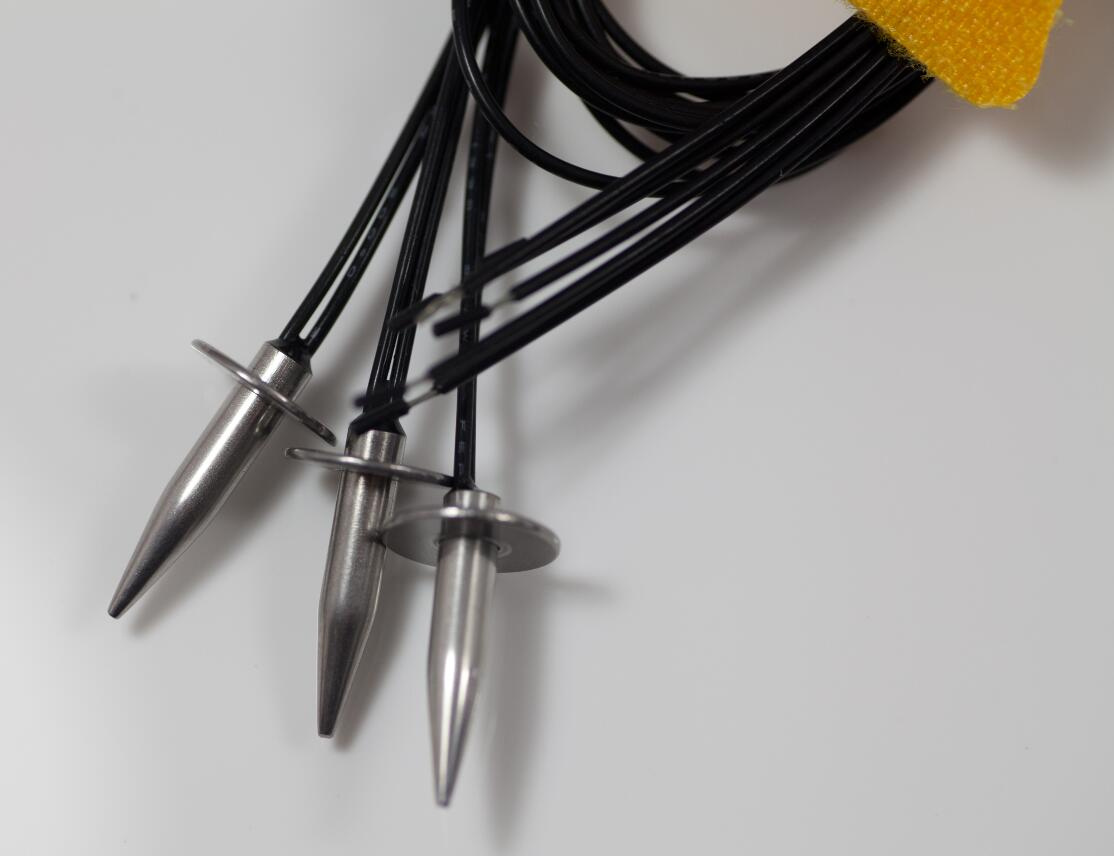

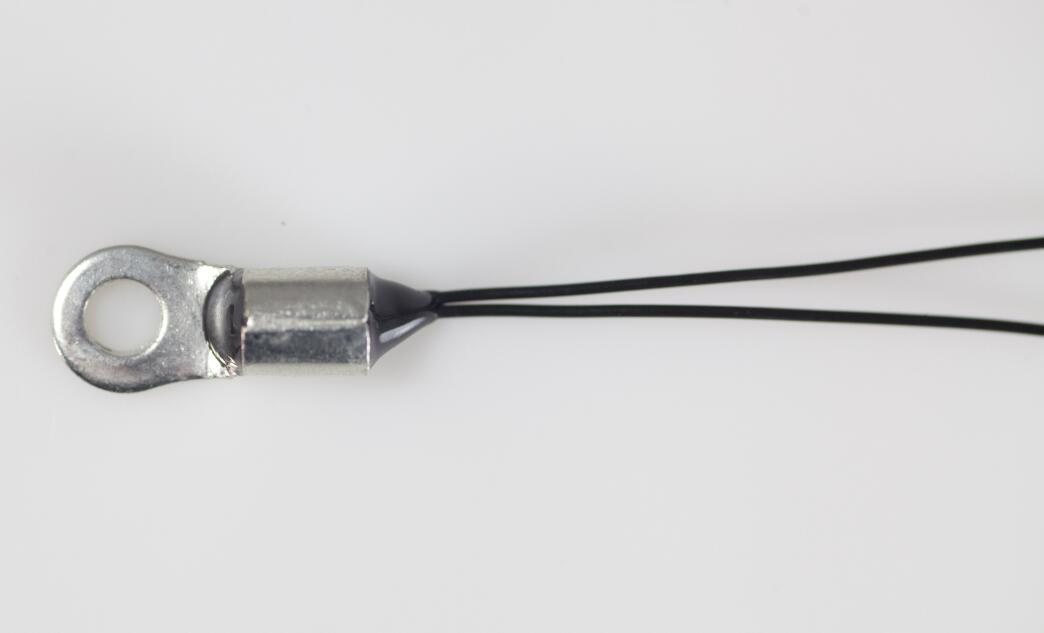

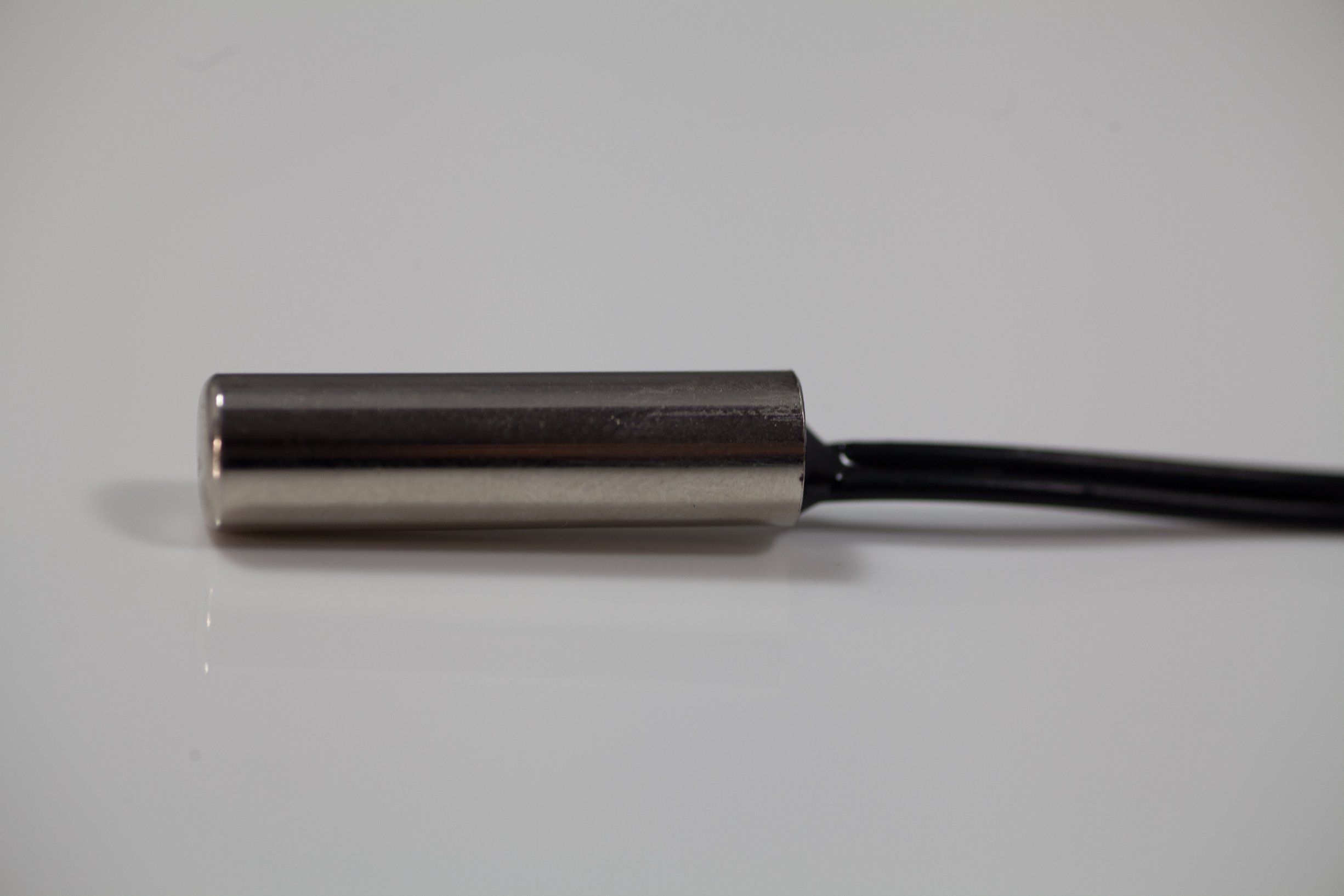

Mass Production Tubular Metal House Temperature Sensor Mft for Home Appliances

Name: Mass Production Tubular Metal House Temperature Sensor Mft for Home Appliances
Brand: all-electronics-online.com
SKU: 809568305
Availability: InStock
Rating: 5 (85 reviews)

Price:	US $ 0.01-1/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Specifications:
MFT series temperature sensor using the NTC resistance element, according to the different temperature environment or application, through the mature technology, fabricate into a variety of specifications of the sensor, customers can use directly without fabricating.

MFE-1 series temperature sensor is plastic overmoulding sensor. TPE, PVC material as standard material, with different mounting request it can be injected into different size and type. NTC, RTD elements are most popular sensing element. Special advantage of MFE-1 series is high water proof, with IP67 as standard class, it can reach IP68 on request. Another advantage is custom flexible, size, mounting type, sensing type and material type can be customized according to application condition.

Typical Applications:
Ice maker
Refrigerator
Heat Pump
Water heater
Floor heating System
General Application etc.

Features:
SUS, Cu, Plastic housings for food grade
Suitable for general temperature work in

Technical Data:
         Item                                              Parameter
Sensing Element                  NTC Thermistor various R and B value on request
Temperature range                 -40°C to +105°C
Response time                      Water (0.4m/s) T0.63 ≤ 30s
Dissipation Factor                  ≥ 2.5mW/°C
Long-term stability                 Drift ≤ 3% after 1000h heat or cold store (80°C / -30°C)
ielectric Strength                       1500VAC
Insulation Resistance           ≥100MΩ 500VDC

Note:
Welcome to contact with us for much more specifications of these products if you interested.

Relevant Products:

Contact US:

Focus Sensing and Control Technology Co.,LTD
Sales Manager
Cherry Chen
Tel: +86-551-69109668

Prod Model:	MFT, MFE
Material:	PVC

Focusens is a ISO certified and patented company specially works in developing, producing and service of temperature sensors and thermal components.

With more than 15 years field experience, we are committed to provide quality and prompt delivery of temperature and humidity components, as well as custom design service in temperature humidity field.

Our activities covers all over the world, including Asia, Europe, America, Latin America, Australia and South Africa.

Our customers covers Important players such as Schneider, Oster, Haier, Lada, JAC etc.

Our main products including various temperature sensors and temperature sensing element, various output type humidity transducer, and temp. Humidity monitor and control units.

We provide professional design, manufacturing, and assembly, meanwhile accept OEM with customers design.

Contact us now for details and improve projects efficiency with our expertise.
