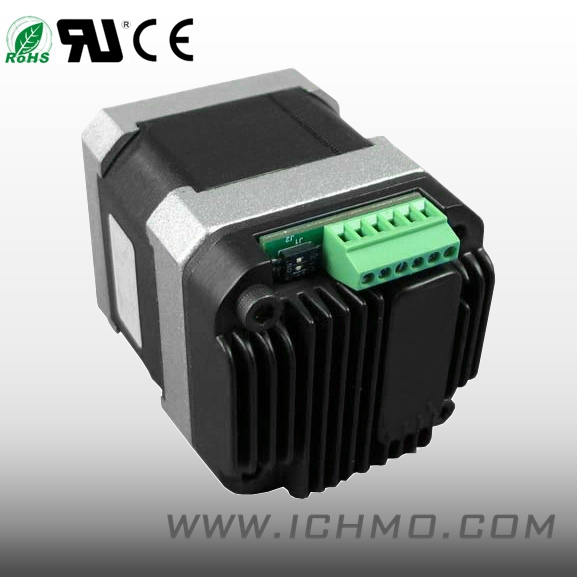

Integrated Stepper Motor Hi86 Series

Name: Integrated Stepper Motor Hi86 Series
Brand: all-electronics-online.com
SKU: 670274995
Availability: InStock
Rating: 4.9 (63 reviews)

Price:	US $ 40-150/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Features:
-Integral Design, all in one (controller, driver and motor)
-Frame NEMA34
-Hybrid bipolar stepping motors
-Different Rated Current
-Holding Torque for your separate applications

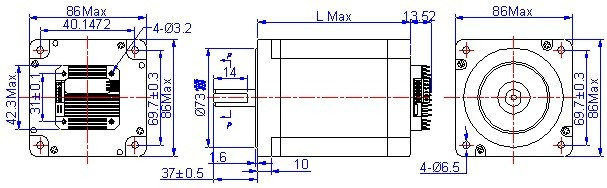

Drawing:

Specification:

Series Model	Step Angle (°)	Motor Length (mm)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (Kg.cm Min)	Rotor Inertia (g.cm²)	Lead Wire (NO.)	Motor Weight (g)
HI86-A	1.8	80	5.0	0.43	3.5	3.5	1.6	4	1.7
HI86-B	1.8	98	3.0	1.7	28	5.5	2.5	4	3
HI86-C	1.8	150	5.0	0.35	2.5	8.5	4.8	4	5
Note : The above motor information is only for your information. The more motor information is showed in our stepper motor catalogue.

NEMA34 size 86mm bipolar or unipolar hybrid stepper motor
Bipolar 4 lead wires hybrid stepper motor
Unipolar 6 lead wires and 8 lead wires hybrid stepper motor
CI240-4A or CI 240-8A stepper motor driver
12-40VDC supply, 4 or 8 amps settable current
Full, half, quarter and 16 th microstepping
Clock, Direction, Steps and Automatic Current Reduction
You also could use the CAN series CI242 stepper driver and Serial port CI241stepper controller for an integrated stepper motor.

Prod Model:	HI86
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feature:	Integrated
Size:	86mm
Excitation Mode:	HB-Hybrid
Number Of Stator:	Customize
Number Of Poles:	Customized
Type:	Hb Stepper Motor
Brand:	I.CH
