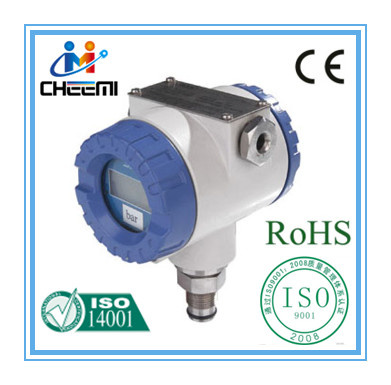

Intelligent Pressure Transmitter Stainless Steel Sealed Construction with LCD Display
| Price: |
US $ 0.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |

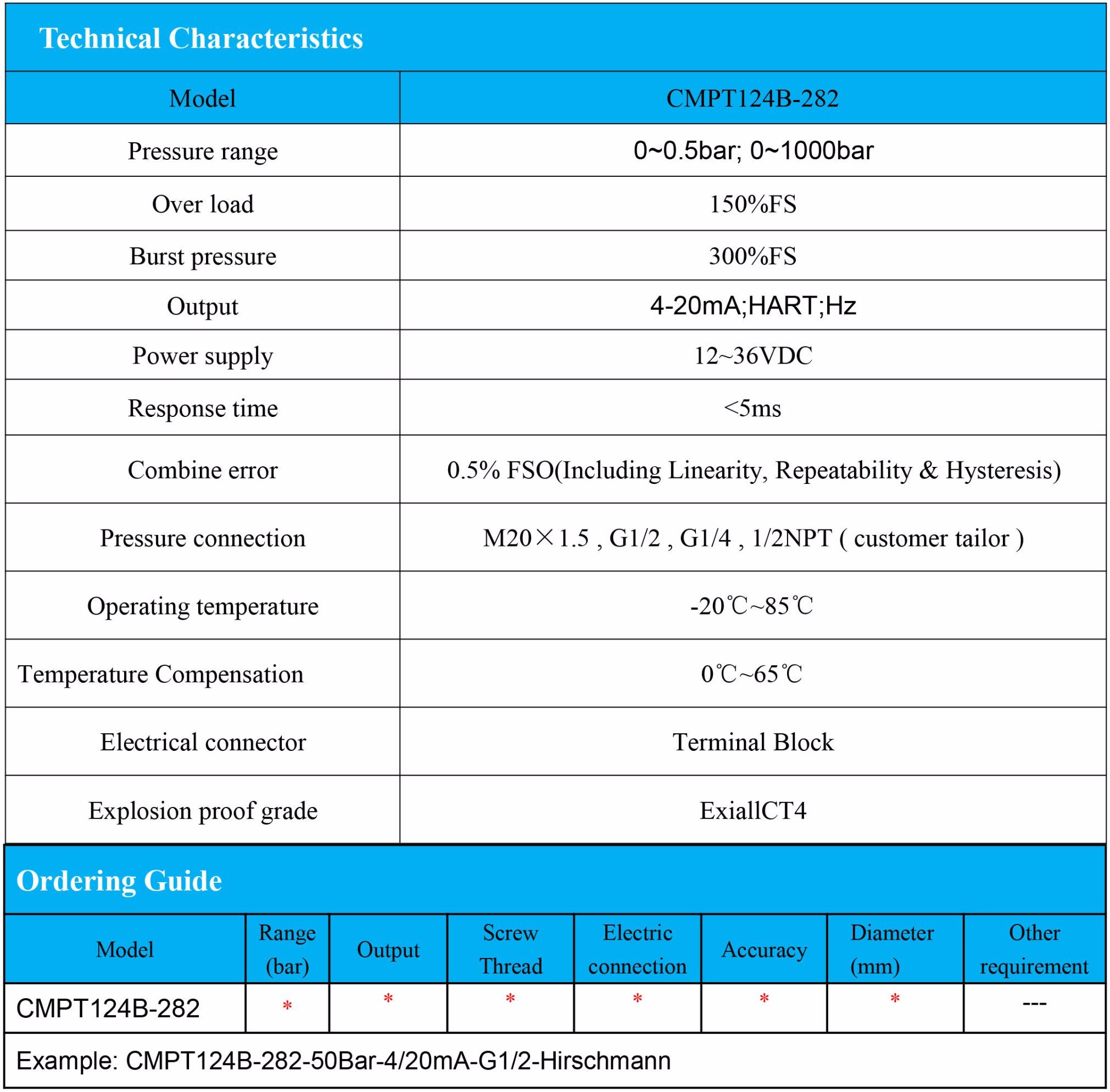

Introduction CMPT124B-282 intelligent pressure transmitter adopted compensation technology of digital circuit, the output is 4-20m with HART protocol, stainless steel sealed construction with LCD display, suitable for all kinds of industrial process measuring and controlling.CMPT124B-282 series smart explosion proof pressure transmitter1. it is designed with flameproof structure;2. it passed EXibIICT4 certificate successfully;3. this series pressure transmitter adopts high-performance pressure sensor chip, with advanced circuit processing and temperature compensation technology, it converts the pressure changes to current or voltage signal;4.this transmitter comes with HART communication, it has the function of communication and self-diagnostic;5.with handheld terminal or FCS, customers can make long distance transmission, reading, display and input all the work information and additional data into the transmitter. Features: Digital circuit compensation technologyIntrinsically safeHigh accuracy, high stabilityExplosion proof shell with LCD displayOutput is 4-20mA,and load HART protocol ApplicationPetroleum and chemicalSeam flowHydraulic controllingSpecification
Note * We provide FREE samples for your test!
Purchase only when you are satisfied with the FREE samples.
Please contact us to apply FREE Trial NOW !!* Please let us know what kind of model, working voltage, input & output signals, mounting size.
* Or tell us your techincal requirement for the sensor selection.
* OEM/ODM is welcomed.
CHEEMI TECHNOLOGY CO.,LIMITED.
Certification: ISO9001, CE, ROSH.
( Your reliable sensor-solution partner for Hall Current & Voltage Transducers, Proximity Switches/sensors, RTD Temperature Sensors, Current Transformers, Pressure Transmitter, Liquid Level Transmitter. )
Address: 22 Building, XianlongWan, Xianyin South Road, Qixia District, Nanjing City, Jiangsu Province, China.
Post code: 210000
Tel: +0086-025-85996365
Web: www.cheemi-tech.comPackage * All our sensors will be well packed with bubble & carton. (Bubble packing→4 small carton→1 big carton)
* You can choose your own label(Screen Print or Laser Engraving).
* Can be netural packing or OEM.Shipping * Products are shipped via UPS / DHL/ FedEx / TNT, etc. (door to door), or air & sea shipment for larger qty.
* L/T: 3-7 days upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
* Shipping via DHL. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country. Warranty * We provide 1 year warranty.
* If the product is defective, please notify us within 3 days after receiving.
* All products must be returned on their original condition, in order to qualify for a refund or exchange of goods.Our Commitment Better Price than other suppliers for you because of Factory Direct Sale;
Better Quality than before caused by our 10+ years experience about sensors;
Fast Delivery made by our Enthusiasm;
Timing Reply in 24 hours all about our TEAM's Passion & Patience.
| Prod Model: |
CMPT124B-282 |
| Operating Temperature: |
-20ºC~85ºC |
| Explosion Proof Grade: |
Exiallct4 |
| Type: |
Intelligent Pressure Transmitter |
| Measuring Medium: |
Liquid;Gas |
| Pressure Range: |
0~0.5bar; 0~1000bar |
| Certification: |
Ce RoHS ISO |
Cheemi specializes in development and commercialization of monitoring & measuring solution innovation, with more than 100 workers, 5200 non-dust workshop, 12 years experience in current measurement, ISO, CE & RoHS certificated, one and half hours reach Shanghai port. This is how we keep good quality and competitive prices for global valued customers.
As the leading manufacturer and supplier in the field of sensors and measurement with more than 10 years experience, Cheemi Technology Co., Ltd provides the most effective and reliable sensor solutions which involve
1. Open & Closed Loop Hall effect Current & Voltage transducers, Current Transmitter, Leakage Transducer; Completely replace LEM hall sensors with excellent quality and performance.
2. Hall proximity switches, Inductive proximity sensors, Photoelectric proximity sensors; Equivalent to OMRON Proximity Sensors.
3. RTD Temperature sensors, temperature transmitter
4. Current transformers and potential transformers
5. Pressure sensor/transmitter
6. Liquid level sensor/transmitter
With more than a decade experience in current measurement, we have professional & ambitious team with cutting-edge manufacturing technology; We are not only dedicated to quality and total solutions for our consumers, but also committed to technical expertise service and customer satisfaction.
