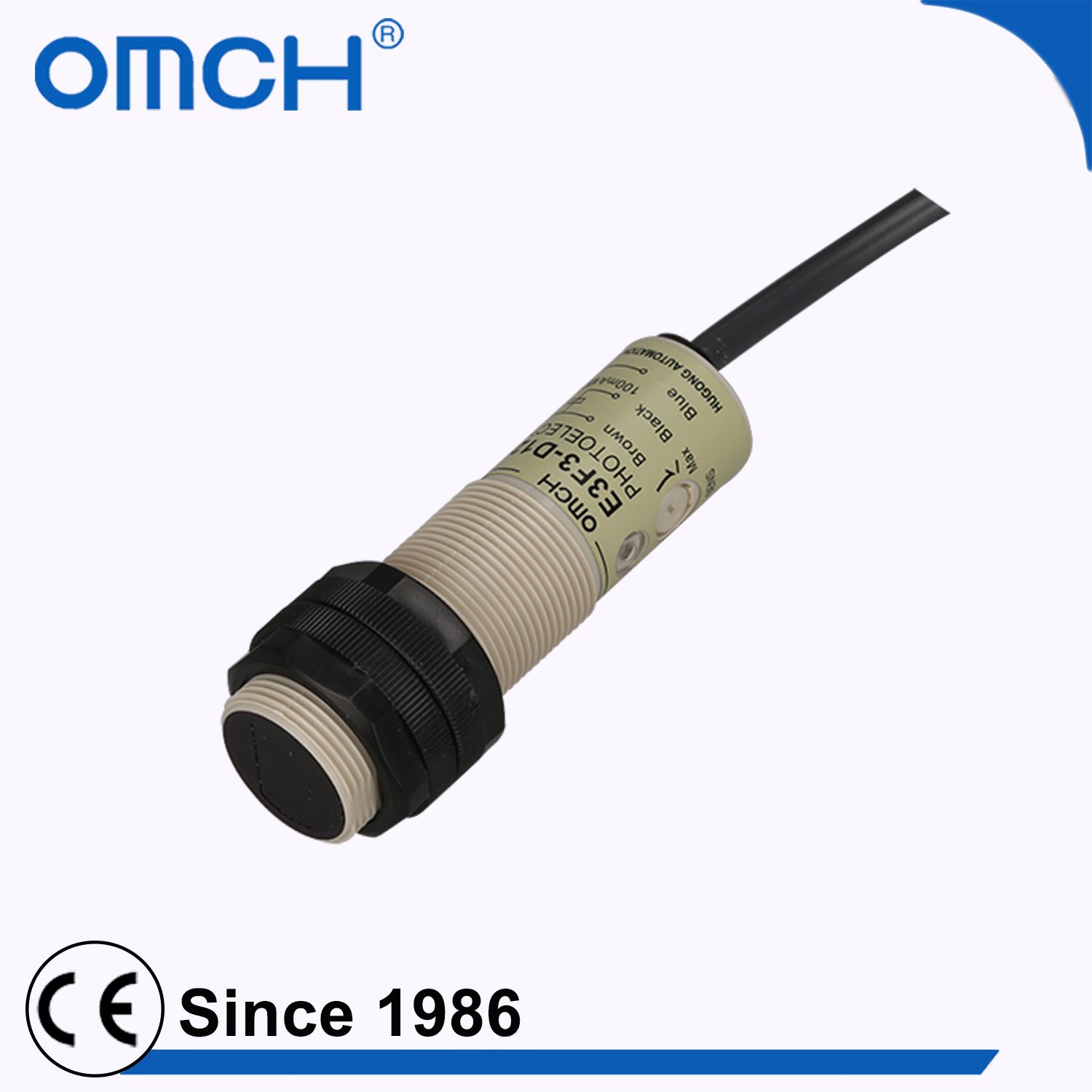

IP 65 auto Cylindrical inductive Photo sensor 110v

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC

Newly added current over-load protection

Long service life, high reliability and strong resistance property to environment

Red LED indicates that it's available to detect the sensor operating state

Newly added metal housing to improve the installation intensity

Countermeasure to improve the housing intensity and to solve disconnection

IP65 protection structure (IEC specification)

Read the "Matters needing attention" of the Product Instruction before use

Type and Specification

We sincerely welcome agents from all over the world

Dimension				M18x1
Mounting way				Diffuse type		Feedback reflex type	Through beam type
Type	DC type	NPN	NO	E3F3-D11	E3F3-D12	E3F3-R11	E3F3-T11
			NC	E3F3-D61	E3F3-D62	E3F3-R61	E3F3-T61
			NO+NC
		PNP	NO	E3F3-D31	E3F3-D32	E3F3-R31	E3F3-T31
			NC	E3F3-D81	E3F3-D82	E3F3-R81	E3F3-T81
			NO+NC
	AC type	Two wire	NO
	AC type	Two wire	NC
Detection distance				10cm±10%	10-30cm±10%	3m±10%	5m±10%
Set distance				Transparent/Opaque Object		Opaque Object	Opaque Object
Standard detection object				sensitivity adjuster		sensitivity adjuster	Fixed
Response time				1ms		1ms	1ms

Connection delay	1.5ms
Light Source	Infrared light 660nm
Supply voltage	DC type: DC12-24V(6-36V) Impulse(p-p) 10% below Ac type: AC110-220V (36-250V) 50/60Hz
Consumption current	N.P type:20mA below A type:1.7mA below
Control output	N.P type:300mA below A type:400mA below J type: A below contact service life: 0.1 million times
Loop protection	N.P.D type: reversal connection protection, surge absorption, load short-circuit protection A type: surge absorption
Ambient temperature humidity	During operation,storage: individually-30~+65(No freeze,no drew), During operation,storage: Individually35~95%RH
Insulation resistance	50 MΩ about(DC500 megameter) between charging and housing
Withstand voltage	AC1000V50/60Hz 1 min between charging and housing
Temperature influence	Temperature range-30~+65,at+23,+/-15% detection distance Temperature range-25~+60,at+23,+/-10% detection distance
Voltage influence	Inside+/-15%rated supply voltage range, at rated supply voltage value; Inside +/-10% detection distance
Protection sturcture	IP65 ICE specification
material	Nickel plated brass(ABS); Detection surface(lens)PMMA
