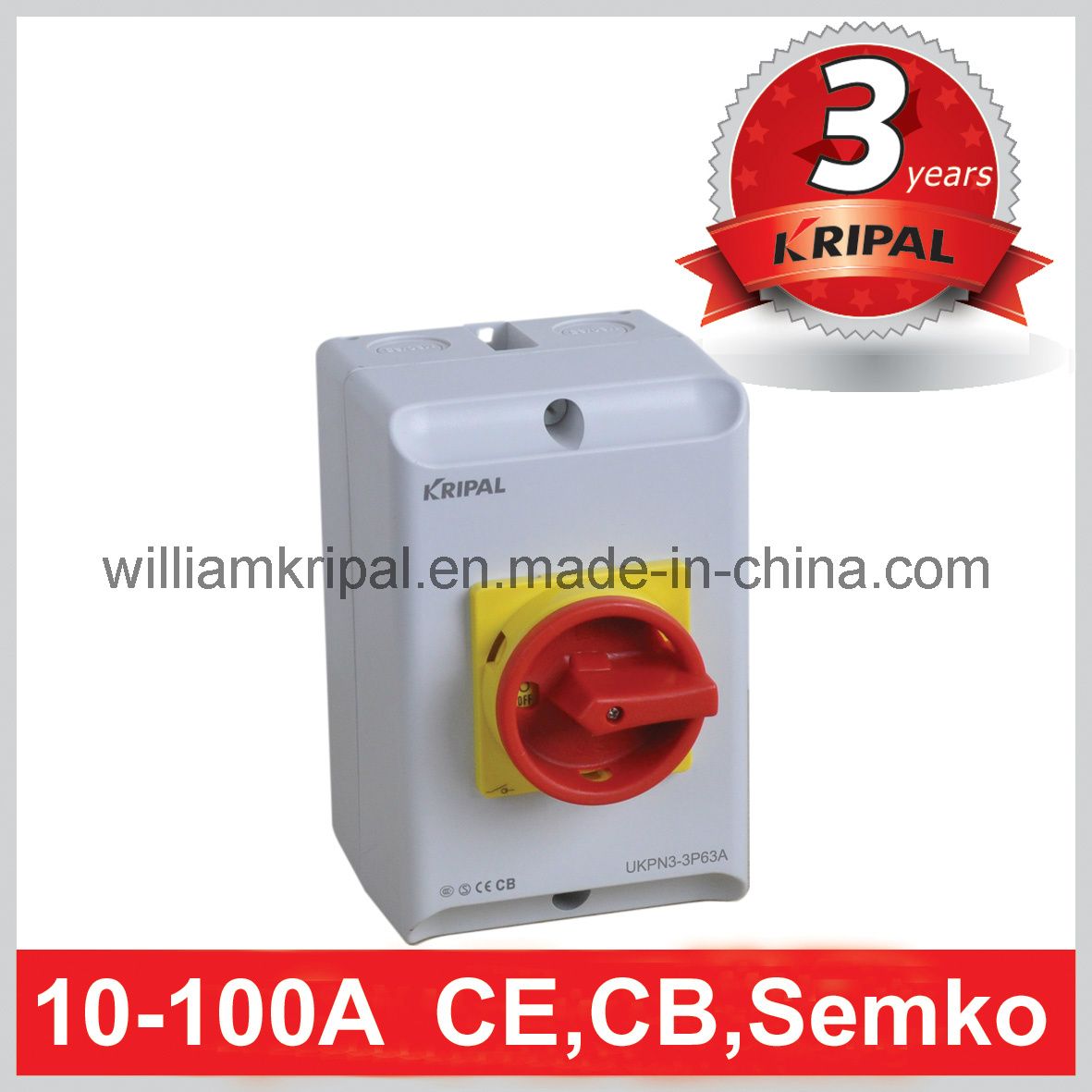

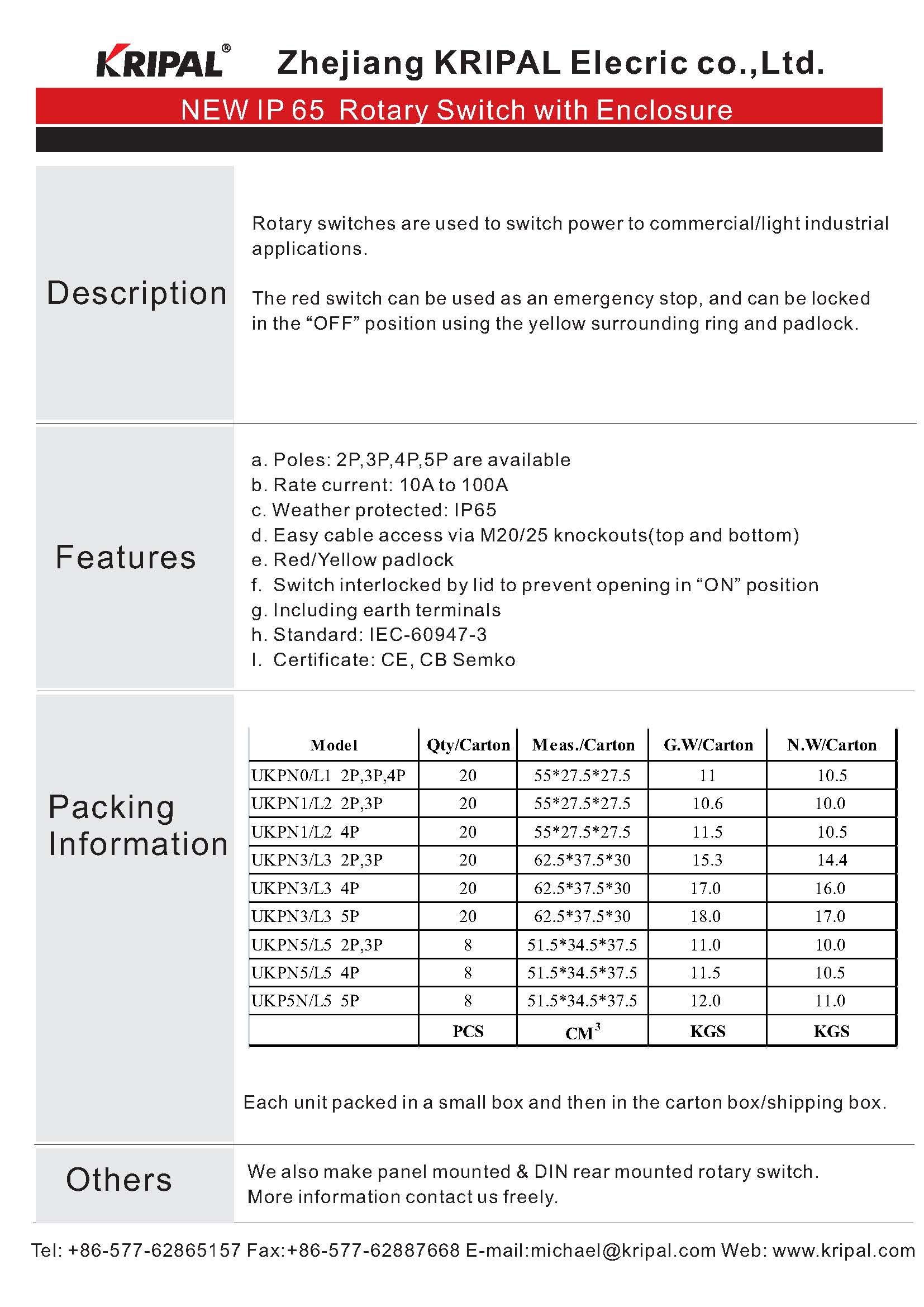

IP65 BOXED Switch Disconnector

KRIPAL IS THE ONLY ONE WHO MAKE THIS SERIES.

A. Poles: 3P

B. Rate current: 63A

C. Weather protected: IP65

D. Easy cable access via M20/25 knockouts(top and bottom)

E. Red/Yellow padlock

F. Switch interlocked by lid to prevent opening in "ON" position

G. Including earth terminals

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

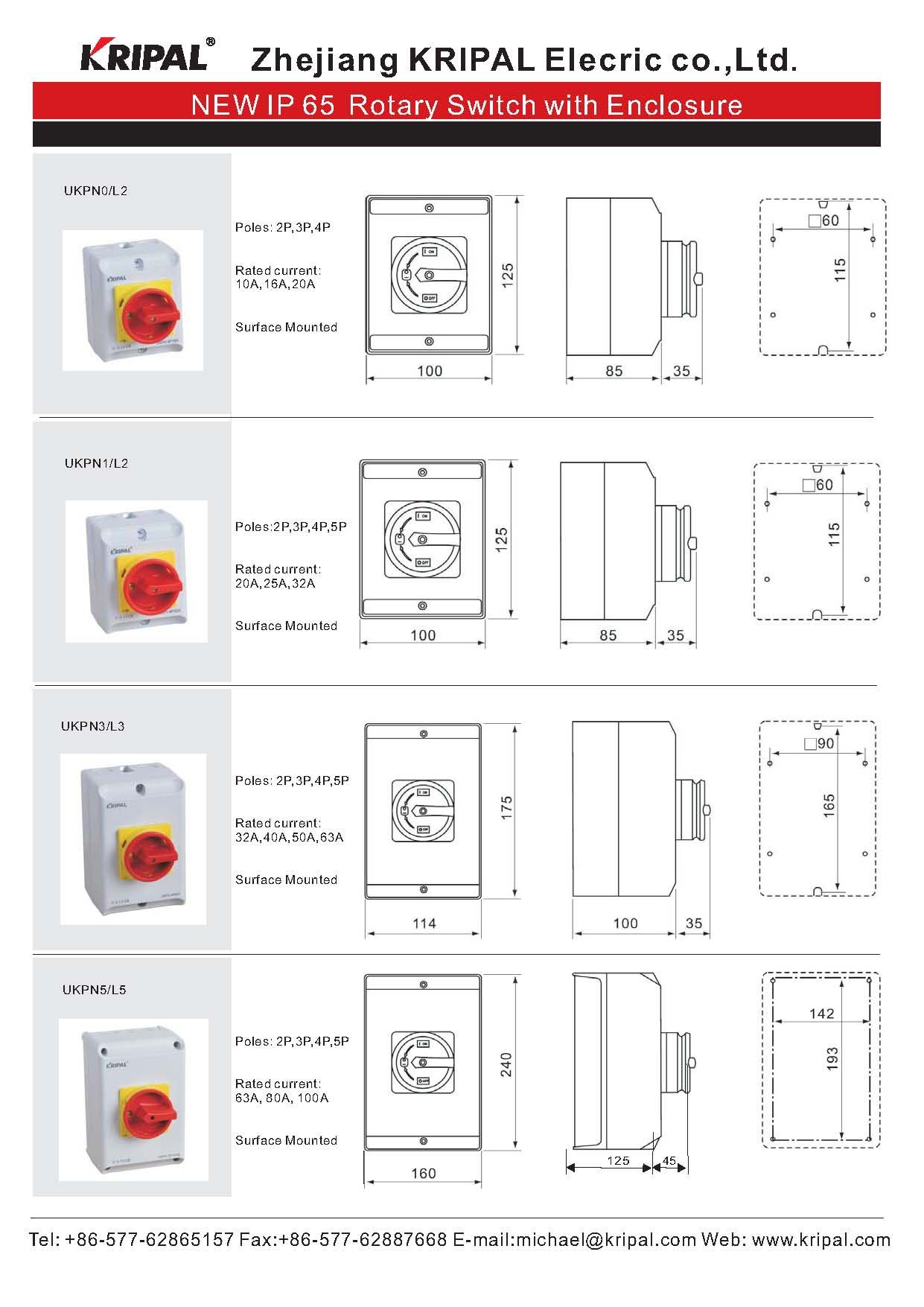

1. Poles: 2P, 3P, 4P, 5P

2. Rated current: 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A

3.90 switching angle

4. Forced open contacts

5. Finger protected

6. Fulfills the load break requirements up to 690 V and 1000 V

7. Terminal screws in open position

8. Red operation lever & yellow panel, pad lockable

9. Disconnect Switches offer ideal features for their use as: ON-OFF Switches, Emergency-Off Switches, Maintenance Switches, Safety Switches, Distribution Switches, and Motor switches

10. Our products are designed, manufactured and tested according to the following standards: EN 60947, EN 60204-1, IEC 60947, IEC 60204-1

11. Certificate: CE, CB, Semko, ISO9001: 2000

12. Samples: provided freely

13. Warranty: 3 years; every item is tested before delivery, professional testing lab in factory

14. Lead time: 20 days and depend on ordering quantity

15. Lead time: 20 days and depend on ordering quantity

16. ODM, OEM: acceptable; mould toolings are finished in our own mould tooling center

Prod Model:	UKPN3-3P63A
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	3 Years
Name:	Switch Disconnector
Materials:	PC, Nylon, Silver, Copper
Usage:	Electrical Appliance

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
