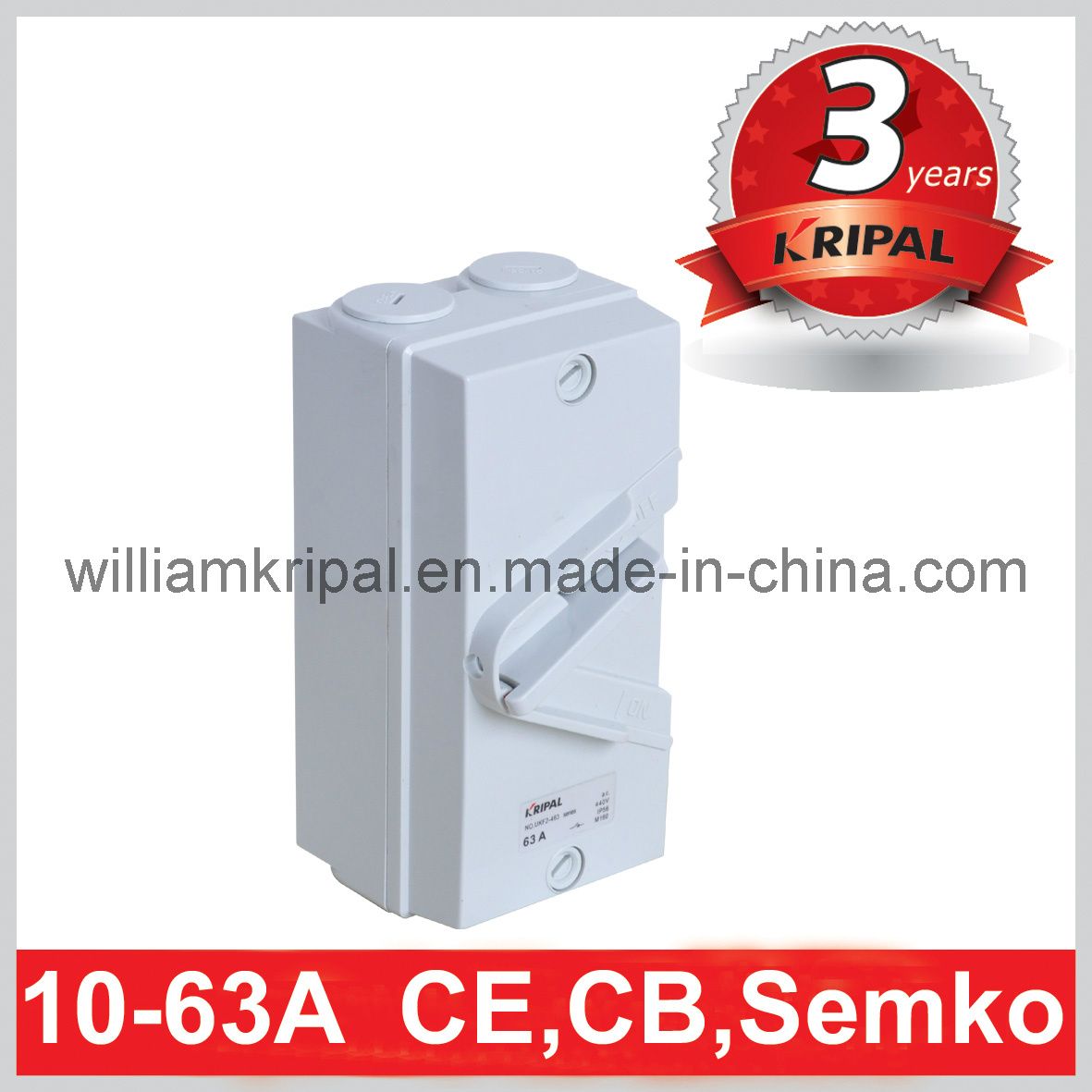

IP66 63A 4p Isolating Switch / Isolator Switch

Name: IP66 63A 4p Isolating Switch / Isolator Switch
Brand: all-electronics-online.com
SKU: 634142215
Availability: InStock
Rating: 4.5 (28 reviews)

Price:	US $ 4.19/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

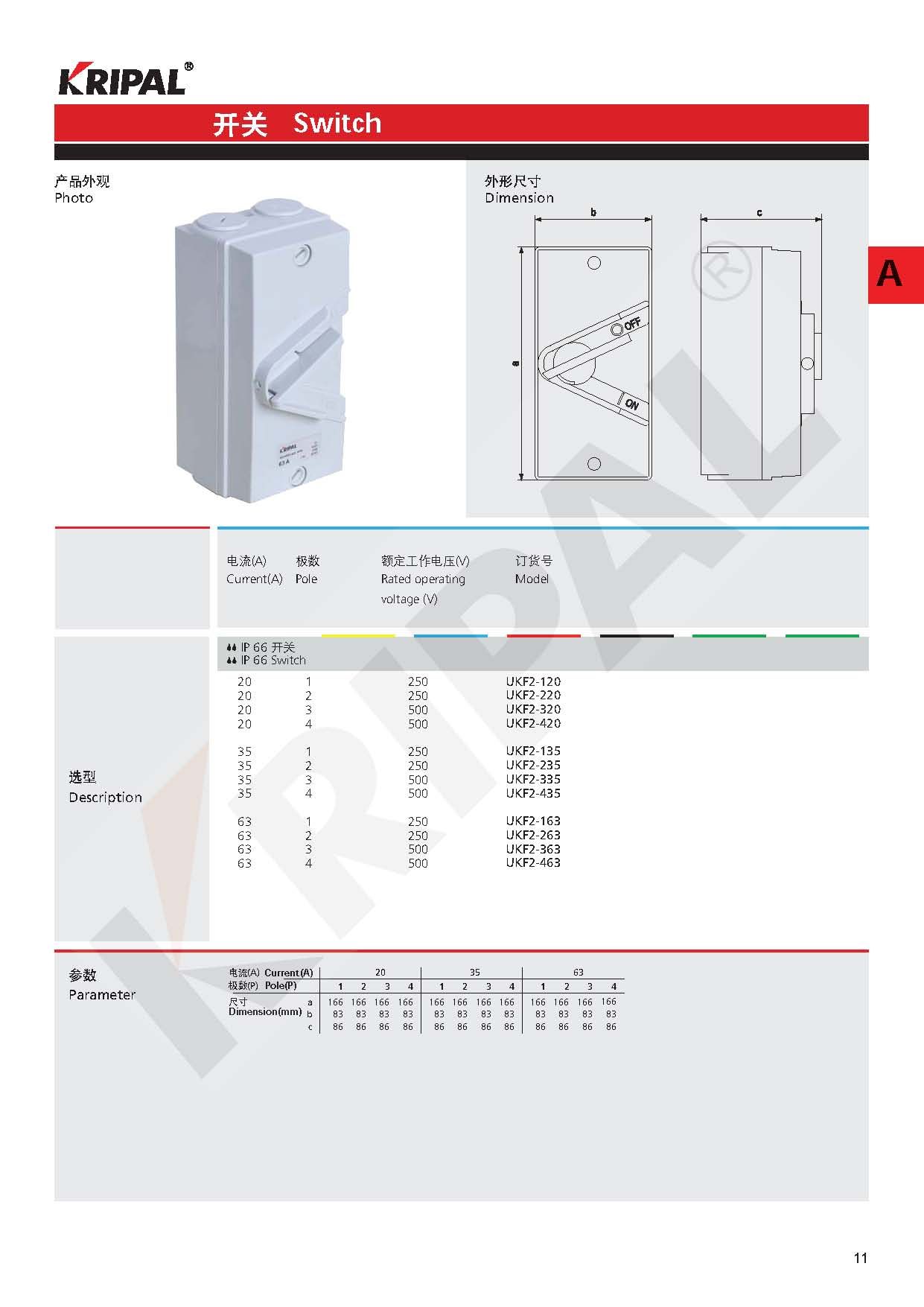

Isolating Switch / Isolator switch

Three type: UKF1, UKF2 UKF3, the differences are the outlook and the function are the same.

Pole: 1P, 2P, 3P, 4P
Rated Current: 10A, 20A, 35A, 63A

UKF4 mini isolator switch:
Pole: 1P, 2P
Rated current: 10A, 16A, 20A, 35A

1. Cables looped in and out from overhead.

2. In and out from underground

3. In and out straight through the switch.

4. Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.

5. Samples provided freely.

Type		UKF1-120	UKF1-135	UKF1-163	UKF1-220	UKF1-235	UKF1-263	UKF1-320	UKF1-335	UKF1-363	UKF1-420	UKF1-435	UKF1-463
		UKF2-120	UKF2-135	UKF2-163	UKF2-220	UKF2-235	UKF2-263	UKF2-320	UKF2-335	UKF2-363	UKF2-420	UKF2-435	UKF2-463
		UKF3-120	UKF3-135	UKF3-163	UKF3-220	UKF3-235	UKF3-263	UKF3-320	UKF3-335	UKF3-363	UKF3-420	UKF3-435	UKF3-463
Insulation voltageUi(50Hz)		250	250	250	440	440	440	440	440	440	440	440	440
Working VoltageUe(50Hz)		250	250	250	440	440	440	440	440	440	440	440	440
Power frequency(KV) voltage		1.5	1.5	2.5	1.5	1.5	2.5	1.5	1.5	2.5	1.5	1.5	2.5
Rated irregular load(A)		20	35	63	20	35	63	20	35	63	20	35	63
Rateduninterruptedworking system:		Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Number of poles		1P	1P	1P	2P	2P	2P	3P	3P	3P	4P	4P	4P
Singlecablesectioncross-strand	Min	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Singlecablesectioncross-strand	Max	16	16	25	16	16	25	16	16	25	16	16	25
Cablesectionmany cross-shares	Min	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Cablesectionmany cross-shares	Max	10	10	16	10	10	16	10	10	16	10	10	16
EN60947-3-1		250	250	415	415	415	415	415	415	415	415	415	415
Use of categoriesAC23		20	35	63	20	35	63	20	35	63	20	35	63
Short-term rated(A)1/Secvoltage		240	384	756	240	384	756	240	384	756	240	384	756
Breaking capacity		0.5	0.5	1	0.5	0.5	1	0.5	0.5	1	0.5	0.5	1

Prod Model:	UKF2-463
Markets:	Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
IP:	66
Color:	Ral 7035
Warranty:	3 Years
Materials:	PC, Copper, Silver
Usage:	Electrical Appliance

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
