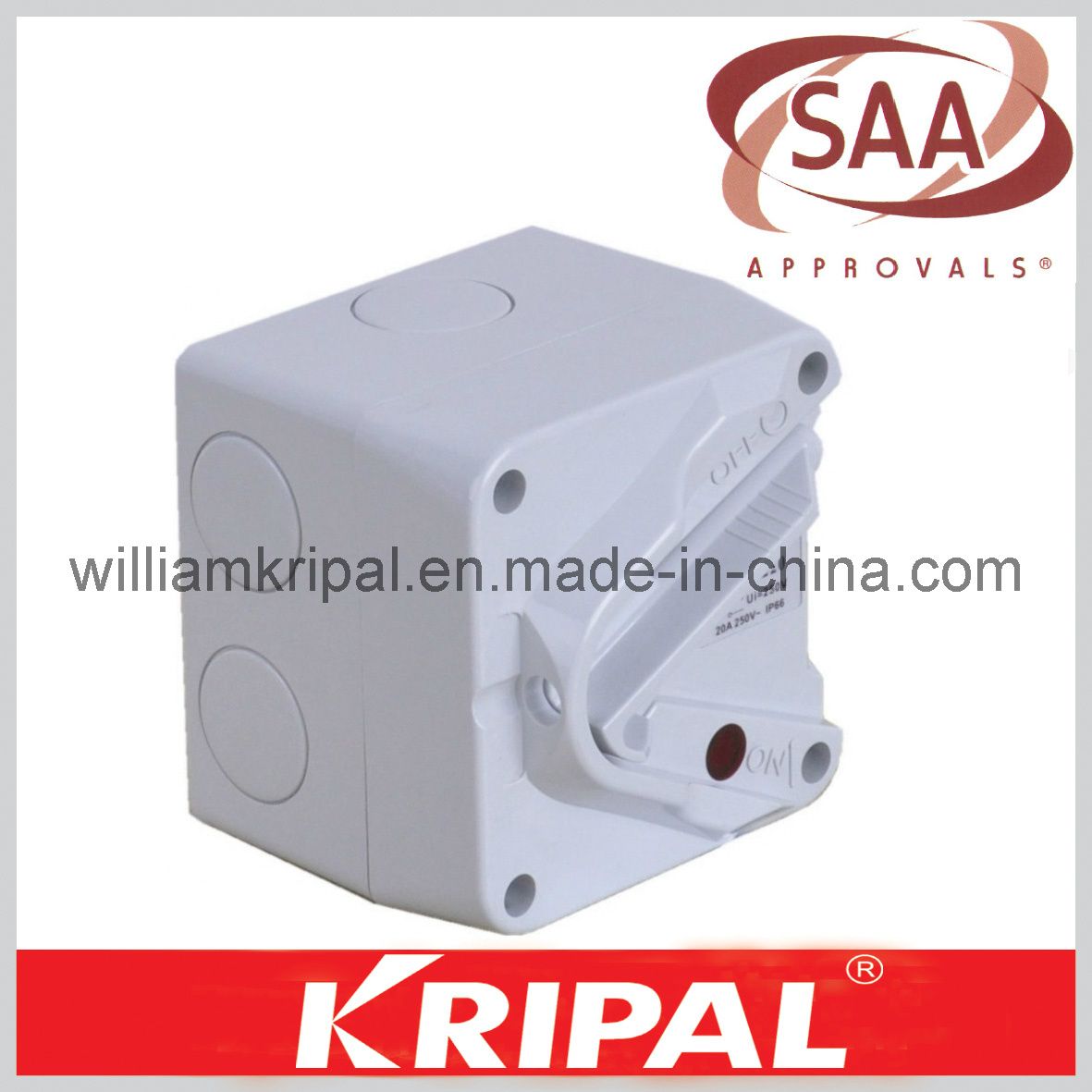

SAA IP66 20A 1 Pole Mini Isolator Switch

Name: SAA IP66 20A 1 Pole Mini Isolator Switch
Brand: all-electronics-online.com
SKU: 651843955
Availability: InStock
Rating: 4.3 (129 reviews)

Price:	US $ 3.1-3.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	UKF4-120
Markets:	Eastern Europe,Oceania,Mid East,Western Europe
IP:	66
Color:	Ral 7035
Usage:	Electrical Appliance

Product Description

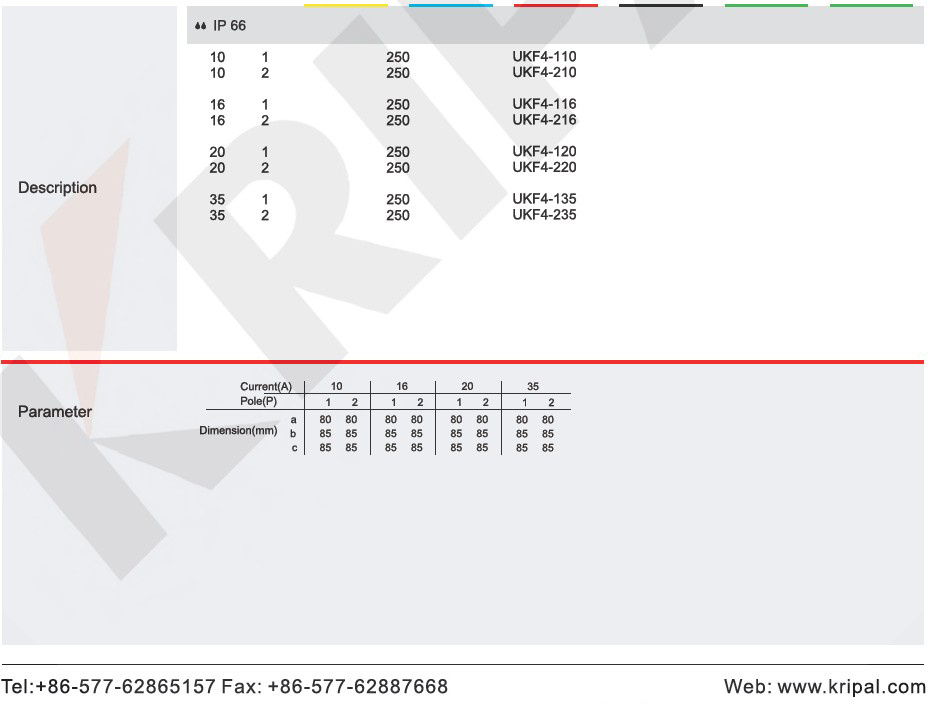

IP66 Weatherproof Mini Isolator Switch

UKF4-110: weather protected mini isolator switch single pole 10A
UKF4-116: weather protected mini isolator switch single pole 16A
UKF4-120: weather protected mini isolator switch single pole 20A
UKF4-135: weather protected mini isolator switch double pole 35A
UKF4-210: weather protected mini isolator switch double pole 10A
UKF4-216: weather protected mini isolator switch double pole 16A
UKF4-220: weather protected mini isolator switch double pole 20A
UKF4-235: weather protected mini isolator switch double pole 35A
Description:
- The mini isolator switch is widely used in power, winery, sporting, outdoor, shipyards and all industries field.
- DPST, 2 Position(OFF-ON), red indicator lamp, surface mounting.
- Easy installation, part of the massive electrical range.
- If you do not need the neon light, please specify when placing order

SAA Certificate:

Model	UKF4-120
Rated Current	20A
Rated Voltage	AC 250V
Type	2 Position(OFF-ON)
Contact	DPST
Waterproof Grade	IP66
Mount Hole Center Distance	69 x 69mm/2.7" x 2.7"(L*W)
Fixing Mount Hole Diameter	6mm/2.4"
Total Size	85 x 85 x 82mm/3.3" x 3.3" x 3.2"(LWH)
External Material	Plastic
Color	Gray RAL7035
Net Weight	215g
Package Content	1 x Isolator Switch

Founded: In 1987;

People of the staff: 500;

Engineers: More than 30

QA/QC: More than 20

Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001

The land space of the company: Amounts to 20000m2

What we do: Products' Design, mold building, production of parts (injection & punching), assembling, and products' Inspection

Main products: Isolator switch, changeover switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker contactor relay and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa
