| Prod Model: |
GK-150-AW-W-L-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Net Weight: |
5.9kg |
| CCT: |
5500-6500K |
| Lumen(Lm) (±10%): |
15190 |
| LED Type: |
CREE |
| LED Qty.: |
120PCS |
| Voltage Frequency: |
AC100-277V 50/60Hz |
| Current: |
1.8A |
| CRI: |
>70 |
| Item Name: |
LED High Bay Light |
| Keyword: |
Linear LED High Bay Light |
| Color Temperature: |
Pure White |
| Lamp Body Material: |
Aluminum Alloy |
| IP Rating: |
IP65 |
| Certification: |
TUV |
| Usage: |
Warehouse, Distribution/Logistic Center, Aisle ... |
| Beam Angle: |
30*70° 70*120°65*65°120*120° |
| LED Chips: |
Seoul Semiconductor and CREE LEDs Optional |
Product Description

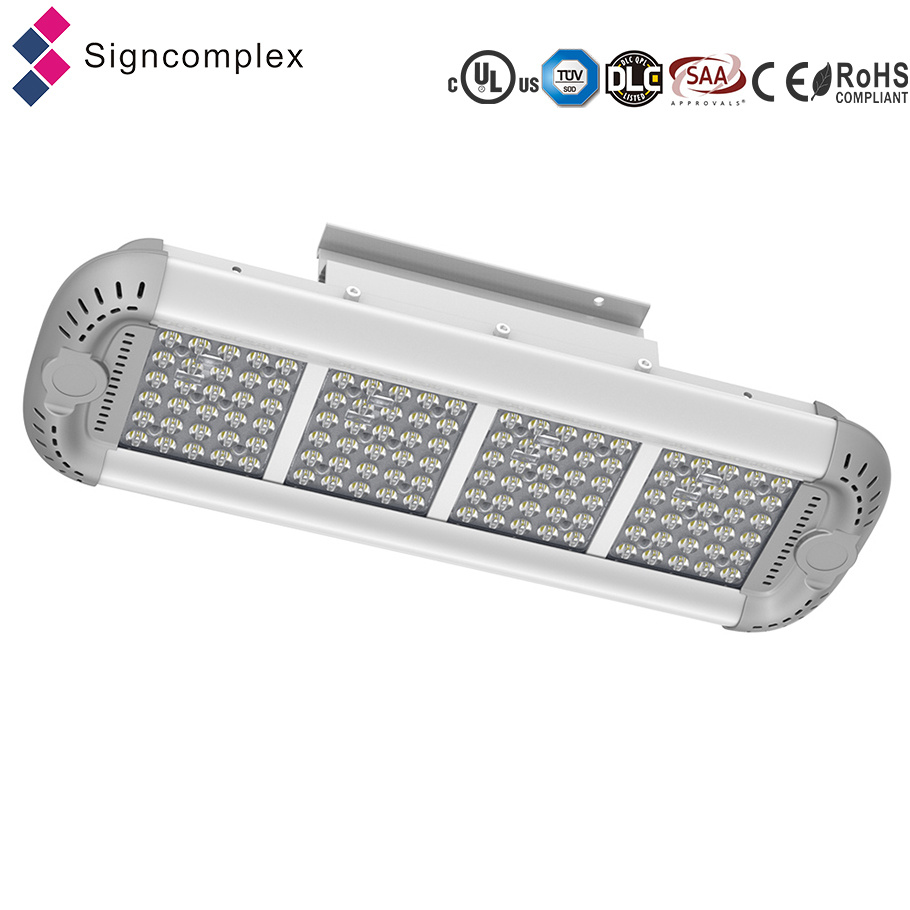

IP65 Brand SEOUL 150w linear led high bay light for narrow aisl
90w 120w 150w 200w 240w 300w available
LiBayTM High Bay&Low Bay
Lighting Series
GK-090/120/150-AW-L/-01/2/4/5
Description:
LiBay is a unique flexible lighting that can be used as normal high bay light but also used as warehouse light.We supply narrow,medium or wide beam angle.30*70-degree and 70*120-degree are designed for warehouse,aisle.65*65-degree and 120*120-degree are suitable for gymnasium,factory,high bay appliance.With modular design,LiBay can be specified in two modules 90W,three modules 120W,four modules 150W,five modules 200W,six modules 240W,seven modules 300W.Efficiency 130lm of fixture,can save 60% energy.
Features:
1.30*70-degree,70*120-degree,65*65-degree,120*120-degree for different applications
2.Modular design,90W-300W are available
3.Low glare,<25
4.Ceiling installation and suspension installation
5.Black and sliver color optional
6.IP65
7.UL,DLC,TUV,CE,SAA approval
8.5 years warranty
Technical parameters :
| Model | Color | CCT | Lumen(lm)
(±10%) | LED Type | LED Qty. | Power
(±10%) | Voltage
Frequency | Current | Beam angle
(°) | CRI | IP | PF | Replace HID |
| GK-150-AW-W-L-01 | white | 5500-6500K | 15190 | CREE | 120pcs | 150W | AC100-277V
50/60Hz | 1.8A | 30°*70°/
70°*120°/
65°*65°/
120°*120° | >70 | 65 | >0.9 | 400W |
| GK-150-AW-NW-L-01 | netural white | 4000-4500K | 14680 |
| GK-150-AW-WW-L-01 | warm white | 2700-3200K | 13870 |
| GK-150-AW-W-L-02 | white | 5500-6500K | 15190 | CREE | 120pcs | 150W | AC100-277V
50/60Hz | 1.8A | >70 | 65 | >0.9 |
| GK-150-AW-NW-L-02 | netural white | 4000-4500K | 14680 |
| GK-150-AW-WW-L-02 | warm white | 2700-3200K | 13870 |
| GK-150-AW-W-L-04 | white | 5500-6500K | 19580 | SEOUL | 120pcs | 150W | AC100-277V
50/60Hz | 1.8A | >70 | 65 | >0.9 |
| GK-150-AW-NW-L-04 | netural white | 4000-4500K | 19640 |
| GK-150-AW-WW-L-04 | warm white | 2700-3200K | 18740 |
| GK-150-AW-W-L-05 | white | 5500-6500K | 19580 | SEOUL | 120pcs | 150W | AC100-277V
50/60Hz | 1.8A | >70 | 65 | >0.9 |
| GK-150-AW-NW-L-05 | netural white | 4000-4500K | 19640 |
| GK-150-AW-WW-L-05 | warm white | 2700-3200K | 18740 |
Applications:
Warehouse,distribution/logistic center,aisle lighting,gymnasium,factory,high bay appliance.
