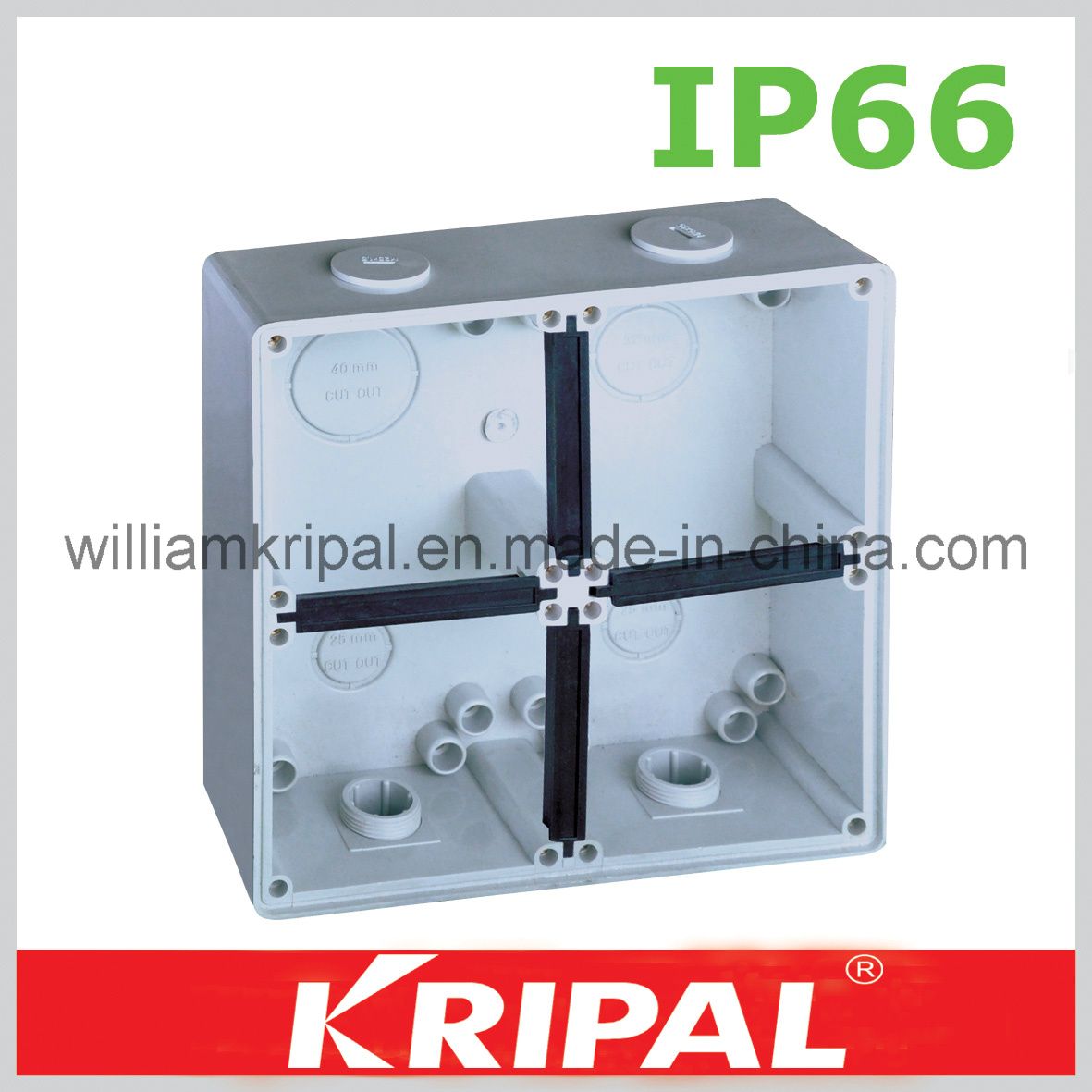

Weather protected back base

The 56 series 4 gang mounting back boxes are moulded in hi-impact polycarbonate and feature a speciall designed mounting bracket which will accommodate the full range of circuit breakers, RCDs and combination MCB/RCDs. Covers suit all 56 series enclosures(minimum standard depth 63mm) and are supplied with neon indicators which can be wired from either the line or load side of the switch.

Regarding this series, our products including:

56E1, 56E2, 56E2S, 56E3, 56E4, 56E6, 56E9, 56E12

Warranty: 2 years

Samples: Provided

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

ZHEJIANG KRIPAL ELECTRIC CO., LTD

Founded: In 1987;
People of the staff: 500;
Engineers: More than 30
QA/QC: More than 20
Certificate: CCC, CB, CE, UL, TUV, Semko, KEMA, SAA, ISO9001
The land space of the company: Amounts to 20000m2

What we do: Products' design, mold building, production of parts (injection & punching), assembling, and products' inspection

KRIPAL products:
Isolator switch, changeover switch, rotary switch, waterproof switch socket, industrial plug socket, cable float level switch, terminal junction box, solar photovoltaic inverter, circuit breaker AC contactor, thermal overload relay, industrial power distribution box and etc.

Main market: Europe, Australia, Middle-east, Asia, Southeast Asia, America, Africa

Type	No. of Gangs	Dims (H)x(W)x(D)	Mounting Points	No. of Conduit Entries (mm)	Cut out Provision(mm)
56E1	1	101 x 101 x 63	8	2 x 25, 1 x 32	1 x 25/32
56ESl	1	101 x 101 x 38	4	1 x 25, 1 x 20	1 x 20/25
56E2	2	198 x 101 x 63	8	2 x 25, 1 x 32	1 x 25, 1 x 32
56ES2	2	198 x 101 x 38	4	1 x 25, 2 x 32	2 x 20/25
56E3	3	294 x 101 x 63	16	2 x 25, 1 x 32	2 x 25, 1 x 32
56E4	4	198 x 198 x 63	16	2 x 25, 2 x 32	2 x 25, 1x 32, 1 x 40
56E6	6	294 x 198 x 63	24	2 x 25, 2 x 32	2 x 25, 2 x 32, 2 x 40
56E9	9	294 x 294 x 63	28	2 x 25, 2 x 32	4 x 25, 1 x 32, 1 x 40
56E16	16	391 x 391 x 63	48	2 x 25, 2 x 32	6 x 25, 6 x 32, 4 x 40

Prod Model:	56E4
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materials:	PC
Type:	Power
Structure:	Open Frame
