| Prod Model: |
ZH1200 |
| Rated Current: |
16A |
| Grounding: |
Standard Grounding |
| Color: |
Red |
| Material: |
Plastic |
| Protection Degree: |
IP67 |
| Poles: |
5p |
| Copper Core: |
Tinned Copper |
| Feature: |
Safe / Waterproof / Durable |
| Delivery Time: |
Within 25 Days After Rec |
| Delivery Methods: |
by Sea / by Air / by |
| Standard: |
Swiss Standard |
| Certification: |
RoHS,Ce,CB,ISO9001 |
| Shape: |
EP |
| Nominal Voltage: |
400V |
| Brand: |
Johnn |
Product Description

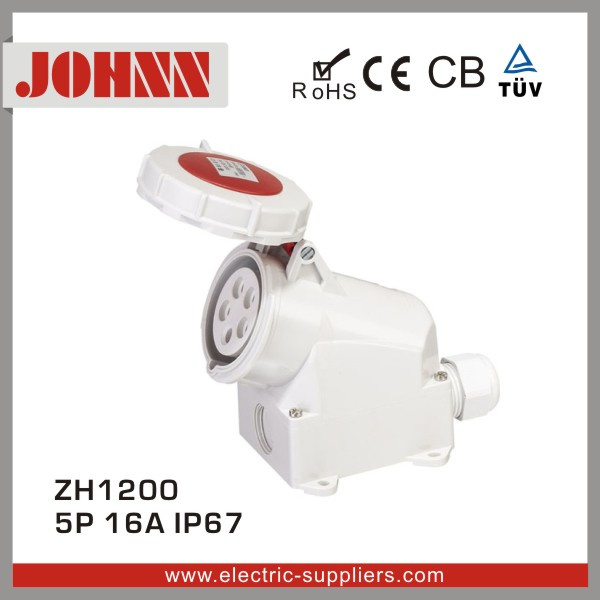

------ Picture of Electrical Industrial Socket ------

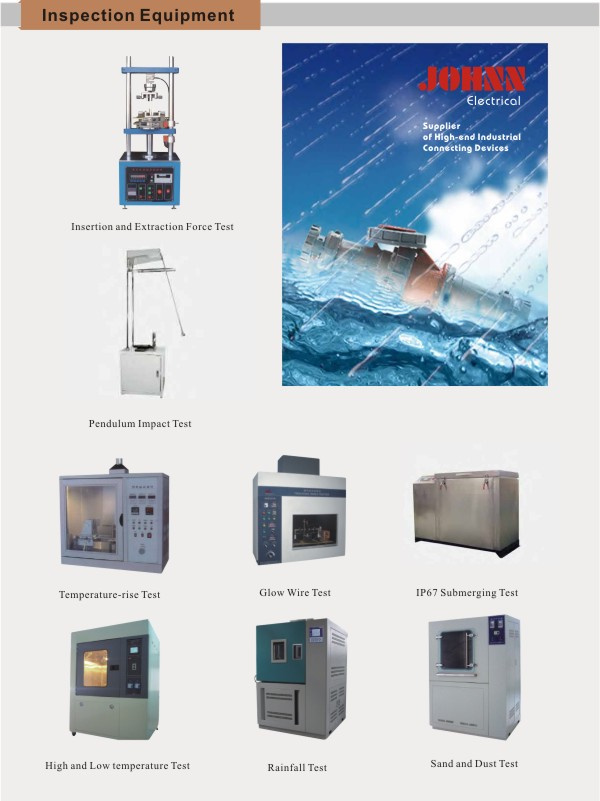

----Inspection Equipment----
----Company Information----As far the company established,we put our whole heart and soul into designing and producing new products meeting the global users,demands."passion,Enthusiasm,Innovation and Devotion"is our corporate,"Spare no effort for pursuit of perfection"is our business philosophy.
Quality is our only faith.During this 12 years,we exported our products to all over the world.Much experience on exporting would help you to finish all kinds of working you required,competitive prices in your market.
---- Detail of Electrical Industrial Socket ---- 1. Model Number: ZH1200
2. Color: Red
3. Material: Plastic
4. Poles: 5P
5. Protection Degree: IP67
6. Rated Current: 16A
7. Rated Voltage:400V
8. Copper Core: Tinned Copper
9. Grounding: Standard Grounding
10. Conductor cross sectional area: 1.5-2.5mm²
11. Feature: Safe / Waterproof / Durable
12. Certification: Rohs / CE / CB
------ Parameters of Industrial Connector ------
| Current | Poles | 110V
50a.60Hz | 230V
50a.60Hz | 400V
50a.60Hz | 500V
50a.60Hz | >50-500V
100-300Hz | >50-500V
a.300-500Hz | Package Unit | Weight |
| 3P 4P 5P 4h 4h 4h | 3P 4P 5P 6h 9h 9h | 3P 4P 5P 9h 6h 6h | 3P 4P 5P 7h 7h 7h | 3P 4P 5P 10h 10h 10h | 3P 4P 5P 2h 2h 2h | PCS/BOX | G/PC |
| 16A | 3 | ZH1193 | ZH1192 | ZH1211 | | | | 10 | 241 |
| 4 | ZH1194 | ZH1195 | ZH1196 | ZH1197 | ZH1212 | ZH1213 | 10 | 267 |
| 5 | ZH1198 | ZH1199 | ZH1200 | | | | 10 | 320 |
| Current | Poles | a | b | c | d | e | e1 | f | g | h | M | m* |
| 16A | 3 | 95 | 102 | 115 | 64.2 | 77.5 | 88 | 5.5 | 5 | 128 | 25 | one M25plug
can be cut. |
| 4 | 95 | 102 | 124 | 64.2 | 77.5 | 88 | 5.5 | 5 | 128 | 25 |
| 5 | 95 | 102 | 129 | 64.2 | 77.5 | 88 | 5.5 | 5 | 132 | 25 |
| Conductor cross-sectional area (mm²) Min To Max 1.5-2.5 |
Line with the German industrial standard DIN VDE 0623, the European / International standard EN / IEC 60309-2.
------ Packaging ------
1. Model Number: ZH1200
2. PCS/BOX: 10PCS
3. PCS/CTN:60PCS
4. Package Size: 56*47*44.5CM
5. Weight:24/22KGS
------ Shipping&Payment ------
1. Delivery Time: Within 25 days after receipt deposit.
2. Delivery Methods: By Sea / By Air / By Express ( DHL, FEDEX, TNT,UPS and etc ).
3. Payment: L/C / T/T / BL / Western Union / MoneyGram.
