IP67 Plastic 10W LED Driver Waterproof 24V LED Power Supply

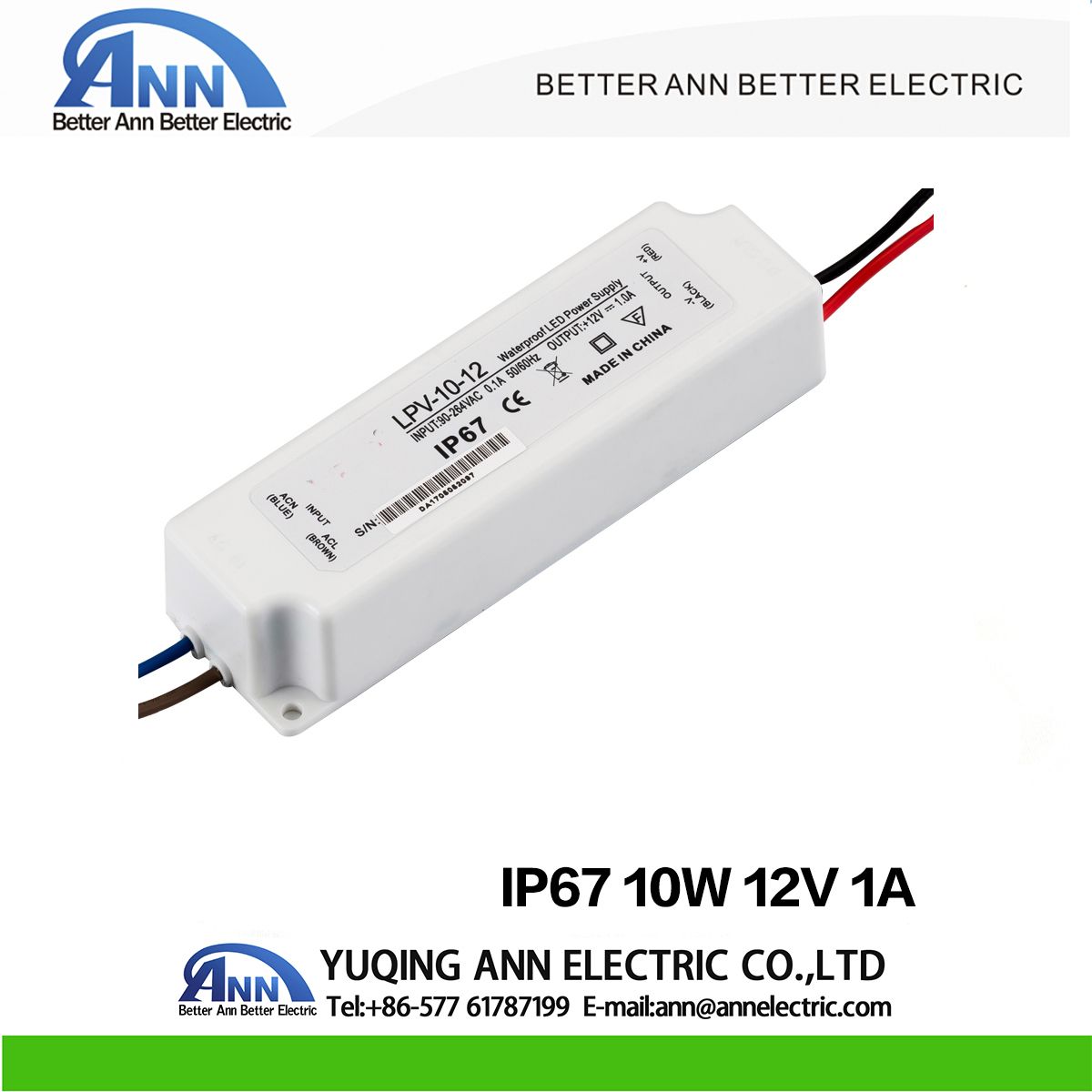

Name: IP67 Plastic 10W LED Driver Waterproof 24V LED Power Supply
Brand: all-electronics-online.com
SKU: 840189765
Availability: InStock
Rating: 4.3 (137 reviews)

Price:	US $ 6.5-8/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPV-10
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

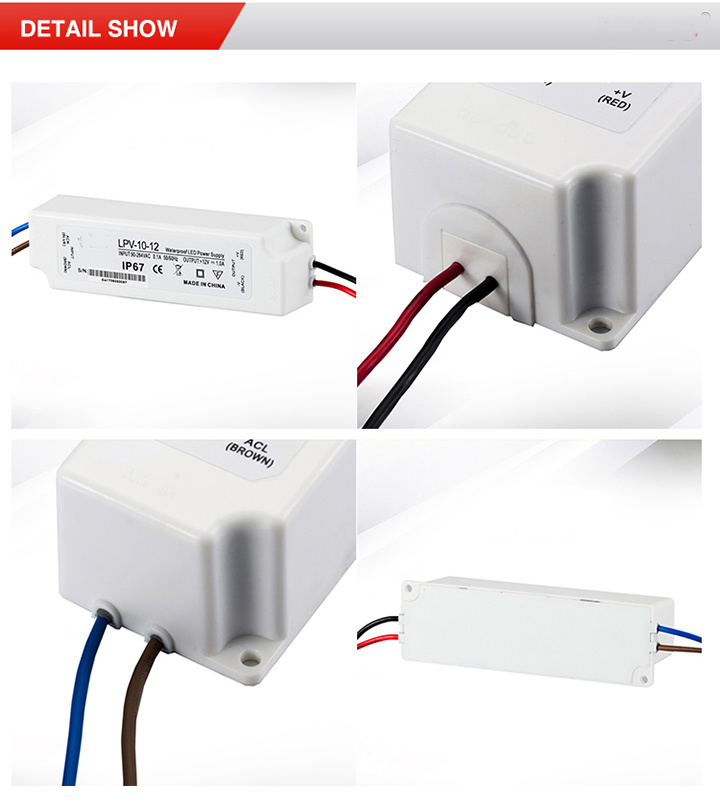

10W waterproof Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 12 months warranty

Specifications:

10W Transformer 12V ac dc Plastic Waterproof Switching Power Supply

Model	LPV-10-5E	LPV-10-12E	LPV-10-15E	LPV-10-24E
Dc output voltage	5V	12V	15V	24V
Rated output current	2A	1A	0.65A	0.5A
Output current rage	0-2A	0-1A	0-65A	0-0.5A
Rated Power	10W	10W	10W	10W
Wave and noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p
Voltage tolerance	±5%	±5%	±5%	±5%
Line Regulation	±1%	±1%	±1%	±1%
Load Regulation	±2%	±2%	±2%	±2%
Efficiency	71%	81%	83%	83%
AC input voltage range	90 ~ 264VAC 127 ~ 370VDC 47 ~ 63Hz
Input current	0.55A/115VAC 0.35A/230VAC
AC INnrush current	COLD START 70A(twidth=215μs measured at 50% Ipeak) at 230VAC
Overload proctection	110 ~ 150% rated output power
Over-voltage protection	5.75-6.75V	13.8-16V	17.5-21V	28-32V
Over-voltage protection	Protection type : Shut off o/p voltage, clamping by zener diode
Setup rise time	500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load
Hold up time	50ms/230VAC 16ms/115VAC at full load
Withstand voltage	I/P-O/P:1.5KVAC
Isolation resistance	I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH
Working temperature	-30°C~+70°C
Overall dimension	1183526mm (LWH)
Safety standards	EN60950-1,IP67 approved
EMC standards	compliance to EN55024, light industry level, criteria A
Weight	0.22Kgs
