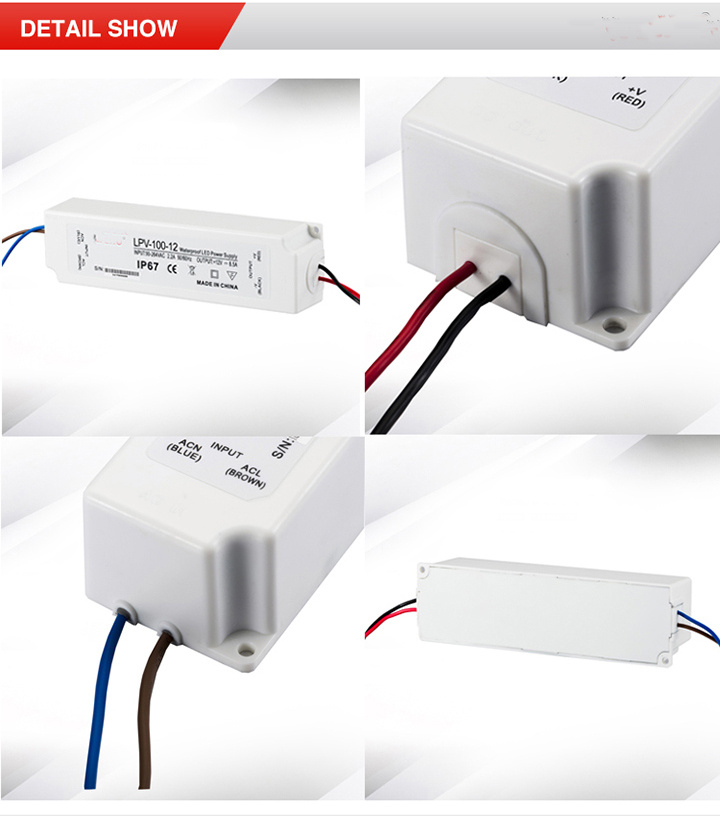

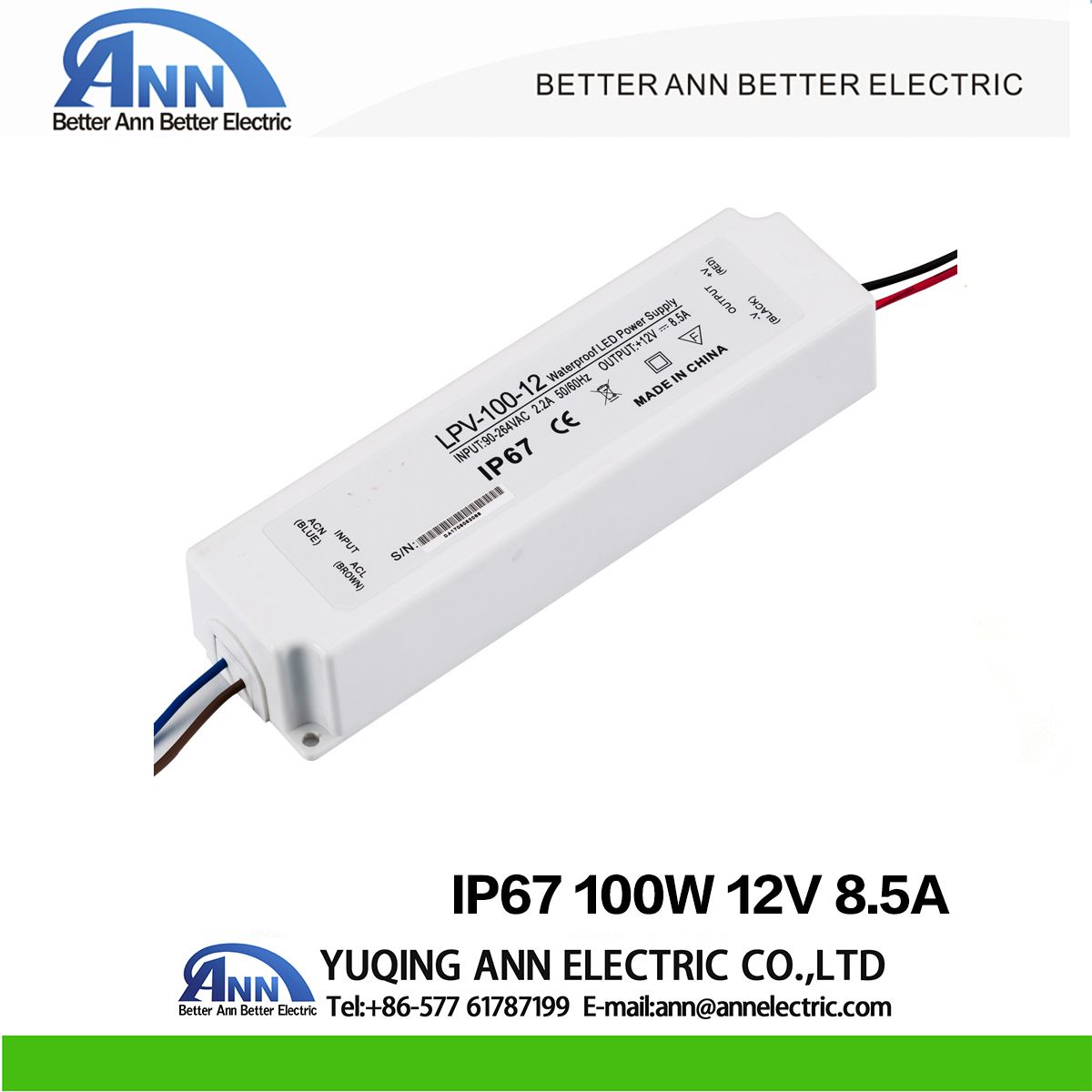

IP67 Plastic Power Supply Waterproof LED Driver 100W 12V
| Price: |
US $ 16-18/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Description
100W waterproof Switching Power SupplyFeatures:
1. DC Output 5v 12v 24v
2. AC input range selectable by switch
3. Protections: Short circuit / Overload / Over voltage / Over temperature
4. 100% full load burn-in test
5. Low cost, high reliability
6. 12 months warranty
Specifications:
IP67 Plastic Power Supply Waterproof LED driver 100w 12v
| | MODEL | LPV-100-5E | LPV-100-12E | LPV-100-15E | LPV-100-24E | LPV-100-36E | LPV-100-48 E |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 12A | 8.5A | 6.7A | 4.2A | 2.8A | 2.1A |
| CURRENT RANGE | 0 ~ 12A | 0 ~ 8.5A | 0 ~ 6.7A | 0 ~ 4.2A | 0 ~ 2.8A | 0 ~ 2.1A |
| RATED POWER | 60W | 102W | 100.5W | 100.8W | 100.8W | 100.8W |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
| VOLTAGE TOLERANCE | ±8.0% | ±5.0% | | | | |
| LINE REGULATION | ±1.0% | | | | | |
| LOAD REGULATION | ±6.0% | ±2.0% |
| SETUP, RISE TIME | 2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC |
| HOLD UP TIME (Typ.) | 50ms/230VAC 14ms/115VAC at full load |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY (Typ.) | 80% | 85% | 87% | 88% | 88% | 89% |
| AC CURRENT | 2.2A/115VAC 1.2A/230VAC |
| INRUSH CURRENT(Typ.) | COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC |
| CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units
(circuit breaker of type C) at 230VAC |
| LEAKAGE CURRENT | 0.25mA / 240VAC |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
Protection type : Hiccup mode, recovers automatically
after fault condition is removed |
| OVER VOLTAGE | 5.75 ~ 6.75V | 13.8 ~ 16.2V | 17.25 ~ 20.25V | 27.6 ~ 32.4V | 41.4 ~ 48.6V | 55.2 ~ 64.8V |
| Protection type : Shut down o/p voltage, re-power on to recover |
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70ºC (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +80ºC, 10 ~ 95% RH |
| TEMP. COEFFICIENT | ±0.03%/ºC (0 ~ 50ºC) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for
60min. each along X, Y, Z axes |
SAFETY &
EMC | SAFETY STANDARDS | IP67 approved. Design refer to EN60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25ºC/ 70% RH |
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A(≤80% load), EN61000-3-3 |
| EMC IMMUNITY | EN55024, light industry level, criteria A |
| OTHERS | MTBF | 703Khrs min. MIL-HDBK-217F (25ºC) |
| DIMENSION | 190*52*37mm (L*W*H) |
| PACKING | 0.63Kg;20pcs/13.6Kg/0.55CUFT |
| Prod Model: |
LPV-100-E |
| Output Type: |
Single |
| Warranty: |
1 Year |
| Output Power: |
51 - 100W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Brand: |
Ann |
