Name: IR Remote Control for HDMI
Brand: all-electronics-online.com
SKU: 809631845
Availability: InStock
Rating: 4.4 (103 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LPI-HDMI21
Application:	Audio / Video Players
Signal Transmission:	IR Remote Control
Type:	Button
Certification:	CE
Universal:	Not Universal
Transmission Distance:	<50m
Voltage:	3V
Material:	Plastic
Battery Type:	AAA Battery

Product Description

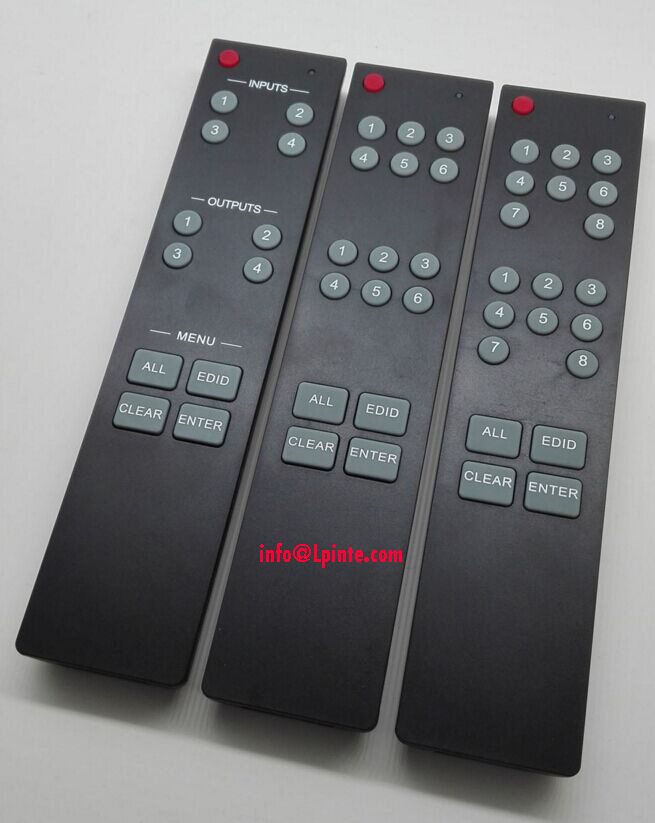

IR REMOTE CONTROL FOR HDMI
SLIM REMOTE CONTROL
Distance up to 20 meters
LPI-HDMI21

Number of keys		13/17/21

Case		ABS Plastic
Buttons Type		PET Membrane
Textplate		YES

Battery		DC3.0V/AAA*2PCS

Button letter: Customized
NEC IC/Data code: Customized
Logo: Customized
Plastic color: Customized

1,Operation Force
Each key's operation force is in the range of: 180±40g.f and total deviation in 50g.f. Base on Center.
2,Key Stroke
Vertical press Key with force of 180g, the key stroke within the range of: 0.8±0.2mm Base on Center.
3,Straight Distance: Straight Distance above 8.0M
4,Receiver Direction:Up Down Left Right Direction 15? at min.3M Distance.
5,Room Temp:25ºC
6,Room Humi:65~80% RH
8,Power Voltage: DC 3.0V
9,Test Environment illumination: 350Lux
10,Leakage Currency: Under 3uA No key pressed
11,Working Voltage DC2.2V~DC3.4V
12,Contact Resistance :under 3K Ohms

LP International Industries Co Ltd was established in 2004, located in Shenzhen China. Focus on wisdom, auto, high technology, energy saving business, OEM/DOM are welcome.

LP INTL has his own design, SMT and assembly facilities which achieved ISO9001, ISO14001 management system.

And take serious QC system to make sure products meet inquirements.

Only One Earth!

LP INTL takes care of the environment and take action on it. All of our material RoHS compliant.

Let's together make the life more better.

Main Products:

1, LEDs:

Chip LED, Lamp LED, SMD LED, power LED, AC LED, full spectrum grow LED

LED Streetlight Road light, LED module Kit, Retrofit LED module, accessories

LED high bay luminaire, LED floodlight, LED tunnel light

LED underwater light, PAR56 LED Swimming pool lights

LED Spotlight, LED bulb, LED tube, LED grow lights, LED aquarium lights

2, Waterproof IP67 Remote controls, Remote Controls

Wireless, Auto Parts, Remote Control Switch

Application: TV, DVD, DVB, STB, MUSIC, MEDIA, SPEAKER, AUDIO...

More new items waiting for you.

Contact us now for more details.
