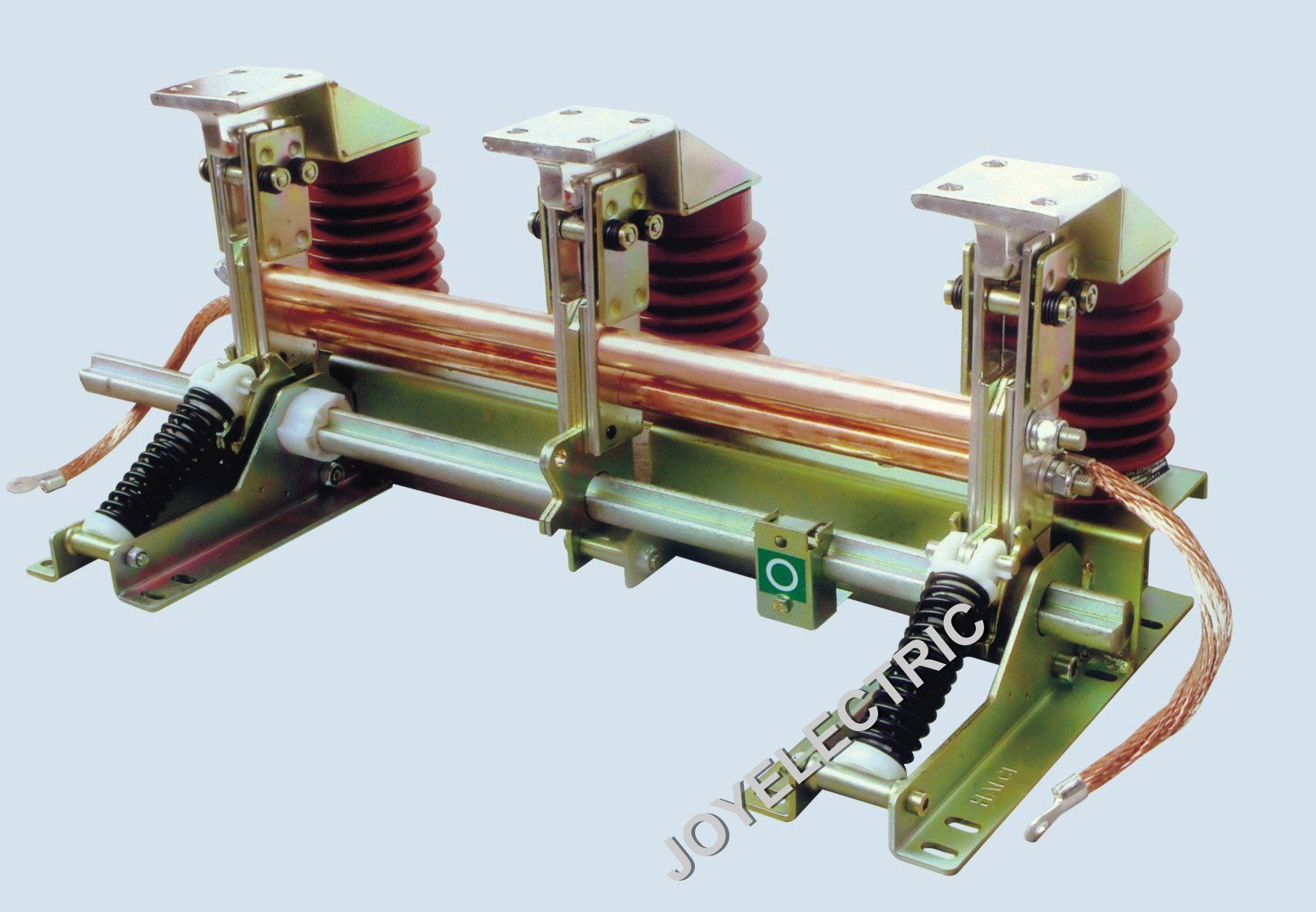

Jn15-12/50 Indoor Hv a. C Earthing Switch

Name: Jn15-12/50 Indoor Hv a. C Earthing Switch
Brand: all-electronics-online.com
SKU: 835861845
Availability: InStock
Rating: 4.9 (24 reviews)

Price:	US $ 100-300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Ambient Condition:
1. The height above sea level shall be no more than 1000 meter;
2. Ambient air temperature: +40⁰C~ -25⁰C
3.Seismic intensity: no more than 8 magnitude
4 The average relative humidity of a day should be no more than 95%, that of a month should be no more than 90%
5.Filth degree: II
Main Technical Parameter

Item		Unit	Data
Rated voltage		kV	12
Rated short time withstand current		kA	50
Rated duration of short circuit		S	2
Rated short circuit making current		kA	125
Rated peak withstand current		kA	125
Rated insulation level	Power frequency withstand voltage(1min)	kV	Pole to ground	42
	Lightning impulse withstand voltage		Between phases	75
Mechanical Life		times	2000

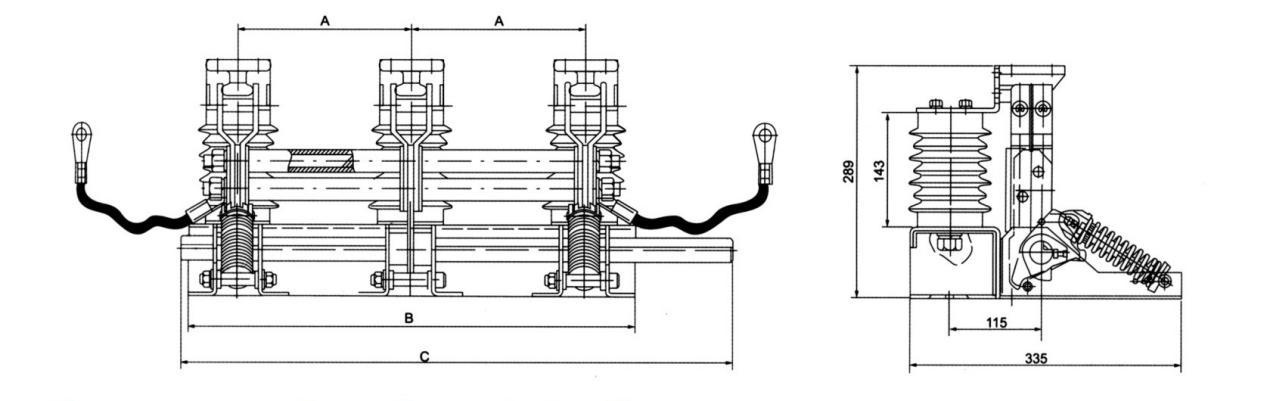

Outline drawing and Installation Dimension of JN15-12/50

Dimension of installation hole

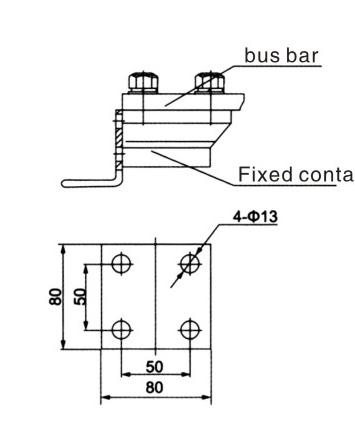

Busbar wiring terminal diagram

Mating Table

A	B	C	D
210	544	655	516
230	584	695	556
250	624	735	596
275	674	785	646

Prod Model:	JN15-12/50
Application:	High-voltage
Brand:	Joyelectric
