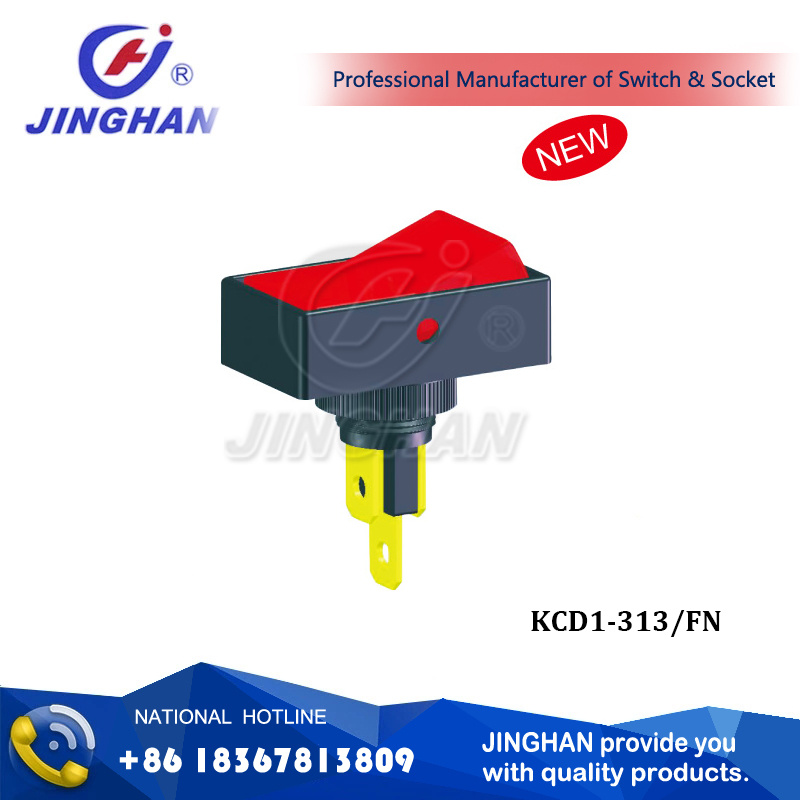

Kcd1-313/Fn on-on Rocker Switch 34*20mm

Name: Kcd1-313/Fn on-on Rocker Switch 34*20mm
Brand: all-electronics-online.com
SKU: 816068025
Availability: InStock
Rating: 4.3 (128 reviews)

Price:	US $ 0.38-0.4/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Packaging & Delivery

Packaging Details:	Cartons and plastic bags,depends on the customer's demand
Delivery Detail:	Shipped in 30 days after payment

Product Description

Main technical characteristics

Rocker Switch
Rating		6A 250VAC 10A 125VAC		Operating Temp.	-25+85°C
Contact Resistance		≤50MΩ		Electrical life	≥10000 Cycles
Insulation Resistance		≥100MΩ		Withstand Voltage	1500VAC/5S
Material	Housing & Light bracket		PA66	Contacts	Copper with compound silver
	Push button		PC	Terminals & Mid pins	Copper with silver plated
	Waterproof cover(Optional)		PVC	Side pins	Brass with silver plated

FAQ
Application: The products are widely used in electronic instruments, automatic machine controllers, electrical gardening engines, household appliances and electronic toys, etc.
Quality: We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.
Other:Your attention and trust are our biggest motivation ! Let our cooperation make the new height of the career!

Prod Model:	KCD1-313/FN
Max. Current:	10A
Max. Voltage:	250VAC
Mechanical Life:	10000 Cycles, 10000-50000cycles
Standard:	Standard
Certification:	CQC,TUV,UL
Condition:	New

YUEQING JINGHAN ELECTRONIC Co., Ltd

Professional Manufacture of Switch & Socket

Website: http://www.jinghanele.com

Glad to hear that you are on the market for switch, we specialize in this field for 13 years, with good quality and pretty competitive price. Also we have our own professional designers to meet your requirements.

Our rocker switch good quality, plastic material environmental protection and flame retardant. Our rocker switches have pass CE, TUV, CQC, RoHS certifications.

If you want to see more items, please visit our website http://www.jinghanele.com

We have many kinds of switches. What u have seen is only the tip of the iceberg, If you want to know more, feel free to contact us!

Should any of these items be of interest to you, please let us know. We will be happy to give you a quotation upon receipt of your detailed requirements.
