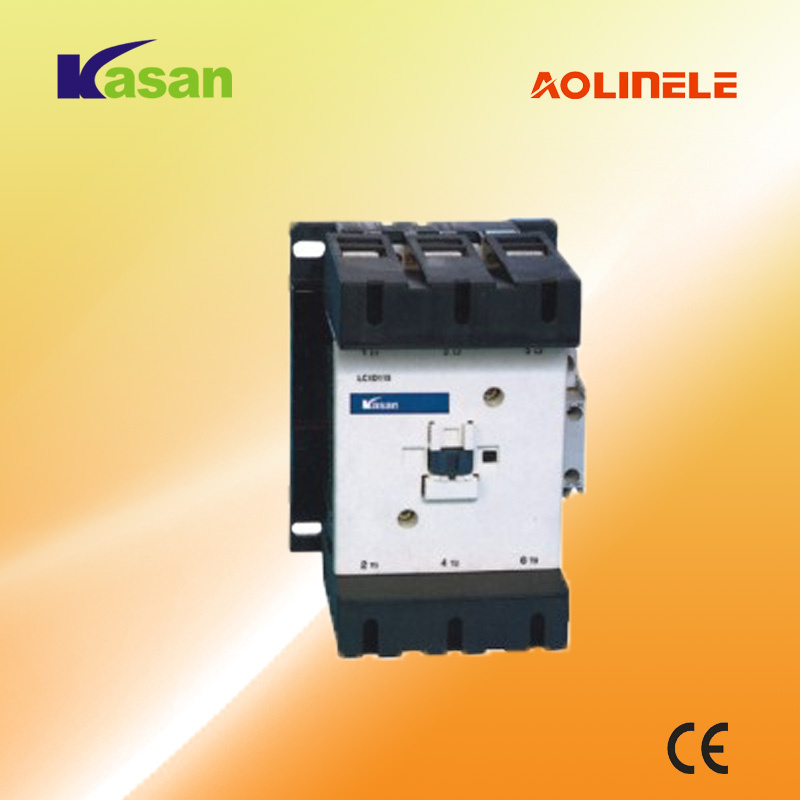

Klc1-Dn 115/150/170 Series AC Contactor

Name: Klc1-Dn 115/150/170 Series AC Contactor
Brand: all-electronics-online.com
SKU: 689982602
Availability: InStock
Rating: 4.9 (43 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LC1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

LC1-D115 ac contactors ac3 contactors , 220v ac contactor

Application:

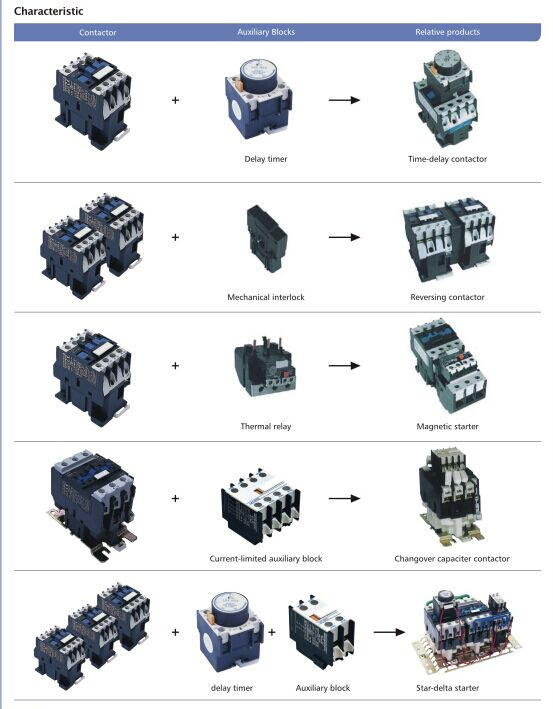

LC1-D series ac contactor is used in electric circuit 50Hz or 60Hz, or in 40-400Hz with special coil, rated voltage up to 600V, rated current up to 630A, to connect/disconnect or other frequent control of the main circuit. They can be connected to relays to control all kinds of electric device, motors and circuits. They can be combined together with auxiliary contact group, air delayer, mechanical interlocking contactors and etc, to constitute delayer, reversible contactor or star-triangle starter. They also be organized into electromagnetic starter by combined with the thermal relay.

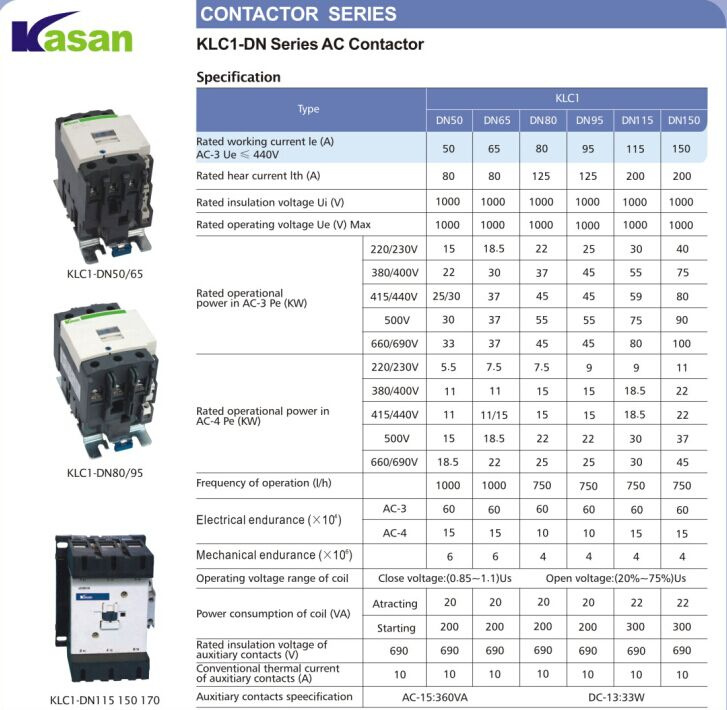

Type			LC1-D115	LC1-D150	LC1-D170	LC1-D205	LC1-D245	LC1-D300	LC1-D410	LC1-D475	LC1-D620
Rate operationalcurrent le(A)	AC-3	380V	115	150	185	225	265	330	400	500	630
	AC-3	660V	86	107	118	125	170	325	305	355	460
	AC-4	380V	52	60	79	85	105	217	138	147	1880
	AC-4	660V	49	61	69	82	98	118	135	145	170
Controlled squirrel-cage asynchronous motor's max power pe(KW)	AC-3	380V	55	75	90	110	132	160	200	250	335
	AC-3	660V	80	100	110	129	160	220	280	335	450
	AC-4	380V	25	30	40	45	55	63	75	80	100
	AC-4	660V	45	55	30	75	90	110	129	140	160
Conventional thermal current(A)			200	250	275	315	350		500	700	1000
Rated operational voltage (Ue)			380,660
Rated insulation voltage (Ui)			660
Operating frequency			IEC947, GB14048
AC-3	Electrical endurance		60X10⁴		50X10⁴				30X10⁴		20X10⁴
AC-3	operating frequency		600						300
AC-4	Electrical endurance				15X10⁴				8X10⁴		5X10⁴
AC-4	operating frequency		150
Mechanical endurance (X10⁶)			3X10⁴						1X10⁴
Auxiliary Contacts	Conventional thermal current		10
	Electrical endurance	AC-15	60X10⁴		50X10⁴				30X10⁴		20X10⁴
	Electrical endurance	AC-13	60X10⁴		50X10⁴				30X10⁴		20X10⁴

Yueqing Kasan Electric Co., Ltd. is a Subordinate of Kasan Electrical Group Co., Limited, Which Is Wholly Invested by Kasan Group, Is One of The Best Manufacturer and Exporter Companies in Liushi, Wenzhou. China, We Have a Specializing in The Export of Various Low Voltage Electrical Products with Over 50 Series and More Than 6000 Specifications. Such as Mini Circuit Breakers, Earth Leakage Circuit Breakers, Mouled Case Circuit Breakers, AC Contactor, Magnatic Starter, Distribution Box, Fuse, Switch, Industrial Plug & Socket and So on. They Are Sold with Fashionable Designed, Favorable Price and Competing Well in The World Market. It Is in Accordance with ISO 9000 Internation Quality System. All Products Have Certificate of Conformity for Electrical Equipment From Government and Have Won The Safety Approvals of CE Standard.

in Near, Our Company Continued Adopts International Advanced Technolog and Updating Our Products, Have Owned Advanced Equipment of Production, Inspection and Experiment, Powerful Technical Force and The Network System of Sales, Services All Over The World. We Adhere to The Guide of Market and The Principle of Living on Quality, Developing on Credit.

We Wish to Make Friends with All Over The World to Expand Our Products Market.
