KPL Series nickel cadmium batteries are designed for general industrial applications where absolute reliability is a necessity. Service-proven pocket-plate technology ensures long uninterrupted battery life without the risk of sudden loss of power. KPL Series batteries are suitable for low discharge rate applications (between 1 hour to 100 hours) such as railroad signaling and control systems, photovoltaic, emergency lighting, telecommunications, etc.
In many applications along the track, batteries are used to meet peak electricity demand and to provide back-up power to all systems in case of emergency. These batteries must meet arange of demanding
requirements.
• Complete reliability over a long, predictable lifetime.
• Excellent electrical performance and high resistance to electrical and mechanical abuse.
• Operation in ambient temperatures from +40°C (+104°F) in hot climates to -30°C (-22°F) in cold regions, with extremes from +55°C (+131°F) to -40°C (-40°F).
• Minimal maintenance needs.
• Capable of operating with renewable energy sources.
Only nickel-cadmium technology can meet these requirements cost-effectivelythere own the wide range capacity(10~1200Ah) in KPL series, reference the following:
Cell
Type | Nominal
Voltage
(V) | Rated Capacity (Ah) | Dimension
(mm) | Thread of pole | Weight (filled) (Kg) | Electrolyte Volume (L) | Container Material |
| L | W | H |
| GN10 | 1.2 | 10 | 85 | 39 | 156 | M8 | 1.0 | 0.5 | PP |
| GN20 | 1.2 | 20 | 114 | 52 | 266 | M10 | 2 | 0.6 | ABS |
| GN20-(2) | 1.2 | 20 | 82 | 43 | 258 | M10 | 1.3 | 0.3 | ABS |
| GN20-(3) | 1.2 | 20 | 135 | 54 | 265 | M10 | 1.8 | 0.58 | ABS / PP |
| GN22 | 1.2 | 22 | 112 | 31 | 220 | M8 | 1.2 | 0.3 | ABS |
| GN30 | 1.2 | 30 | 114 | 52 | 266 | M10 | 2.2 | 0.5 | ABS |
| GN30-(2) | 1.2 | 30 | 135 | 54 | 265 | M10 | 2 | 0.5 | ABS / PP |
| GN40 | 1.2 | 40 | 114 | 52 | 266 | M10 | 2.3 | 0.42 | ABS |
| GN40-(2) | 1.2 | 40 | 135 | 54 | 265 | M10 | 2.4 | 0.5 | ABS / PP |
| GN40-(3) | 1.2 | 40 | 141 | 66 | 226 | M10 | 2.6 | 0.5 | PP |
| GN45 | 1.2 | 45 | 138 | 61 | 266 | M10 | 3 | 0.85 | ABS |
| GN45-(2) | 1.2 | 45 | 141 | 66 | 226 | M10 | 2.8 | 0.7 | PP |
| GN50 | 1.2 | 50 | 138 | 61 | 266 | M10 | 3.2 | 0.7 | ABS |
| GN50-(2) | 1.2 | 50 | 141 | 71 | 295 | M10 | 3.5 | 0.9 | PP |
| GN60 | 1.2 | 60 | 143 | 76 | 275 | M10 | 4 | 1.1 | ABS |
| GN60-(2) | 1.2 | 60 | 135 | 53 | 370 | M10 | 3.9 | 1.0 | PP |
| GN60-(3) | 1.2 | 60 | 141 | 71 | 295 | M10 | 4 | 0.9 | PP |
| GN60-(4) | 1.2 | 60 | 139 | 79 | 295 | M10 | 4.3 | 1.13 | ABS |
| GN65 | 1.2 | 65 | 143 | 76 | 295 | M10 | 4.7 | 1.1 | ABS |
| GN70 | 1.2 | 70 | 139 | 79 | 295 | M10 | 4.4 | 1 | ABS |
| GN70-(2) | 1.2 | 70 | 141 | 71 | 295 | M10 | 4.3 | 0.8 | PP |
| GN70-(3) | 1.2 | 70 | 143 | 76 | 275 | M10 | 4.3 | 1 | ABS |
| 2GN70 | 2.4 | 70 | 195 | 79 | 331 | M8 | 8.3 | 2.5 | PP |
| GN80 | 1.2 | 80 | 143 | 76 | 275 | M10 | 4.7 | 0.95 | ABS |
| GN80-(1) | 1.2 | 80 | 141 | 71 | 295 | M10 | 4.6 | 0.9 | PP |
| GN80-(2) | 1.2 | 80 | 139 | 79 | 295 | M10 | 4.7 | 1 | ABS |
| GN90 | 1.2 | 90 | 139 | 79 | 362 | M10 | 5.9 | 1.4 | ABS / PP |
| GN100-(2) | 1.2 | 100 | 139 | 79 | 362 | M10 | 6 | 1.4 | ABS / PP |
| GN100-(3) | 1.2 | 100 | 143 | 100 | 280 | M10 | 6 | 1.4 | ABS |
| GN110 | 1.2 | 110 | 139 | 79 | 362 | M10 | 6 | 1.4 | ABS / PP |
| GN110-(3) | 1.2 | 110 | 143 | 100 | 280 | M10 | | | ABS |
| GN120 | 1.2 | 120 | 139 | 79 | 362 | M10 | 6.2 | 1.3 | ABS/PP |
| GN120-(3) | 1.2 | 120 | 143 | 100 | 280 | M10 | | | ABS |
| GN125 | 1.2 | 125 | 139 | 79 | 362 | M10 | 6.4 | 1.17 | ABS / PP |
| GN150 | 1.2 | 150 | 167 | 162 | 345 | M20×1.5 | 12 | 3 | ABS |
| GN150-(2) | 1.2 | 150 | 164 | 104 | 345 | M20×1.5 | 9.3 | 2 | ABS / PP |
| GN175 | 1.2 | 175 | 167 | 162 | 345 | M20×1.5 | 12.5 | 3.25 | ABS |

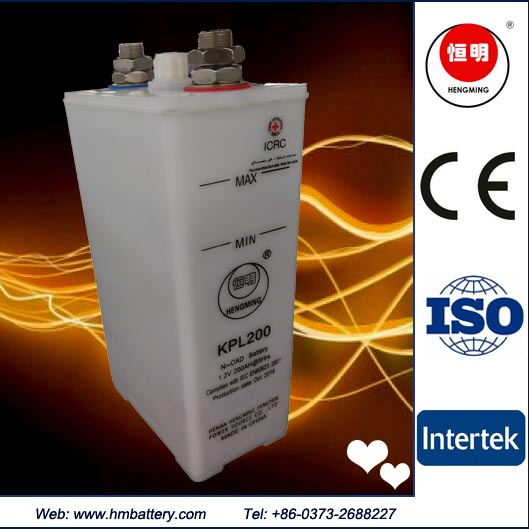

| GN200 | 1.2 | 200 | 167 | 162 | 345 | M20×1.5 | 14 | 3.3 | ABS |
| GN250 | 1.2 | 250 | 167 | 162 | 345 | M20×1.5 | 14 | 3.4 | ABS |
| GN300 | 1.2 | 300 | 282 | 170 | 348 | M20×1.5 | 22.5 | 5 | ABS |
| GN300-(2) | 1.2 | 300 | 176 | 161 | 540 | M16/20 | | | ABS |

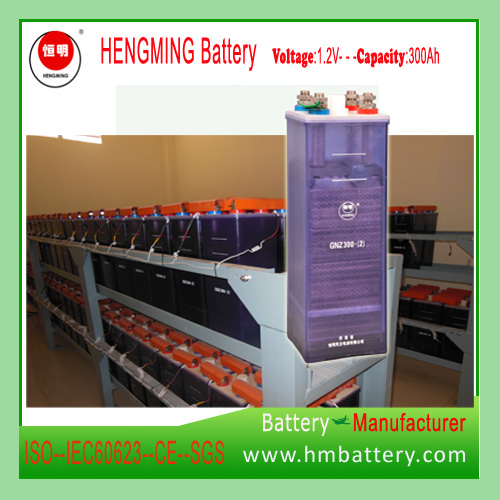

| GN300-(3) | 1.2 | 300 | 277 | 145 | 450 | M16 | 21 | 5.2 | PP |
| GN400 | 1.2 | 400 | 282 | 170 | 348 | M20×1.5 | 24 | 4.5 | ABS |
| GN500 | 1.2 | 500 | 285 | 172 | 490 | M20×1.5 | 33.6 | 7.8 | ABS |
| GN600 | 1.2 | 600 | 285 | 172 | 490 | M20×1.5 | 34 | 7.5 | ABS |
| GN700 | 1.2 | 700 | 285 | 172 | 490 | M20×1.5 | 40 | 9.4 | ABS |
| GN800 | 1.2 | 800 | 395 | 185 | 560 | M20×1.5 | 57.5 | 15.5 | ABS |
| GN900 | 1.2 | 900 | 395 | 185 | 560 | M20×1.5 | | | ABS |
| GN1000 | 1.2 | 1000 | 395 | 185 | 560 | M20×1.5 | | | ABS |
| GN1100 | 1.2 | 1100 | 395 | 185 | 560 | M20×1.5 | | | ABS |
| GN1200 | 1.2 | 1100 | 395 | 185 | 560 | M20×1.5 | | | ABS |
HengMing Group is a high-tech company in Henan with more than $10 million in capital 30 years of experience. Our factory covers an area of 16, 000 square meters manned by 280 workers including 10 professional engineers. Hengming-branded products are popular in mainland China.
We offer Ni-CD batteries in KPL, KPM, KPH, KPX series. They are widely used in the Railway signaling, Alarms, Telecommunications, UPS, DC power sources, Power plant, Engine starting, Emergency back-up power, etc.
We offer Ni-Fe solar batteries in TN series. They are widely used for Solar energy, On-gird off-gird PV power system, specially suitable for solar photovoltaic applicationsrenewable energy storage applications.
We offer Ni-MH pocket type batteries, capacity range from 10Ah to 1200Ah.
HengMing's products have been exported to more than 20 countries and regions including Singapore, South Korea, Malaysia, the United States, Spain, Iran, Mexico, Pakistan, Bangladesh, Indonesia, Poland, Turkey, etc
