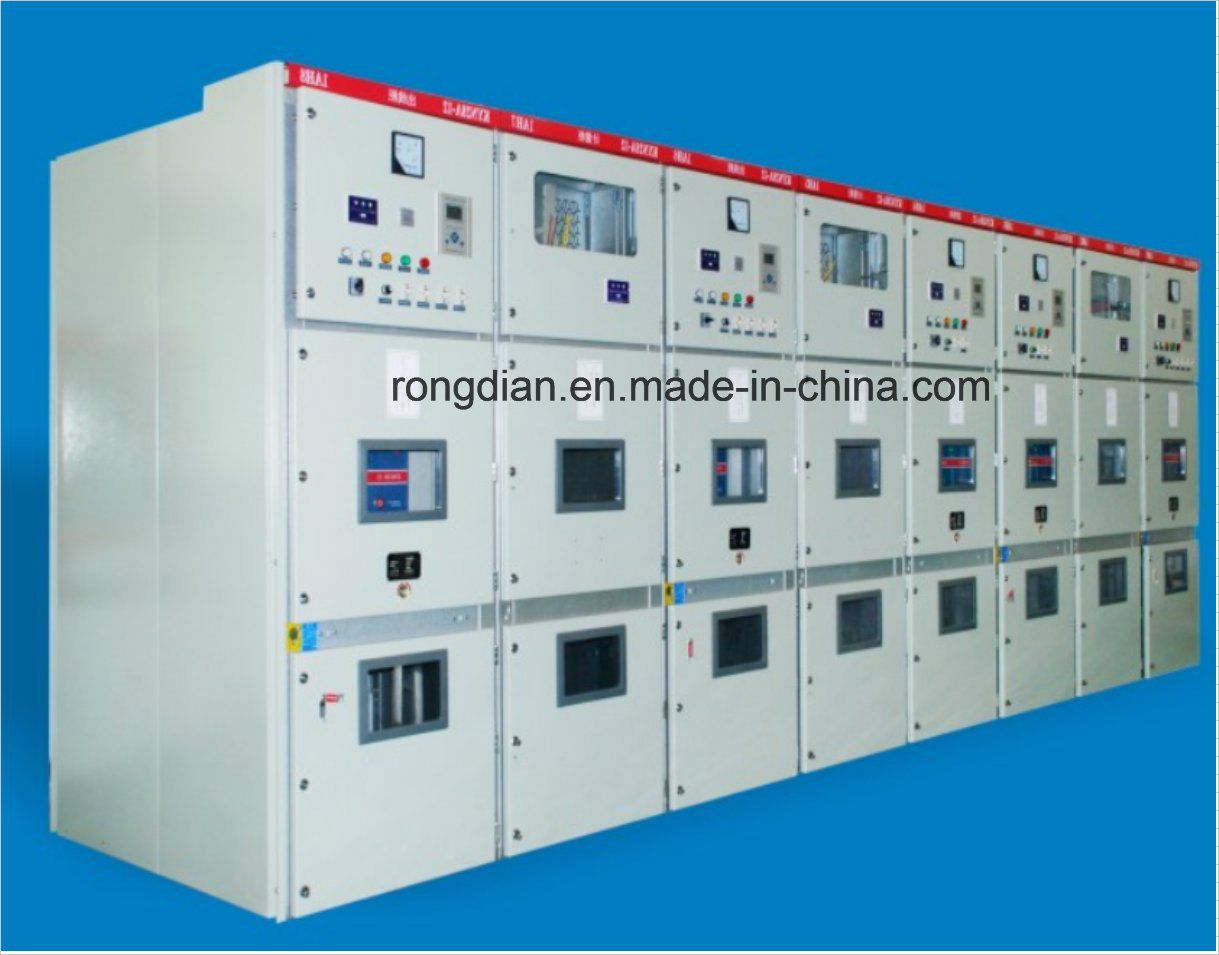

Kyn28A-12 Model Intermediate Armored Metal Sealed High Voltage Switchgear Cabinet
| Price: |
US $ 500-10000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
KYN28A-12 Armored Metal Switchgear |
Product Description
1. Product name:
KYN28A-12 Model Intermediate Armored Metal Sealed High Voltage Switchgear Cabinet
2. Product description:
Based on absorbing domestic and international advanced manufacturing skills, Shenzhen Rongdian Enterprise Co., Ltd has designed and developed a new product KYN28A-12 Model Armored Metal Movable Alternating Sealed Switchgear, which is applied in three-phase electric power system of rated voltage 3-12KV, 50HZ and rated current 630-3150A. Power station use it to finish electricity transmission and substation of power electricity system. Industrial and mining enterprises use it to get and distribute power and realize the goal of control, protection and detection. It can be used to start high voltage electromoter frequently and meet demand of five-prevention chain. The switchgear can be matched VD4 vacuum circuit breaker of ABB company and also can be matched domestic VIS vacuum circuit breaker. It is a kind power distribution equipment of superior performance, having those advantages of flexible combined solution, compact structure, safety reliability, convenient maintainance, impact resistance, corrosion resistance and so on.
3. Main applications:
The intermedium switchgear is applied in power distribution equipment of three phase alternative current 50Hz and rated voltage 12kV. It is used widely in cable ring net of processing industry and civil and power supply terminal. And it is specially applied in electricity system of small secondary distribution station, Sub-section post,industrial and mining enterprises,urban residential community,airport,railway,tunnel,high altitude building and so on and it is used as power received and distributed.
4. Performance features:
KYN28A-12/24 Indoor Metal Armored Movable Switchgear, the cabinet is made by high quality aluminized zinc plate and is shaped by CNC machine processing, fixed by rivets, stable and strong structure; Each functional isolated room is separated and sealed mutually. The protection level of isolated room is IP20 and protection level of shell can reach to IP40. Switchgear is divided into bus line chamber, cable chamber, handcart chamber and instrumentation control chamber; The main breaker is equipped with domestic and international high quality vacuum breaker of VS1, VD4 and other type. It has complete five protection inter-locking, safe and convenient operation and complete display of first and second. It is equipped with comprehensive or separate original parts protection according to design. It can be connected with cable in normal bottom incoming and outcoming at the same time or in top incoming and outcoming according to design. It can be combined multi-functions cabinet of incoming line, measured PT contact, outcoming line and turning. The switch handcart is interchangeable and is checked and maintained more conveniently.
5. Technology Prameters:
| Technology Prameters | |
| Item | Parameters |
| Rated Voltage | 6.3 12 24 kV |
| Rated Current | 630 1250 1600 2000 2500 3150 4000 A |
| Rated Frequency | 50 60 Hz |
| Switchgear Rated Current | 630 1250 1600 2000 2500 3150 4000 A |
| Breaking Rated Current | 630 1250 1600 2000 2500 3150 4000 A |
| Rated short time tolerant current | 16 20 25 31.5 40 KA/4S |
| Rated peak tolerant current | 40 50 63 80 100 kA |
| Rated short circuit breaking current | 16 20 25 31.5 40 KA |
| Rated short circuit closing current | 40 50 63 80 100 kA |
| Rated insulation level power frequency tolerant voltage | phase-phase phase-ground 42kV/1 min Breaking 48kV/1 min |
| Rated tolerant voltage by lightning impulse | phase-phase phase-ground 42kV/1 min Breaking 48kV/1 min |
| Breaker service life | 10000 times |
| Protection level | Out shell IP4X isolated room and breaking room door opened IP2X |
| Ambient temperature and humidity | -15ºC-40ºC less than 95% per day less than 90% per month |
| Altitude | not more than 1000 meters |
Rongdian provide perfect convoy for cities' construction. We are power integration service provider. Great Value, High Efficiency, Building Green Life.
Established in 1995, Shenzhen Rongdian Enterprise Co., Ltd is professional international electronic power equipments manufacturing entity, engaged in all production works inculding R&D and mainly focusing on engineering project contracting, integrated electricity equipments supply at abroad, in the field of power sector including electricity substation, high voltage switchgear, low voltage switchgear, cable tray products and so on. Our factory is located in Shenzhen, Guangdong, China.
Shenzhen Rongdian Enterprise Co., Ltd mainly produce low and high voltage full electric equipment sets. Rongdian have changed fundamentally through around twenty five years developing since the company was established in 1995. Rongdian have realized transformation of scientific service of high tech, high value-added, more kinds full electric equipment sets' design, manufacturing, debugging, installing from single switchgear cabinet production.
Presently, Rongdian is built with modern standard of factory room more 12, 000 square meters, advanced processing machine, elaborate testing device, excellent technical team, and skilled workers. Rongdian is a specialized research and development production and marketing company that establish enterprise management system gradually and improve management level continuously. In order to get perfect quality products, Rongdian carry out developing strategy of powerful combination, absorbing advanced management experience, applying international technology standard to produce our products. Also Rongdian get production certification of full switchgear sets from Guangdong Electronic Machinery Industry Hall and Guangdong Power Industry Bureau two departments.
Rongdian have passed ISO9001 Quality Management System Certification in 1999. Rongdian have become qualified company firstly by CCC certification of low voltage full equipment set in 2003. Rongdian have got the title of Excellent Products Of Chinese Industry many annual years and times.
Our company main products are GCK, CGS, MNS, BFC, GGD, PGL series low voltage full electronic equipment sets, KYN28A, XGN15-12, HXGN15-12, SRC-12 series medium high voltage full electronic equipment sets, YBM-12/0.4 model mobile box-type substation, electric generator compound cabinet, double-power automatic switching device, XL, JX(F), DCX(R), XM(R) series three box products and CMC-3A, CCX series busway products.
