1. Product Name:

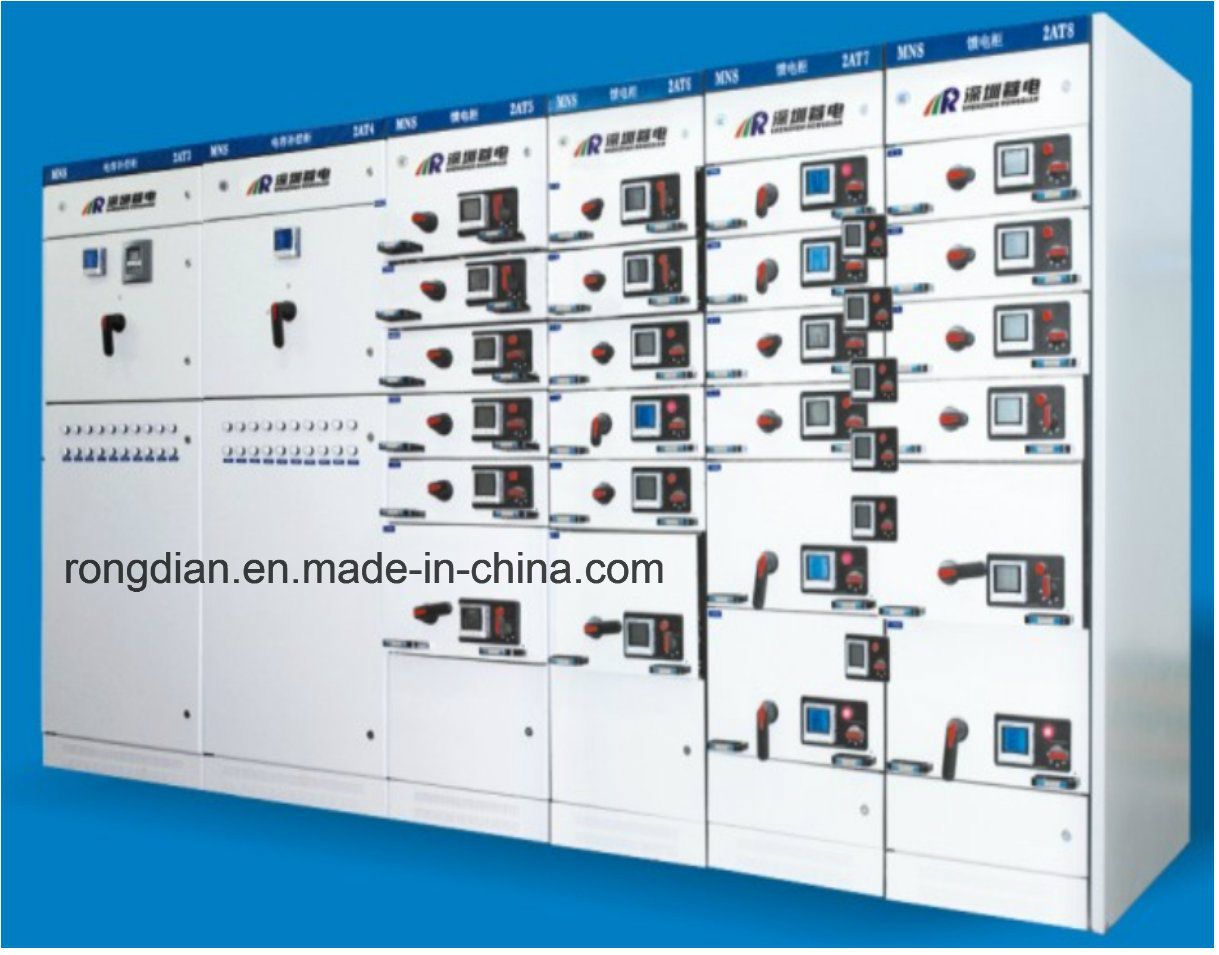

MNS Model Low Voltage Withdrawable Switchgear Cabinet
2. Product description:
MNS Model Alternative Current Low Voltage withdrawable Switchgear Cabinet is designed by standard modulization, compact structure and is composed and assembled by strengthened C type material. The cabinet frame and internal structures are processed by aluminized zinc plate and has strong corrosion resistance. Each functional unit can be interchangeable, which improve power supply reliability.
MNS Model Alternative Current Low Voltage Withdrawable Switchgear Cabinet is applied in power station, transformer substation, petrochemical, metallurgy steel rolling, light and textile industry and industrial and mining enterprises, residence community, high altitude building and other place and is used as power distribution equipment electricity convertible, distribution and control of alternative current frequency 50-60HZ and rated voltage 400V power electricity system.

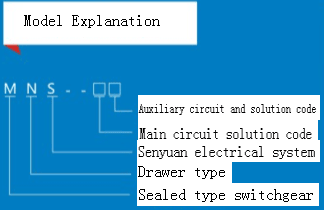

3. Model explanation:
4. Performance features:
(1)The main framwork adopt C type steel, standard modularization design. Modulus is 25mm and parts have strong popularity, flexible and convenient installation inside.
(2)Impact structure designed, it can contain more functional units in a smaller space;
(3)When the cabinet is designed, the thermal issue is taken into consideration fully. Up and down of cabinet body has designed different quantities scattered heat slot holes, which make the sealed cabinet to form a nature ventilation from bottom to top and it can achieve heat scattered purpose.
(4)Each functional chamber of device is isolated from each other and the interval room is divided into function unit chamber, bus line chamber and cable chamber, relative independent of each chamber effect.
(5)The head cover of cabinet can be uninstalled when required, which make the main bus line more convenient assembly and adjustment in scene. There are flying rings installed in the four corners of cabinet head cover, which is used for slinging and loading.
(6)It has locking function, self-throwing function and checking status function.
(7)It can support various operating patterns(selectable);
(8)Having communication function: the system can have SR485 or RS232 communicating interface, which can support MODBUS cpmmunication regulation(selectable);
(9)It has intelligentized monitoring function(selectable);
5. Technology Parameters:
| Technology Parameters | | |
| Item | Unit | Parameters |
| Rated Working Voltage | V | 400 |
| Rated Frequency | Hz | 50/60 |
| Rated Current | Horizontal bus line | A | 1000-6300 |
| Vertical bus line | A | 1000 |
| Rated short-time tolerant current(1s) | kA | 100 |
| Rated peak tolerant current | kA | 220 |
| Dielectric Strength | V/1min | 2500 |
| Rated Insulation Voltage | V | AC660 |
| Effective installed height | mm | 1800 |
| Drawer Specification | 400mm Height(16E) | mm | 250A≤In≤630A |
| 200mm Height(8E) | mm | 63A≤In≤250A |
| 200/2mm Height(8E/2) | mm | In≤63A |
| Control Motor Capacity | kW | 300 |
| Out shell protection level | | IP30/IP40 |
| Shape dimension(Width×Length×Thickness) | mm | (400-1000)×1000×2200 |
