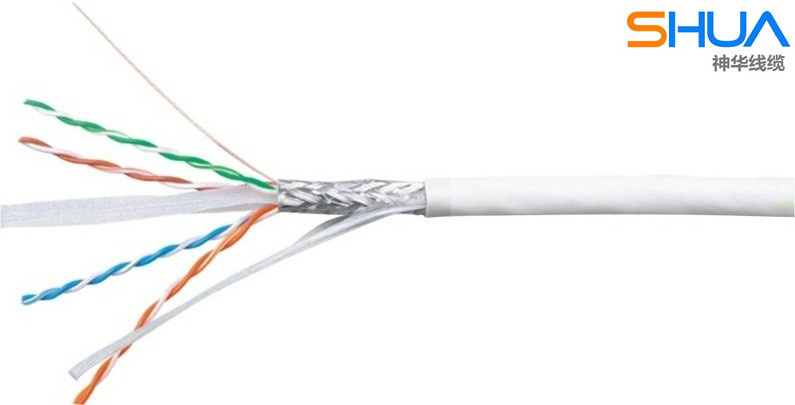

LAN Cable Network Cable Ethernet Cat5e Patch Cable

Name: LAN Cable Network Cable Ethernet Cat5e Patch Cable
Brand: all-electronics-online.com
SKU: 756562295
Availability: InStock
Rating: 5 (102 reviews)

Price:	US $ 0.1-20/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

LAN CABLE UTP CAT5e
1. UTP/FTP/STP/SFTP
2.24awg
3.100MHz bandwidth
4.305m/roll
5. Pass FLUKE TEST
Packing information:
1. Packing
TypeLengthCarton sizeQTYG. W.
Cat6A
100m 57x43x30cm 5 roll15kg
305m 75x38x48cm 4 roll35kg
500m 38.5x38.5x30cm1 roll17kg

Introduction
What is cat6A cable?
CAT6 is an Ethernet cable standard defined by the Electronic Industries Association and Telecommunications Industry Association (commonly known as EIA/TIA). CAT6A is the sixth generation of twisted pair Ethernet cabling.

Specification
Conductor: CU, CCA, CCS, CCAM
Insulation: HDPE(Polyethylene)
Outside Diameter: 6.22m+/-0.2mm
Construction:
Conductor
23AWG(0.50mm+/-0.02mm)BC/CCA/CCS/CCAM
Insulation
1.02mm+/-0.02mmPE/HDPE
Pairs
4 pairs
Ripcord
Yes
Sheath
6.26mm+/-0.2mmPVC/LSZH
Color
Gery, black, white, blue, red or as client's request
Application
1. Computer Network Cabling Project
2. Broadband Network Communication
3. Digital ISND Network and ATM 125Mbps Network
4. Ethernet Network
5. Audio and Data Transmission
6. Trunk Wiring
7. Noisy Enviroment

Electrical Specfications
Dielectric strength
2.5kv dc-2seconds
Conductor resistance
Max 9.38ohm/100mt at 20° C
Max ring resistance
16.8ohm/100mt at 20° C
Max mutual capacitance
560pf/100mt
Max capacity unbalance
330pf/100mt
Impedance
100+/-15% at 1~100MHz

Packaging & Shipping

Packing Details
1)Packing length: 305m/roll, 500m/roll or as client's request.
2)Inner packing: Easy pull box.
3)Outer packing: Carton box.
4)Other packing is available according client's request.
Delivery date
5-15days after confirmed.

SPECIFICATION	23AWG CAT6A UTP
transmission speed	10000Mbps
insulation	HDPE
sheath	PVC/LSZH
production capacity	600000 box per year
certification	UL,ETL,ROHS,CE
500MHz	500MHz
110N	110N

Prod Model:	SHUA0120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue
Type:	Cat 6
Certification:	CCC
Application:	Submarine Cable
Conductor Material:	Plastic
Cover Material:	PVC
Brand:	Shenhua

The company is set Branch, engineering, trade and an integrated enterprise, the main production: Wire and cable, instrument of the three categories of over 500 varieties of more than 2000 specifications. The company provides the following products for your selection and welcomed the use of its main products are: WR series thermocouple, WZ series of thermal resistance, bimetal thermometers, gauges, intelligent digital regulator controllers, temperature converters, display and power cable special cables, control cables, electrical wire and cable equipment communication cables, thermocouple wire compensation, compensation cable and high-temperature fluorine plastic compensation wire, cable, silicone rubber control cables, overhead cables, ACSR and aluminum cables, etc...

The company attaches great importance to science and technology development and technological progress, in December 2000 introduction of a special cable production line, self-regulating heating cable series is currently the most favored by the majority of users of high-tech products. The Company and the National Institute of more than 10 projects to establish a cooperative relationship, sales network throughout the country.

We will adhere to the "technology works, good faith, " the purpose and dedication to providing quality products and excellent service. Welcome patrons, the inquiry.
