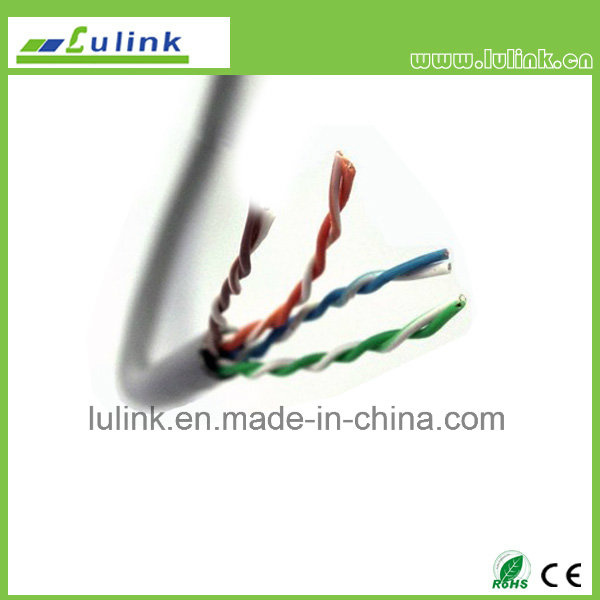

Lulink 2017 Hot Sale Cat5e LAN Cable
Product Description
1. This kind of cable use bare copper to be the center conduction with the specification is 24AWG and PE to be the dielectric. The jacket is made of fireproof material, which is so meaningful to the Cat.5e communication.
2. This Cat.5e UTP cable is conform to the SIO/IEC, TIA/EIA and EN standards and the electrical characteristics are exceed the lastest Cat.5e standards.
3. LSZH: means "Low smoke zero halogen", which is the symbol of environmental protection.
Specifications
UTP Cat5e network cable.
Specification can be made to customers' satisfaction.
1.Fast delivery 2.CE&FLUKE&UL&ISO&ROHS verified
3.Working 10-15 yrs, Connect distance,100-180m working
4.Color according to your requirements.
Both OEM and ODM are available.| Shape | Conductor | Insulation | Core Number | Jacket |
| AWG | Specification
(mm) | Material | Thickness
(NOM.mm) | Material | Thickness
(NOM.mm) | OD (NOM.mm) |
| Circular Cable | 26 | 1/0.404 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 4.8 |
| 7/0.16 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.0 |
| 24 | 1/0.511 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.4 |
| 7/0.203 | HD-PE | 0.18 | 4P | PVC or LSNH | 0.55 | 5.5 |
Flat Cable
(Non-sign) | 30 | 7/0.10 | HD-PE | 0.13 | 4P | PVC | 0.30 | 1.75*6.2 |
| 28 | 7/0.127 | HD-PE | 0.13 | 4P | PVC | 0.30 | 1.90*7.0 |
| 24 | 7/0.203 | HD-PE | 0.18 | 4P | PVC | 0.50 | 3.0*9.0 |
• Conductor: bare copper wire O0.51 ± 0.01 mm, 24 AWG • Insulation: High density polyethylene, minimum thickness of 0.18 mm • Conductor diameter 0.9 ± 0.02 mm • 4 twisted pairs are covered with PVC jacket (minimum thickness of the shell 0.4 mm) • The external cable diameter of 5.1 ± 0.2 mm • bending radius: 8xO during installation, 6xO with vertical Cabling, 4xO the horizontal cabling • Standard packing: 18.5 x 37.5 x 36.5 cm (W x H x D) - 305 m • Weight without cable, weight: 9.7 kg • Cable Weight with packaging: 10.5 kg • Weight 1 km of cable: 31.8 kg • Operating temperature: -20 ° C - +75 ° C • Fire: CM • Standards: UL444/UL1581, TIA / EIA 568B.2 Conductor resistance at 20 ° C 9.38 Om/100 m DC Resistance Unbalance 5% Capacitive unbalance pair to ground 330 pF/100m Impedance 0.772-100 MHz 85-115 Ohm Maximum working capacity of 5.6 nF / m
ELECTRICAL CHARACTERISTICS1. Impedance: 100±15
2. Static electric capacity: max:17.1nf/kf
3. Resisitance: max:28.6/kf
4. Unbalance resisitance: max 5%
5. Unbalance capacity: max 330pF/100m
6. Roted communicate rate: 65%PHYSICAL CHARACTERISTICS1. Copper diameter: 24AWG
2. Outer diameter: 5.0mm
3. Minimum bend radius: O.D.*4-6
4. Maximum pulling tension: 10.0
5. Jacket material: PVC/LSZH
6. Roted temperature: -20~60ºCAPPLICATION1. 10/100/1000Mbps Ethernet
2. 100VG-AnyLAN
3. Token ring
4. ATM155/ATM622 etcSTANDARD1. ISO/IEC-11801
2. EN-50173
3. TIA/EIA-568BFeatures1.Al-Foil Shield Reduces the Interference and Data Loss
2.Fast and Reliable Connection
3.Twisted Pairs with Bright Color for Easy Recognition
4.Ripcord and Footmark for Convenient Use
5.Smooth Jacket for Easy Pulling in Tight Space
6.Color in Light Grey, Dark Grey, Blue, White or as per Your RequirementApplications1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission

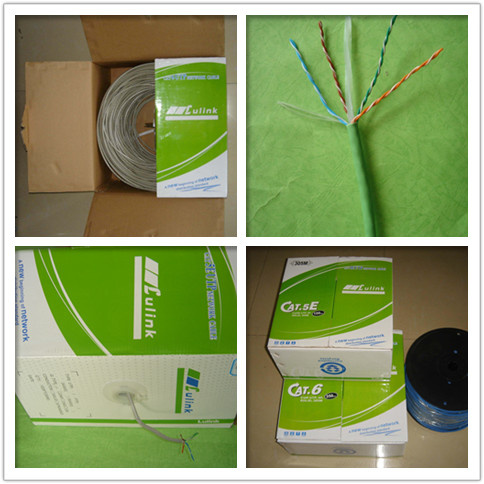

packing

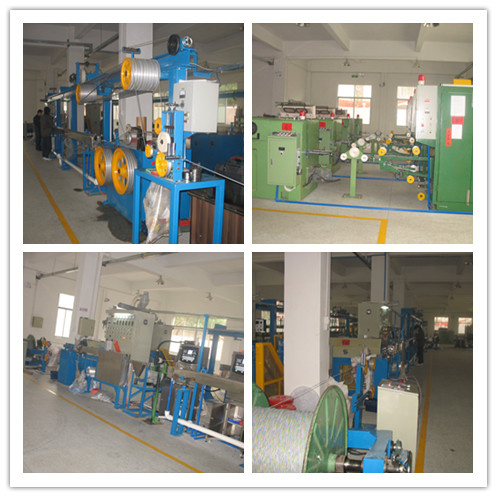

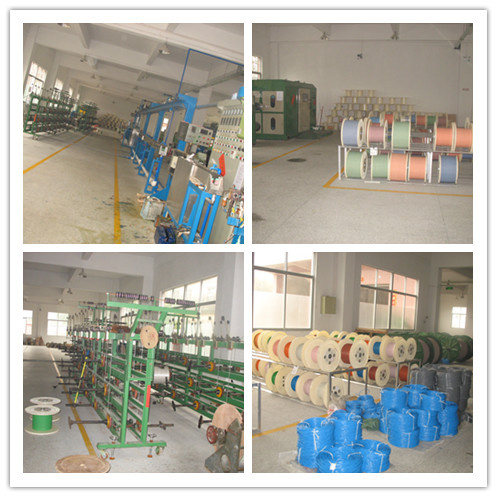

Lulink Factory
About Lulink companyWe are an export organization specialized in developing, designing, producing network intelligent wire and telecommunication equipments, the products range consists of main categories and metal sheeting. Offered products meet with international standards, for this major company has great strength ability in this field specially for E-Commerce.As we are a professional manufacturer of copper system, fiber optic system, cable assembly system, smart home system, etc.Our main items include as below:
--Copper System: lan cable, patch cord, faceplate, keystone jack, patch panel, plug, network cabinet, coaxial cable, etc.
--Fiber Optic System: fiber optic cable, fiber optic patch cord, PLC splitter, pigtail, optical cross distribution cabinet, ODF, splice closure, optical tool kit, optical adapter panel, etc.
--Cable Assembly System: USB cable, HDMI cable, VGA cable, AV cable, sata cable, etc.
--Smart Home System: usb module, hdmi module, vga module, av module, wall socket, etc.
Our Services
1. Free samples
2. OEM & ODM are both available
3. Customer's design & logo are avaliable
4. Professional service and prompt reply/action within 24 hours
5. Excellent after-sale service
If you have any purchasing plan or any inquiry , don't hesitate to contact me, tks!
