| Prod Model: |
TST80-EP |
| Working Voltage: |
220V |
| Current Loading: |
16A |
| Sensors: |
Two Sensors |
| External Sensor: |
Immersibale Sensor |
| Backlight: |
White Backlight |
| Installation Box: |
European Standard Box |
| Usage: |
Room Heating |
| Material: |
PC Engineer Plastic |
| Control Method: |
Electronic Type |
Product Description

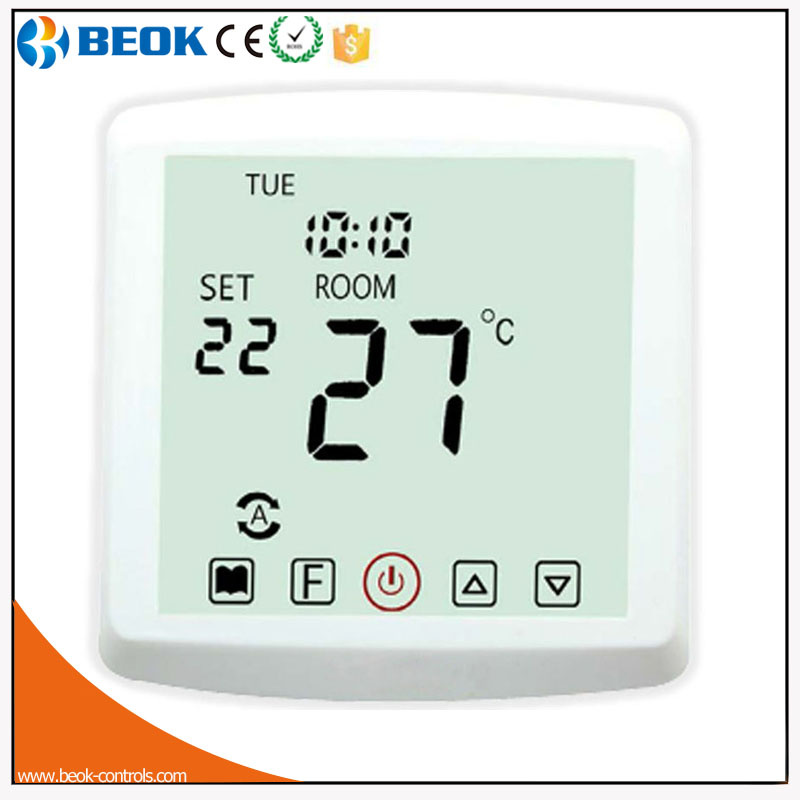

Large Screen Digital Floor Heating Thermostat With 3m Sensor(TST80-EP)
~~~~~~~~~~~~~~~~Product Summary~~~~~~~~~~~ TST80-EP Large screen digital floor heating thermostat is used to control the temperature of heating elements in industrial, commercial and domestic room floor heating system, expecially in electrical heating systems.
It is generally used to control heating applications, such as heating films, heating cables and heating mats. |
~~~~~~~~~~~~~Product Technical Parameter~~~~~~ | Working Voltage | AC 85~265V, 50-60Hz |
| Currant Load | 16A |
| Temp Control Accuracy | -2/0 Celsius |
| Consumption | 1W |
| Setting Temp | 5-75 Celsius |
| Terminal | Connect 1x4mm 2 Wire |
| Installation | Wall Inserted Installation |
| Installation Box Dimension | 80mmx80mm European Standard Box |

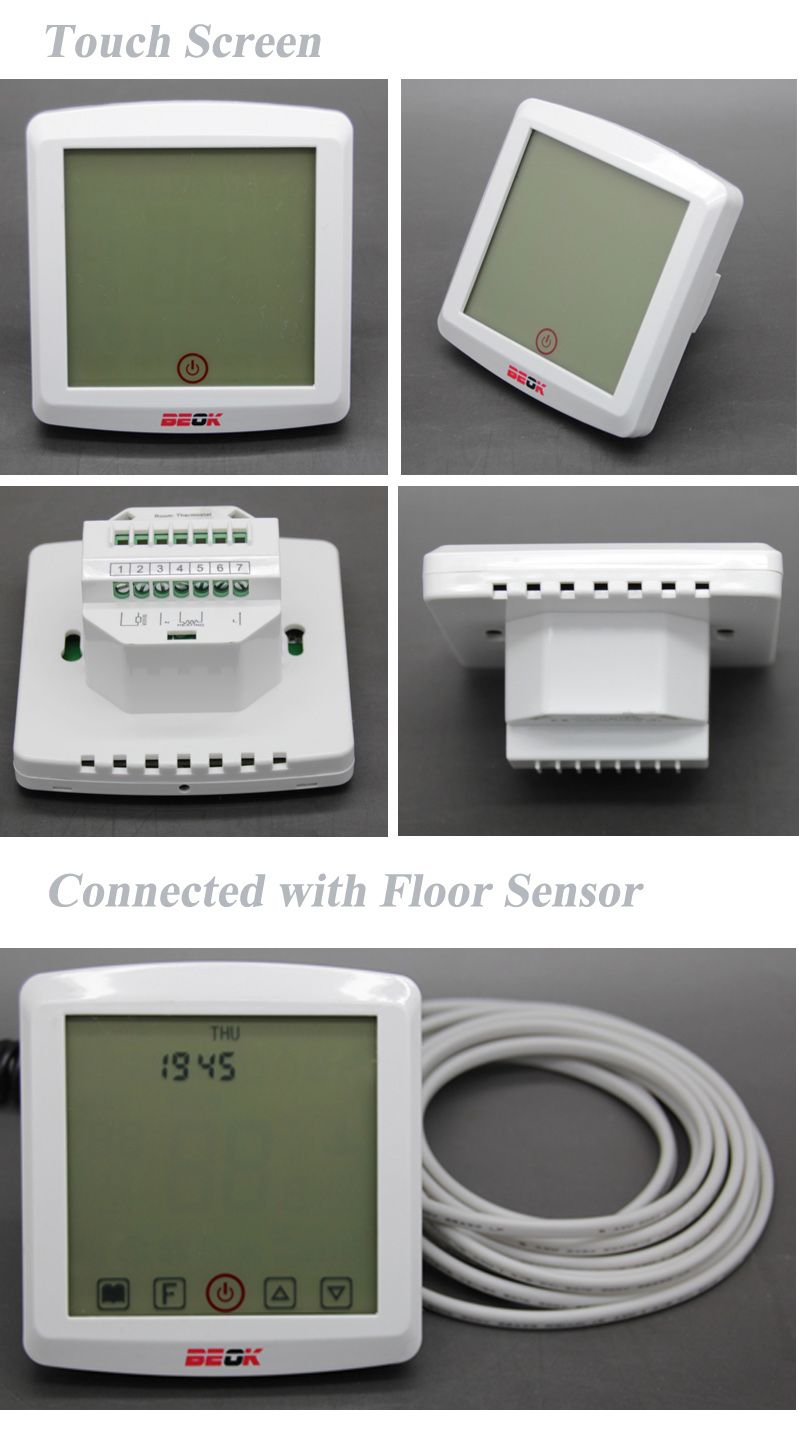

~~~~~~~~~~~~~100% Real Product Photos~~~~~~~~~~
~~~~~~~~~~~~~~Product Features~~~~~~~~~~~~~~~ 1. TST80-EP Thermostat Main Features & Functions--- | 1. | With foreign wide voltage technology, make power more stable |
| 2. | With 5+2 Weekly Programmable function, customer can set 4 periods time per day; |
3.
| With Three Sensor Modes:
S1- Internal sensor detects temperature; |
| S2- External sensor detects temperature; |
| S3- Internal sensor detects temperature. external sensor limits temperature; |
| 4. | With Thermostat State Memory Optional function; |
| 5. | With Child Lock function, to prevent wrong operation; |
| 6. | With Anti-freeze function; |
2. About TST80-EP Thermostat State Memory Optional Function--In thermostat Advanced Parameter Setting, you can choose "06 0" or "06 1".
0 stands for not to memorize thermostat power state. In this mode, no matter thermostat is in working state or standby state, when the power failure, and power on again, it will get into the standby state by default. Thermostat factory set is 0;
|
1 stands for to memorize thermostat power state. In this mode, before power is failure, if thermostat is on the working state, after power is on, thermostat will automatically get into working state too; if thermostat is in standby state, after power is on, thermostat will get into standby state too.
|
3. About Thermostat Programmable Function--- | Periods | Working Days | Weekends(Saturday+Sunday) |
| First Period | Heating
06:00 22 Celsius | Heating
07:00 22 Celsius |
| Second Period | Heating
08:00 18 Celsius | Heating
10:00 22 Celsius |
| Third Period | Heating
16:00 22 Celsius | Heating
14:00 22 Celsius |
| Forth Period | Heating
22:00 18 Celsius | Heating
22:00 18 Celsius |
~~~~~~~~~~~~~~Product Model Spec~~~~~~~~~~~~~ Att: We also have TST80-WP thermostat to control valves, thermal actuators in water heating system. | Model | Current Loading | Sensors |
| TST80-EP | 16A | With Two Sensors |
| TST80-WP | 3A | With only Internal sensor |
~~~~~~~~~~~~~~~~~Product Package~~~~~~~~~~ In the Inner packing box, you will find:| Thermostat | 1pc |
| External Sensor(Floor Sensor) | 1pc |
| User Manual | 1pc |
| Screws | 2pcs |
| Drayer | 1pc |
Shanghai Beok Controls Co., Ltd is one of the biggest HVAC designer and manufacturer in China, the factory is located in Hubei and Jiangsu Province, and Head office is in Shanghai, over 345 employees, 7-10 engineers and 15 persons for test team, 3 production line;
The products including Room Thermostat, Motorized Valves, Water Valves, Manifolds and Thermal Actuators ects. Recent years, our products be exported more and more volume to Europe, Africa, Asia, Austria Countries, our business not only go with B2B and also B2C is our mainly market, owing to our more better quality and services, we get the high reputation from the customers.
The company culture is based on the human and products quality, providing the best products with the reasonable prices, to be the most credible supplier of customers, we will come out at least 3-5 new models for every years, and keep the failure rate far below 0.3%, , we provide OEM and ODM for customer need. If you have any problems or inquiries, please do not hesitate to contact with us.
Expect to cooperate with you and welcome you to visit us any time.
