| Prod Model: |
GS-DC030 |
| Power Source: |
Fiber Laser |
| Model: |
GS-Bdhj2000 |
| Structure: |
T Type |
| Board Width: |
1500 mm |
| Host Travel: |
3500 mm |
| Maximum Moving Speed: |
10 M/Min |
| Speed Of The Machine Tool: |
0.5-12 M/Min |
Product Description
laser welding machine for stainless steel ,Angle joint, lap and shaft parts
Description:
HANSGS-DC030 laser welding & cutting equipment is a large integrated equipment with light, machine, electricity, control technology, refrigeration and material processing technology, mainly consists of laser source, light system, light path switching system, cooling system, machine bed, gas supply system, bed control system, etc. The device can be used for welding and cutting stainless steel, titanium, zirconium alloys, nickel base alloy, aluminum alloy materials, which can realize the tablet docking, Angle joint, lap and shaft parts, tubular parts of annular welding, etc.
Porducts:
Laser source

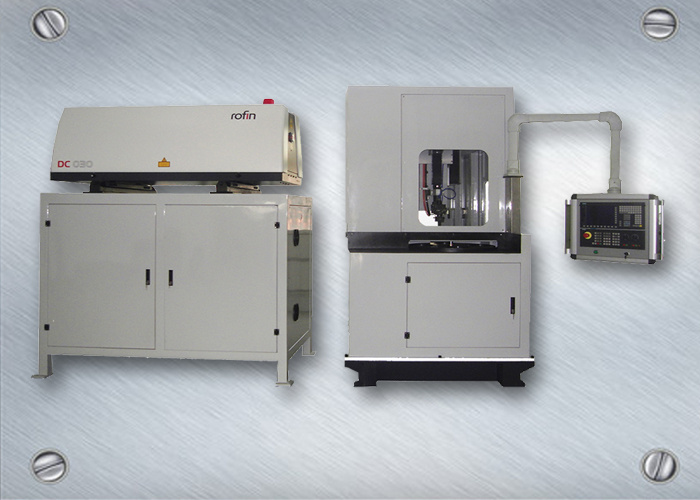

HANSGS-DC030 laser welding & cutting equipment adopt Germany ROFIN DC030 laser, it is diffusion cooling slat type CO2 laser source and leading technology has reached the international most advanced level.
DC030 laser parameters :
| Power | Power rating | 3000W |
| Power dynamic range | 300-3000W(Adjustable) |
| Power stabilit | <±2% |
| Light beam | Beam mode | Fundamental mode (00 mode) |
| Divergence angle | <0.15 mrad (Full-shaped) |
| Beam diameter | 20mm-25mm( <10m) |
| Directivity stability <0.2 mrad |
| Polarized light | 45º or vertical polarization |
| Pulse | Super intensity pulse | 8-5000Hz |
| Pulse width | 26μs-Continuous Wave |
| oblique wave generator | 8-5000Hz |
| Gas | Laser gas | He,N2,CO2 |
| Laser gas consumption | Total≤0.2L/per hour |
| Electric quantity | Max Power consumption | 45KVA(380V,50Hz) |
| Cooling liquid | Heat load | 39KW(environmental temp 40ºC) |
| Coolant temperature | 20ºC |
| Coolant temperature stability | Max±1ºC |
| Coolant flow | Min 42L/per minute |
| Inlet pressure | Min 5.7bar, Max 10bar |
| In and out water pressure | 5bar(When the Min flow) |
| Environment | Temp | Environmental temp 0-40ºC |
| Relative humidity | <85% |
Light path switching systemThis machine has 2 in 1 functions with two head of laser cutting and laser welding. For the convenience of users, we install two heads on the Z axis at the same time, using the cylinder driving conversion lens transmit the laser beam to welding head or cutting head. When conversion lens are opened, the machine can realize laser cutting processing, and complete laser welding processing when conversion lens closed.The welding head parameter configuration:
1.Focus lens focal length: 200 mm and 250 mm;
2.Clear aperture: 49.5 mm;
3.Cooling type: water cooling;
4.Band coaxial CCD monitoring, 14 "LCD monitors.
Cutting Sample
Our Company
Our service:
Technical Train Content:
1. Safety Train;
2. Basic Knowledge Train;
3. Structure of laser route, test, safety regulation and maintenance;
4. CNC system principle, operation, programming, failure diagnose and notice;
5. Machine tool operation, daily maintenance, electric control and maintenance;
6. Basic knowledge of metal heat treatment and laser heat treatment technique;
Trainee qualification:
1. More than three years factory working experience
2. Trainee is not allowed for our machine operation until the approval of written test and live operation.
Trainee qty:
One people regarding each of following field including Machinery, CNC/electric automatic, optics and material heat treatment technique.

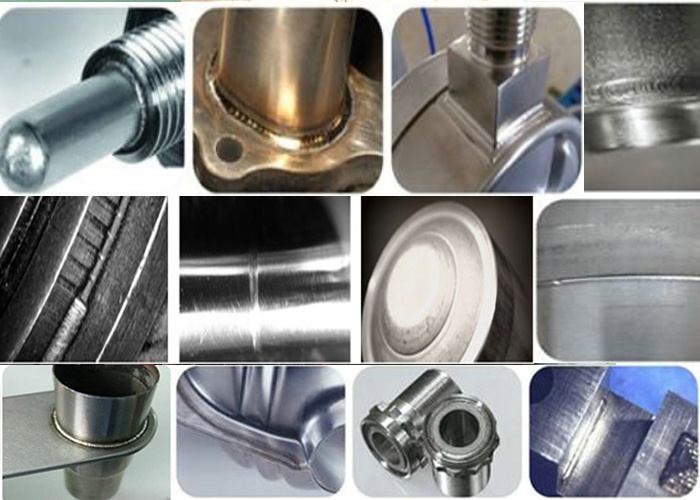

Laser welding application
Laser welding is mainly used in automobile, tools, home appliance, steel industry and others, for example nest gear of transmission,flying wheel,airbag,rock arm,muffler, silicon oil shock absorber, hydraulic torque converter, wood saw blade, diamond saw blade, radiator of water.
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
