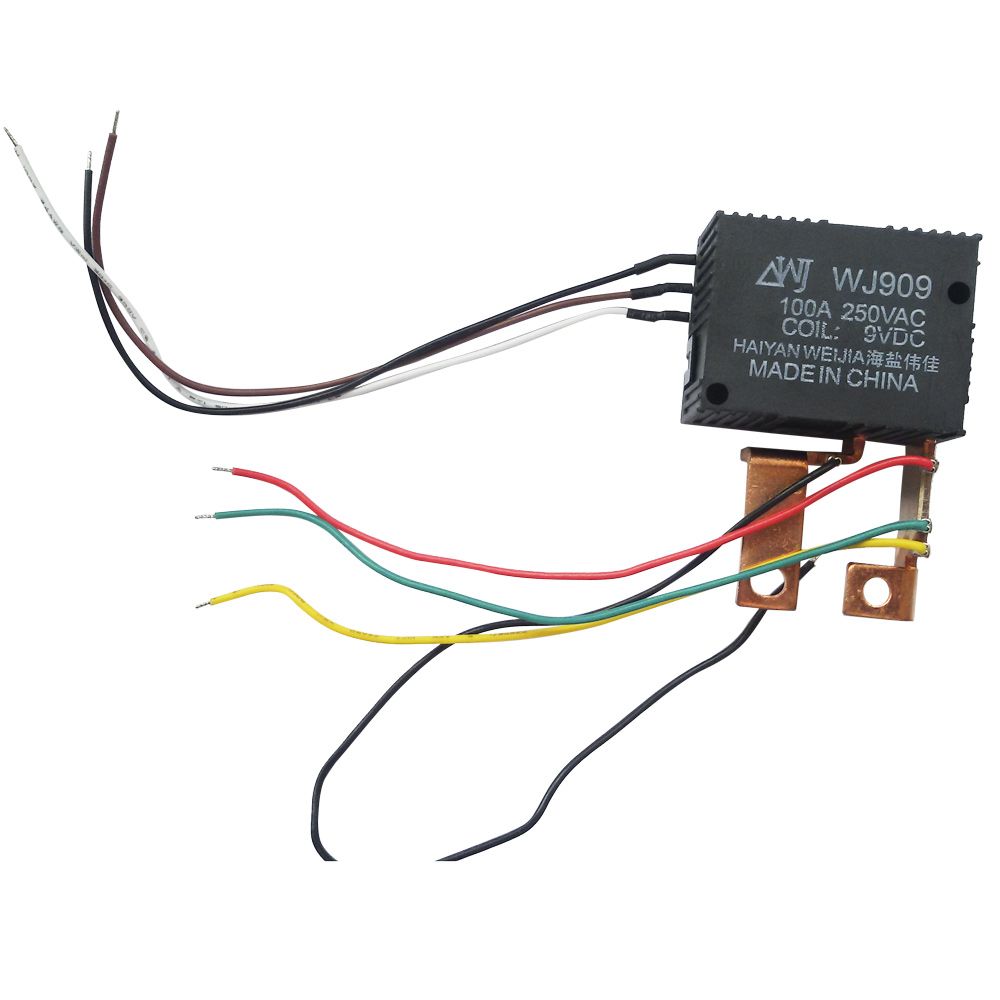

Latching Relay for Electric Meter Wj909 100A

Name: Latching Relay for Electric Meter Wj909 100A
Brand: all-electronics-online.com
SKU: 825185295
Availability: InStock
Rating: 4.3 (70 reviews)

Price:	US $ 2.5-3/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Appliance:
1. Electrical meter.
2. Automatic meter reading(AMR).
3. Automatic control devices.
Sasic Data:
Contact Arrangement: 1A. 1B
Contact Material: Silver Alloy
Max Switching Current: 60A. 80A
Max Switching Voltage: 250VAC
Max Switching Power: 15KVA
Production Features
1. Classifid as 60A and 80A.
2. Various installation holes for customer's choice.
3. Law temperature rise. Low coil power.
4. Long electrial and mechanical life.
5. Well quality with low price.
Specifications Dation:
Coil Rated Voltage: 9~48VDC
Coil Power: Single: 1.5W double: 3W/2W
Set Voltage: ≤ 80%
Reset Voltage: ≤ 80%
Voltage Pulse Width: ≥ 50ms
Set/Reset Time: ≤ 30/30ms
Contact Bounce Time: ≤ 5ms
Contact Resistance: ≤ 2mΩ
Insulation Resistance: ≥ 1000mΩ
Dielectric Strength Between Open Contacts: ≥ 1500VAC
Dielectric Strength Between Open Contacts: ≥ 4000VAC
Ambient Temp: -40~+70° C
Life Electricel(Operation): Normally 1*104 Particularly 3*104
Mechanical(Operation): 1*105

Prod Model:	WJ909-100A

Haiyan Weijia Electric Technology Co., Ltd. is a professional large-scale manufacture of all types of electric shunt, integrating development and production together. Our main products include shunt, current shunt, brass shunt, relay, magnetic latching relays, current transformer, testing equipment, transformer cable, electro-optical samplers and related products. Our company was established in 2008, and we have many years of history in the shunt industry. Located near Ningbo, Shanghai, we enjoy convenient water, land and air transportation.

Currently, our product already exported to Russia, India European and other Western countries and regions. Our company has always focused on research, development and innovation, and has obtain some patent in the shunt field. In 2009, we attained ISO9001: 2008 Quality Management System Certification Certificate.

Our company continues to introduce new products to meet different needs, with high-quality products, reasonable prices, and good after service, we hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
