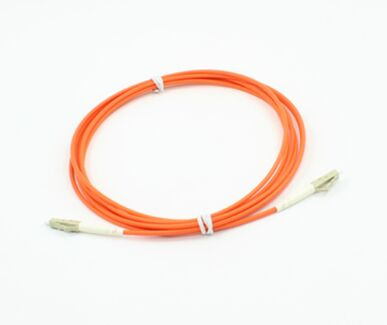

LC-LC Sm Simplex Fiber Optic Patchcord
Price: |
US $ 0.65-0.8/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prod Model: |
LC-LC |
Cable Diameter Szie: |
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
Boot Color: |
Blue, Green, Beige,Aqua, Black, White, Red |
Housing Material: |
Metal or Plastic |
Length: |
1m or Customized |
Housing Color: |
Blue, Green, Beige, Aqua,Black |
Application: |
Communication |
Type: |
Multi-mode Fiber |
Connection Structure: |
LC |
Certification: |
RoHS |
Brand: |
Koc |
Sheath Material: |
PVC LSZH |
Product Description
APPLICATIONS:CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)AVAILABILITY:Simplex/Duplex patch-cord available
Fan-out available
Pigtail available
Various boot (cable) sizes availableFEATURES:Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORESPECIFICATIONS: | Single mode | Multimode |
Insertion Loss | Typical <=0.2dB, Maximum<=0.3dB | ≤0.25dB |
Return Loss | ≥50 dB (PC) ≥60 dB (APC) | |
Repeatability | ≤0.1 | |
Durability | ≤0.2 dB typical change, 1000 matings | |
Interchangeability | ≤0.2dB | |
Tensile strength | >70N | |
Operating Temperature | -20 to + 70°C | -20 to + 70°C |
ORDERING OPTIONS: Connector Color | Boot (cable) Size | Boot Color | Fiber Type | Cable number | Application | Length |
Beige | 0.9mm | Beige | 9/125μm (SM) | Simplex | PC | Customized |
Blue | 2.0mm | Black | 50/125μm(MM) | Duplex | APC | |
Green | 3.0mm | Blue | 62.5/125μm(MM) | Fan-out (4f) | | |
| | Green | | Fan-out (6f) | | |
| | Gray | | Fan-out (8f) | | |
| | Red | | Fan-out (12f) | | |
| | White | | | | |
PICTURES:Thank you for viewing!
Please ask if you have any questions!
Welcome to visit our website:www.koc.com.cn
