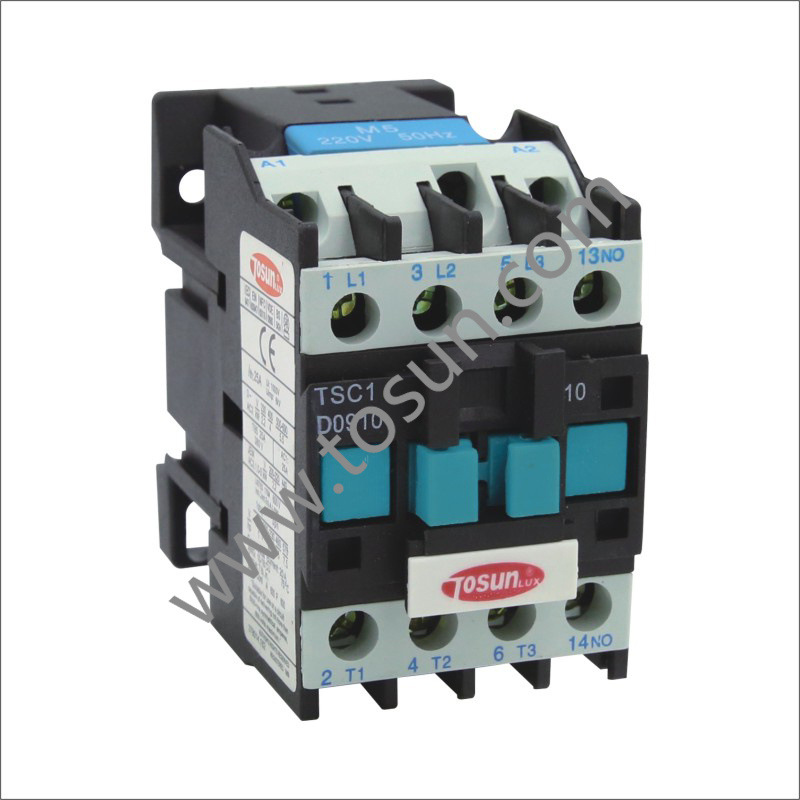

LC1-D Cjx2 3p AC Contactor
| Price: |
US $ 2-3/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
ApplicationTSC-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auciliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.Specification
| Model | D09 | D12 | D18 | D25 | D32 | D40 | D50 | D65 | D80 | D95 |
Rated working current (A)

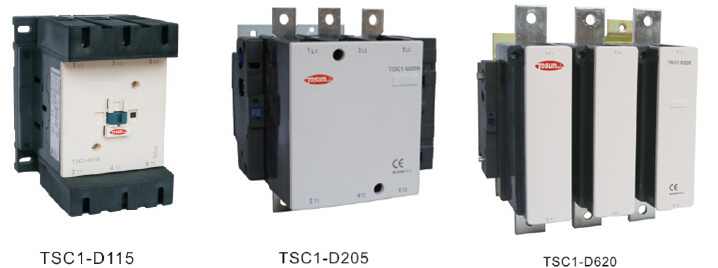

| AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 |
AC3 capacity of phase 3 quirrel-cage motor AC3(KW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 |
| Rated heat current(A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 |
| Electrical life | AC3x10^4 | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
| AC4x10^4 | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 |
| Mechanical life x 104 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 |
| Number of the contacts | 3P+NO | 3P+NC+NO |
| 3P+NC |
| Model | D115 | D150 | D170 | 205 | D245 | D300 | D410 | D475 | D620 |
Rated working current (A) | AC3 | 115 | 150 | 170 | 205 | 245 | 300 | 410 | 475 | 620 |
| AC4 | 52 | 60 | 75 | 85 | 105 | 117 | 138 | 147 | 180 |
AC3 capacity of
phase 3
quirrel-cage
motor AC3(KW) | 220/230V | 30 | 40 | 55 | 63 | 75 | 100 | 110 | 147 | 200 |
| 380*400V | 55 | 75 | 90 | 110 | 132 | 160 | 220 | 265 | 335 |
| 415V | 59 | 80 | 100 | 110 | 132 | 180 | 220 | 265 | 335 |
| 500V | 75 | 90 | 110 | 129 | 160 | 200 | 250 | 355 | 400 |
| 660/690V | 80 | 100 | 110 | 129 | 160 | 220 | 280 | 355 | 450 |
| Rated heat current(A) | 200 | 250 | 250 | 275 | 315 | 400 | 500 | 700 | 1000 |
| Electrical life | AC3x10^4 | 200 | 60 | 60 | 50 | 50 | 50 | 30 | 30 | 20 |
| AC4x10^4 | 15 | 15 | 15 | 15 | 15 | 15 | 8 | 8 | 5 |
| Mechanical life x 104 | 300 | 300 | 300 | 300 | 300 | 300 | 100100 | 100 | 100 |
| Number of the contacts | - |

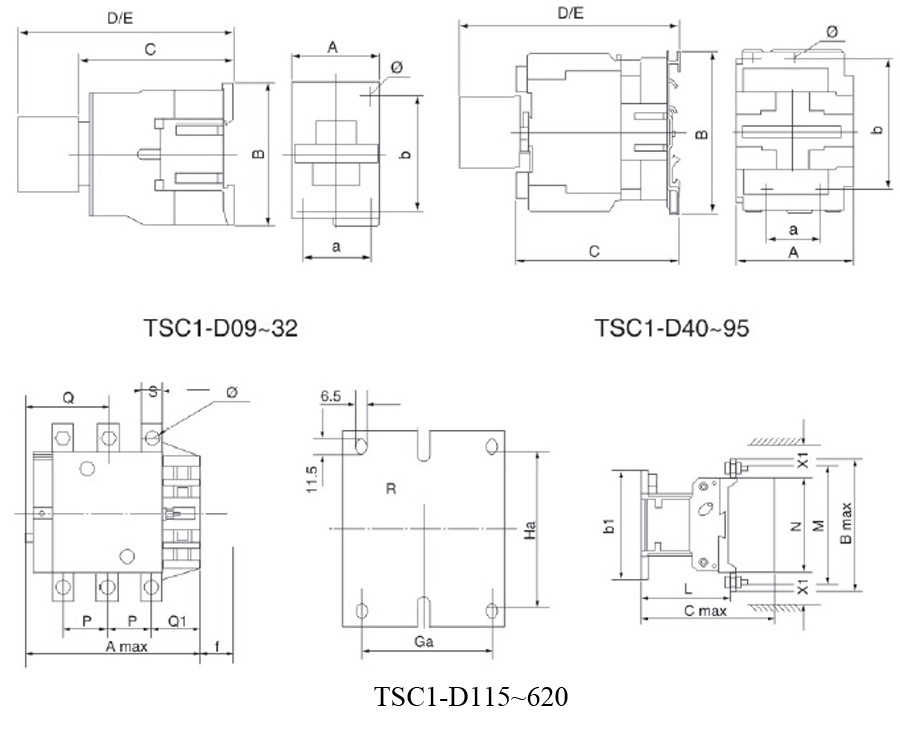

Dimension & Mounting Size
| Model | A | B | C | D | E | a | b | |
| TSC1-D09-12 | 47 | 76 | 82 | 113 | 133 | 34/35 | 50/60 | 4.5 |
| TSC1-D18 | 47 | 76 | 87 | 118 | 138 | 34/35 | 50/60 | 4.5 |
| TSC1-D25 | 57 | 86 | 95 | 126 | 146 | 40 | 48 | 4.5 |
| TSC1-D32 | 57 | 86 | 100 | 131 | 151 | 40 | 48 | 4.5 |
| TSC1-D40-65 | 77 | 129 | 116 | 145 | 165 | 40 | 100/110 | 6.5 |
| TSC1-D80-95 | 87 | 129 | 127 | 175 | 195 | 40 | 100/110 | 6.5 |
| Model | A | B | C | b1 | P | Q | S | Q1 | M | N | L | | Ga | Ha |
| TSC1-D115 | 158 | 120 | 132 | 158 | 35 | 60 | 17 | 25 | 134 | 96.2 | 75 | M6 | - | - |
| TSC1-D150 | 158 | 120 | 132 | 158 | 35 | 60 | 17 | 25 | 134 | 96.2 | 75 | M6 | - | - |
| TSC1-D170 | 158 | 120 | 132 | 158 | 35 | 60 | 17 | 25 | 134 | 96.2 | 75 | M6 | - | - |
| TSC1-D205 | 168.5 | 174 | 181 | 137 | 40 | 69 | 20 | 59.4 | 154
| 127 | 113.5 | M8 | 80 | 120-106 |
| TSC1-D245 | 168.5 | 197 | 181 | 137 | 48 | 69 | 25 | 51.5 | 172 | 127 | 113.5 | M10 | 80 | 120-106 |
| TSC1-D300 | 213 | 206 | 219 | 145 | 48 | 91 | 25 | 74 | 181 | 158 | 145 | M10 | 80 | 120-106 |
| TSC1-D410 | 213 | 206 | 219 | 209 | 48 | 91 | 25 | 74 | 181 | 158 | 145 | M10 | 80 | 120-106 |
| TSC1-D475 | 233 | 238 | 232 | 209 | 55 | 108 | 30 | 77 | 208 | 172 | 146 | M10 | 80 | 180 |
| TSC1-D620 | 309 | 304 | 255 | 280 | 80 | 140 | 40 | 89 | 265 | 202 | 155 | M12 | 80 | 180 |
| Prod Model: |
TSC1-D09 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conform To: |
IEC60947-4 |
| Rated Heat Current: |
2A |
| Number Of Contacts: |
3p+No, 3p+Nc |
| Packing: |
1 PC Per Box |
