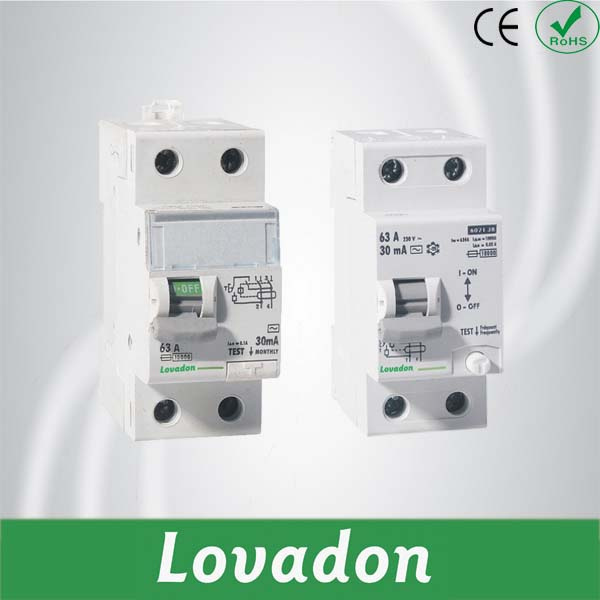

Lcb3l-63 Residual Current Circuit Breaker RCCB

Name: Lcb3l-63 Residual Current Circuit Breaker RCCB
Brand: all-electronics-online.com
SKU: 684077802
Availability: InStock
Rating: 4.3 (32 reviews)

Price:	US $ 6-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

  1.Specifications

Electrical
FeatureStandard
IEC61008-1
Type(wave form of the earth leakage sensed)
AC,A
Rated current InA10,16,25,40,63
PolesP2,4
Rated voltage UeV230/400
Rated sensitivity I nA0.03,0.1,0.3  0.5
Insulation voltage UiV500
Rated residual making andA500(In=25A/40A)
breaking capacity I m
630(In=63A)
Short-circuit current I cA6000/10000
SCPD fuseA10000
Break time under I ns<0.1
Rated frequencyHz50/60
Rated impulse withstand voltage(1.2/50)UimpV6000
Dielectric test voltage at ind Freq for 1 minkV2.5
Pollution degree
2
Mechanical
featuresElectrical lifet6000
MechanicaI Iifet20000
Fault current indicator
Yes
Protection degree
IP20
Ambient temperatureC-5~+40
(with daily average 35 )

Storage temperature
From -15 C to 70 C
InstallationTerminal connection type
Cable/U-type busbar/Pin-type busbar
Terminal size top/bottom for cablemm225

AWG18---3
Terminal size top/bottom for busbarmm225

AWG18---3
Tightening torque N*m2.5

In-lbs.22
Mounting
On DIN rail EN 60715(35mm)by means of fast clip device
Connection
From top and bottom

1.Specifications
Electrical Feature	Standard		IEC61008-1
	Type(wave form of the earth leakage sensed)		AC,A
	Rated current In	A	10,16,25,40,63
	Poles	P	2,4
	Rated voltage Ue	V	230/400
	Rated sensitivity I n	A	0.03,0.1,0.3 0.5
	Insulation voltage Ui	V	500
	Rated residual making and	A	500(In=25A/40A)
	breaking capacity I m		630(In=63A)
	Short-circuit current I c	A	6000/10000
	SCPD fuse	A	10000
	Break time under I n	s	<0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage(1.2/50)Uimp	V	6000
	Dielectric test voltage at ind Freq for 1 min	kV	2.5
	Pollution degree		2
Mechanical features	Electrical life	t	6000
	MechanicaI Iife	t	20000
	Fault current indicator		Yes
	Protection degree		IP20
	Ambient temperature	C	-5~+40
	(with daily average 35 )
	Storage temperature		From -15 C to 70 C
Installation	Terminal connection type		Cable/U-type busbar/Pin-type busbar
	Terminal size top/bottom for cable	mm2	25
		AWG	18---3
	Terminal size top/bottom for busbar	mm2	25
		AWG	18---3
	Tightening torque	N*m	2.5
		In-lbs.	22
	Mounting		On DIN rail EN 60715(35mm)by means of fast clip device
	Connection		From top and bottom

Prod Model:	LCB3L-63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Certification:	CB
Breaking Capacity:	4.5 Ka 6ka 10ka
Operation:	Electric Type ,Magnetic Type
Installation:	DIN Type
Structure:	RCCB
Poles Number:	2p,4p

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

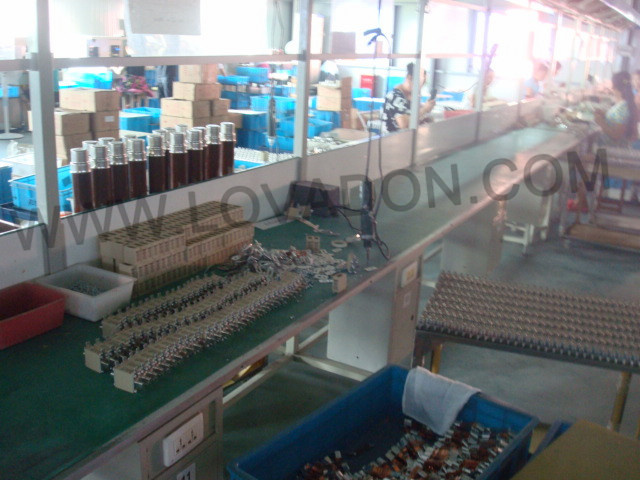

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
