LED Head Metal Push Button Switch Stainless Steel Switch

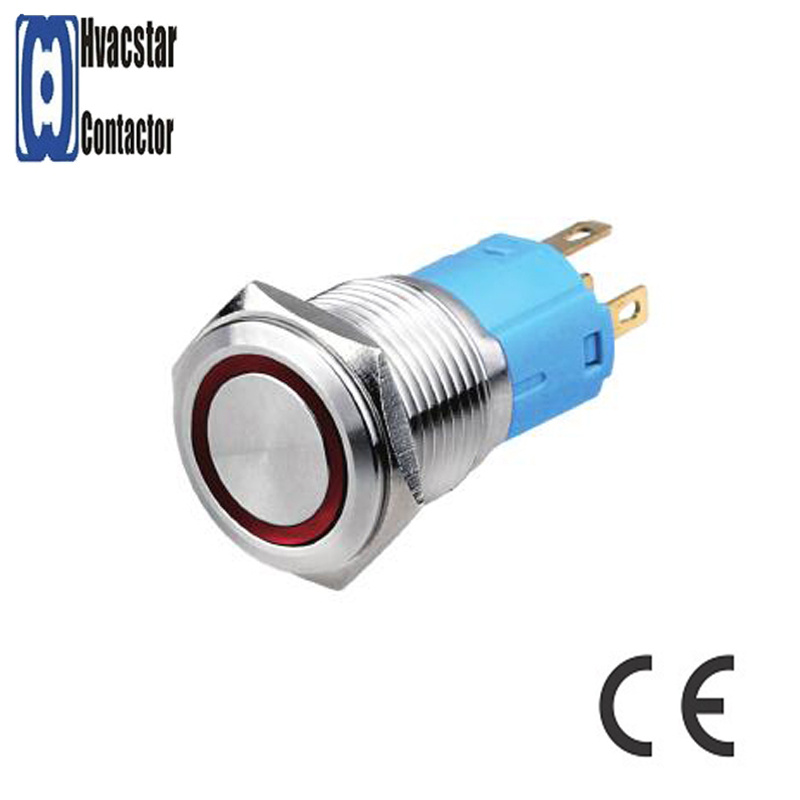

Name: LED Head Metal Push Button Switch Stainless Steel Switch
Brand: all-electronics-online.com
SKU: 824399755
Availability: InStock
Rating: 4.4 (20 reviews)

Price:	US $ 2-3/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LA188-S16-FJ11-E
Delivery Time:	30 Days After Deposit
Color:	White,Black,Green Yellow,Blue,Red,etc
Other Services:	ODM OEM
Type:	Normal Open
Usage:	Check Button
Kind:	Single-pole on-off Switch
Brand:	Hvacstar

Product Description

ABOUT US

HeCheng Electrical Co., Ltd., founded in 1995, is one of the leading manufacturers specializing in developing and producing kinds of low voltage electrical products and accessories in China. As an enterprise certified by ISO9001 system, we also get UL, IQNet, CQC, CSA etc. certifications. We have rich experience in producing and trading with advanced manufacturing equipment, power and complete testing equipments.

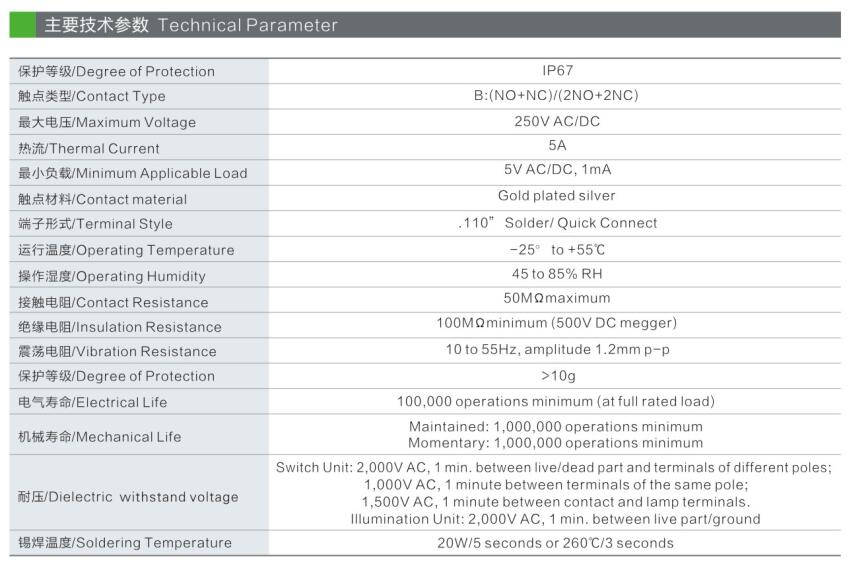

Defree of Protection	IP67
Contact Type	B: (NO+NC)/(2NO+2NC)
Maximum Voltage	250V AC/DC
Thermal Current	5A
Minimum Applicable Load	5V AC/DC, 1mA
Operation Temperature	-25ºC ~ +55ºC
Contact Resistance	50mΩmacimum
Short-circuit protection	RT16-10A
Electrical Life	100,000 operations minimum (at full rated load )
Mechanical Life	Maintained: 1,000,000 operations minimum Momentary: 1,000,000 operations minimun

Features:
1. The finger of comfort press to press position and switch to turn operation
2. The function identify
3. The auto connect ground
4. Defend the finger get an electric shock again
5. Plate chrome metals a head and install a base
6. The quakeproof bolt carry son
7. Hard,credibility,as long as 1,000,000 times machine life span
8. As long as 50,000 hours of the service life of the LED indicator
9. Touch some basecassette install
10. No need any tool
11. Fast and firm

FAQ
Q1: Can I get a sample for testing?
A: Yes, we could offer free sample, but shipping cost should be paid at customers' side.
Q2: Can I print my logo on the products?
A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
A: If quality problem happen we promise re-send the item .
Q4: Do you have inspection procedures for products?
A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q6: How about payment terms?
A: 30% deposit, the rest payment balance against B/L copy.
