LED Switching Mode Indoor Power Supply 300W Eldv-12e300b

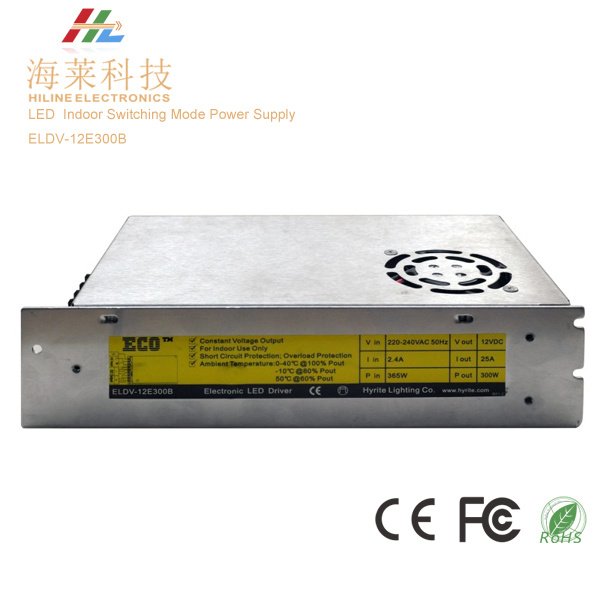

Name: LED Switching Mode Indoor Power Supply 300W Eldv-12e300b
Brand: all-electronics-online.com
SKU: 818997765
Availability: InStock
Rating: 4.6 (58 reviews)

Price:	US $ 14.5-15.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ELDV-12E300B
Size:	26011070 mm
Color:	White
Material:	Aluminum+PVC
Output Type:	Single
Warranty:	2 Years
Output Power:	201 - 300W
Input Voltage:	Full Range
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC

Product Description

ELDV-12E300B Introduction:
this Indoor use only unit has a metal case .The top surface and one side wall are perforated giving excellent heat dissipation characteristics via convection cooling. The open access electrical connection block enhances ease of installation. Compact size and light weight, enabling use in a variety of indoor installation locations.
ELDV-12E300B Features:
Indoor driver for LED module, strip, flex ribbon, bar light, panel light, LED-neon tube, pixel lamp, perforating lamp, etc...
Constant voltage output
Mesh case (or electric fan) for ventilation
100% burn-in test
ELDV-12E300B Technical parameters:

Model no.	ELDV-12E300B
Model series	ELDV
Input voltage	220-240VAC 50Hz/60Hz
Power	300 W max
Output type	Constant voltage
Dimming	Not dimmable
Power Factor	Low PF~0.6
Efficiency	75%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	25A max
Overload protection	110-150% hiccup mode, auto-recovery
Over voltage protection	115-150% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-10~+60ºC,100%Pout@0~45ºC, 60%@60ºC, 80%@-10ºC
Installation	Indoor
IP rating	IP 20
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	26011070 mm
Weight(kg)	1.1000
Packing information	30 Pcs/ Carton, G.W 31 KG

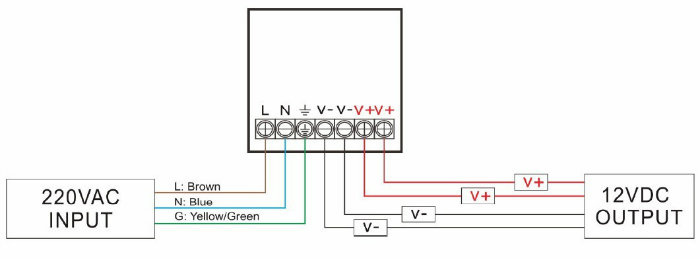

ELDV-12E300B wiring instruction:

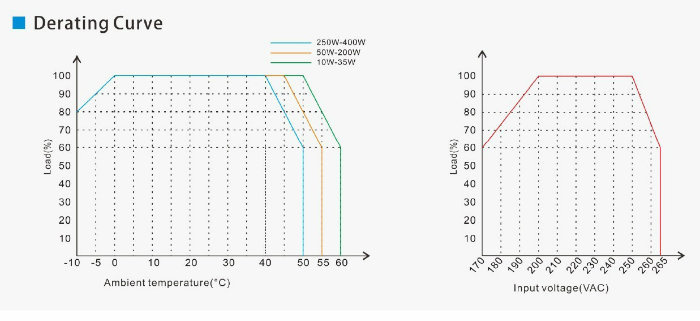

Derating curve:
