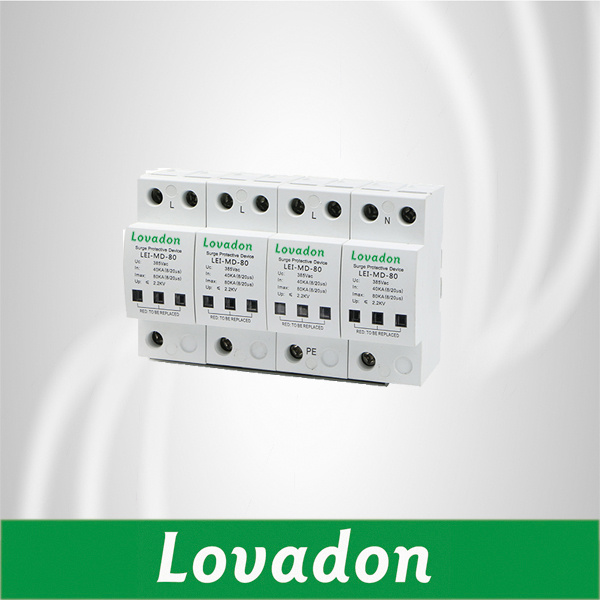

Lei-MD-80 Surge Protective Device

Name: Lei-MD-80 Surge Protective Device
Brand: all-electronics-online.com
SKU: 804903835
Availability: InStock
Rating: 4.8 (149 reviews)

Price:	US $ 1-2/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LEI-MD-80
Breaking Capacity:	Low Voltage Circuit Breakers
Arc-extinguishing Medium:	SF6
Installation:	Open Frame
Certification:	CCC

Product Description

Product Description
With a 35MM electrical rail installation, wiring is very convenient: the use of temperature control circuit technology. Built-in over-current fuse and thermal cut-off circuit , When the deterioration of the automatic trip; the product specifications complete, simple maintenance, and many other advantages, can provide more and can be played according to user needs, custom production

Large flow capacity, low residual voltage, fast response speed,
When the automatic tripping degradation, visual instructions to monitor the window into a red
(So drop)
Rocker interface remote alarm:
8 / 20чs Waveform:

Technical Parameters

Model Technical Parameters	LEI-MD-200	LEI-MD-160	LEI-MD-120	LEI-MD-100	LEI-MD-80	LEI-MD-60
Rated Operating Voltage Uc(V~)	220V/380V
Maximum Continuous Operating Voltage Uc( V~)	385V/420V
Protection Level Up(V-)kV	≤3.5	≤3.0	≤2.8	≤2.5	≤2.2	≤2.0
Nominal Discharge Curreni lmax( 8/20чs)kA	200	160	120	100	80	60
Nominal Discharge Current ln(8/20 us)kA	120	100	80	60	40	30
Response Time ns	<25
L/N(mm2)The Cross Section of L/N Line	16	10	8	6	4	4
PE(mm2) The Cross Section of PE Line	25	16	10	8	6	6
Fuse or Switch(A)	100A	100A	100A	63A	63A,32A	63A,32A
Operating EnvironmentºC	-40ºC~+85ºC
Relative Ilumidity (25ºC)	≤95%
Installation	Standard Rail 35mm
Material of Outer Covering	Fiber glass reinforced plastic

Order Notification
Users in the product customization or ordering, should be marked product line. Color, type, series. Voltage. Quantity.

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
