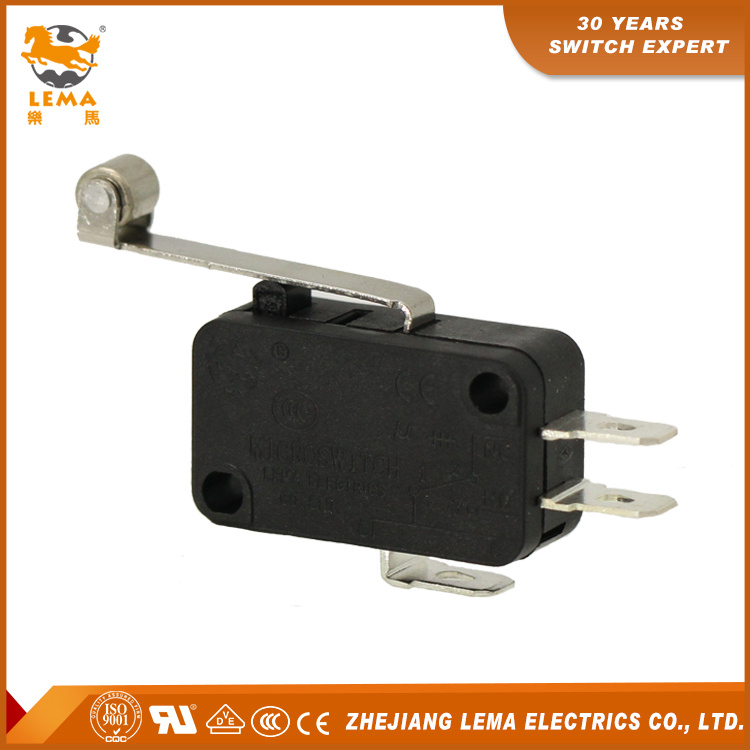

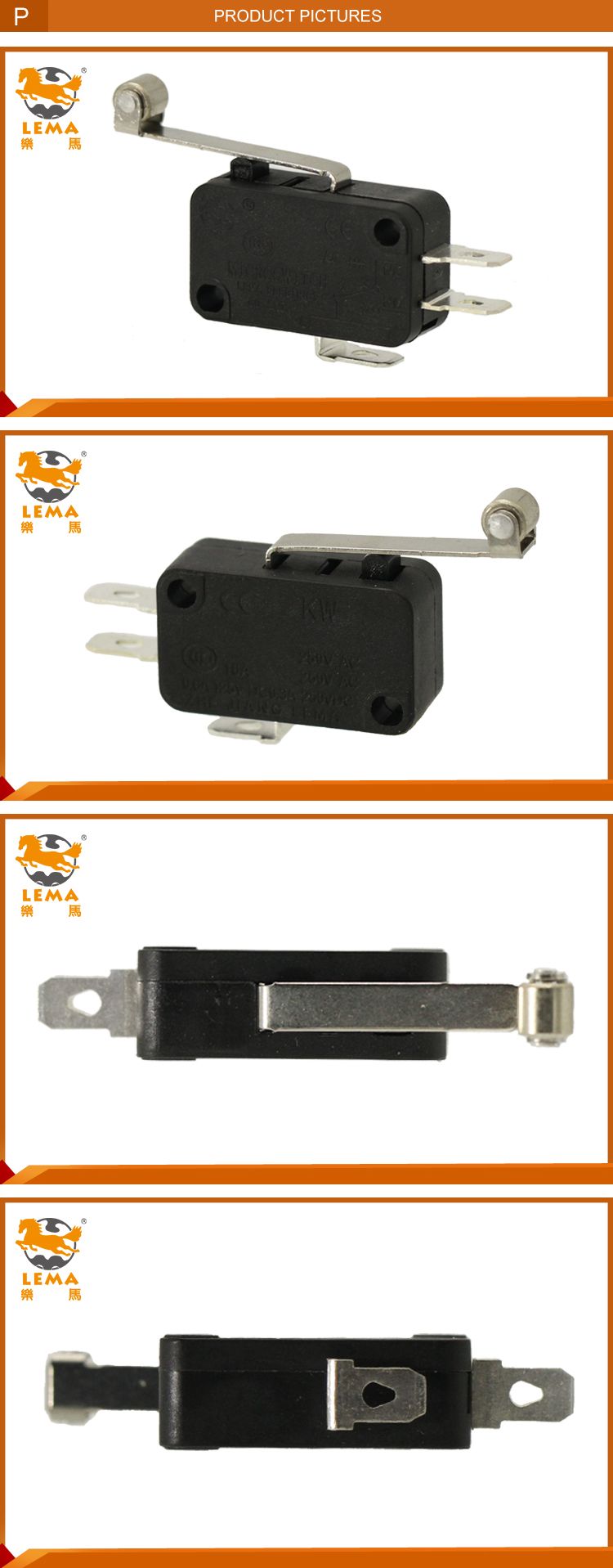

Lema Kw-7-2 Long Metal Roller Lever CCC Ce UL VDE Micro Switch

Name: Lema Kw-7-2 Long Metal Roller Lever CCC Ce UL VDE Micro Switch
Brand: all-electronics-online.com
SKU: 616947552
Availability: InStock
Rating: 4.9 (59 reviews)

Price:	US $ 0.34-0.77/Piece
Trade Terms:	FOB,CFR,DAT
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Lema KW-7-2 Long Metal Roller Lever CCC CE UL VDE Micro Switch

Rating		3A, 8A, 16A/250VAC, 125VAC 0.6A/125VDC 0.3A/250VDC
Initial contact resistance		≤25mΩ
Initial insulation resistance ( At 500V DC)		≥100mΩ
Dielectric strength	Between non-consecutive terminal	1000Vrms, 50/60Hz, 1min
	Between current carrying and non-carry metal parts	1500Vrms, 50/60Hz, 1min
	Between ground and each terminal	1500Vrms, 50/60Hz, 1min
Max. Shock resistance	Mechanical durable	1000m/s2
	Malfunction	300m/s2
Vibration resistance		10-55Hz, 1.5mm double amplitude
Expected life	Mechanical	20000000
	Electrical	100000
Ambient temperature		-25 to +85
Ambient humidity		85%RH max
Operating frequency	Mechanical	60 times/min
	Electrical	25 times/min
Operation speed		0.01mm-1m/s

Prod Model:	KW-7-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rating:	16A 250VAC
Characteristics:	Compact Design
Color:	Black
Contact Type:	Spdt
Protection:	Dust-Proof
Size:	Normal Size
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Single Type
Pressing Type:	Long Metal Roller Lever
Application:	Electronic Products, Domestic Electric Appliances
Brand:	Lema
Certification:	VDE

Originated in 1981, this company is specialized in research and development, the micro-switch, the waterproofswitch, the power source plug, the protector, the float spacing controller series product, which are suitable for low voltage electric appliance, domestic electric appliance, instrument measuring appliance electron toy with AC 50Hz, voltage 250V and below, DC voltage 220V and below. The company is located in the economic development zone of Yueqing. The first stage factory building covers an area of 11 Mou with a construction area of 4566 square meters, the second stage covers an area of 42 Mou now, which will put into building soon. The company has a rich technical force, and the key team of the Hi-Tech who dare to innovate, dare to open up. The company has achieved"LEMA"brand to invigorate the Chinese nation with the indication of "setting up the factory with quality, prospering the factory with science and technology"for more than 20 years. Our company has past management system authentication ISO9001-2000 and ISO14001-2004, and the products have won the CE certification, U. S. A. UL authentication, CCC authentication, and SGS checkout. The products are far sold to countries such as Amercia and Europe, Southeast Asia, etc. We could like to offer the best quality, competitive price and best after-sale service to all of our users, " seeking the bosom friends of the four seas, making the friend all over the world", wish to make progress together with the domestic and international friends to achieve more glorious future
