Lema Lz15-Gq8-B Panel Mount Long Plunger Micro Switch CCC Ce UL Approvals

Name: Lema Lz15-Gq8-B Panel Mount Long Plunger Micro Switch CCC Ce UL Approvals
Brand: all-electronics-online.com
SKU: 685121952
Availability: InStock
Rating: 4.4 (91 reviews)

Price:	US $ 1.63-2.25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

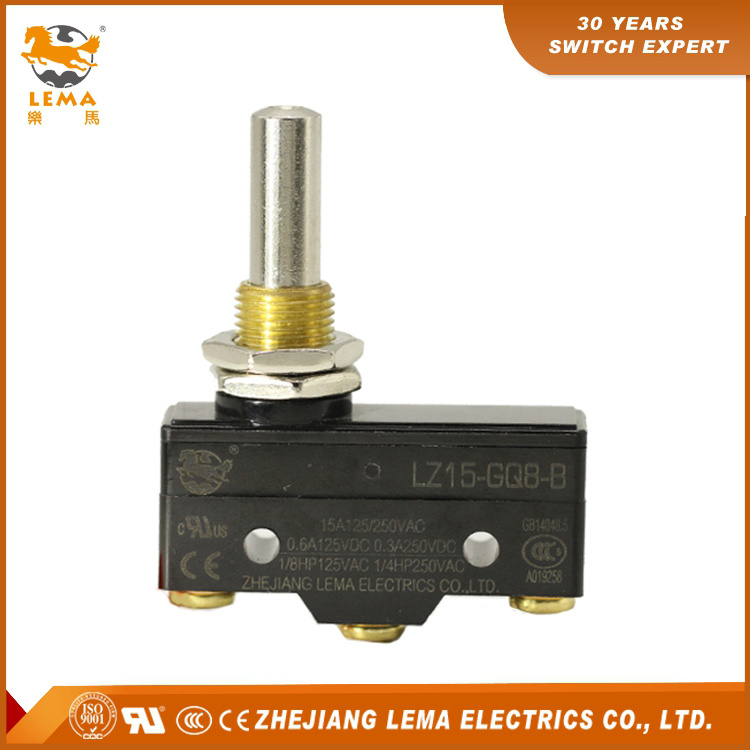

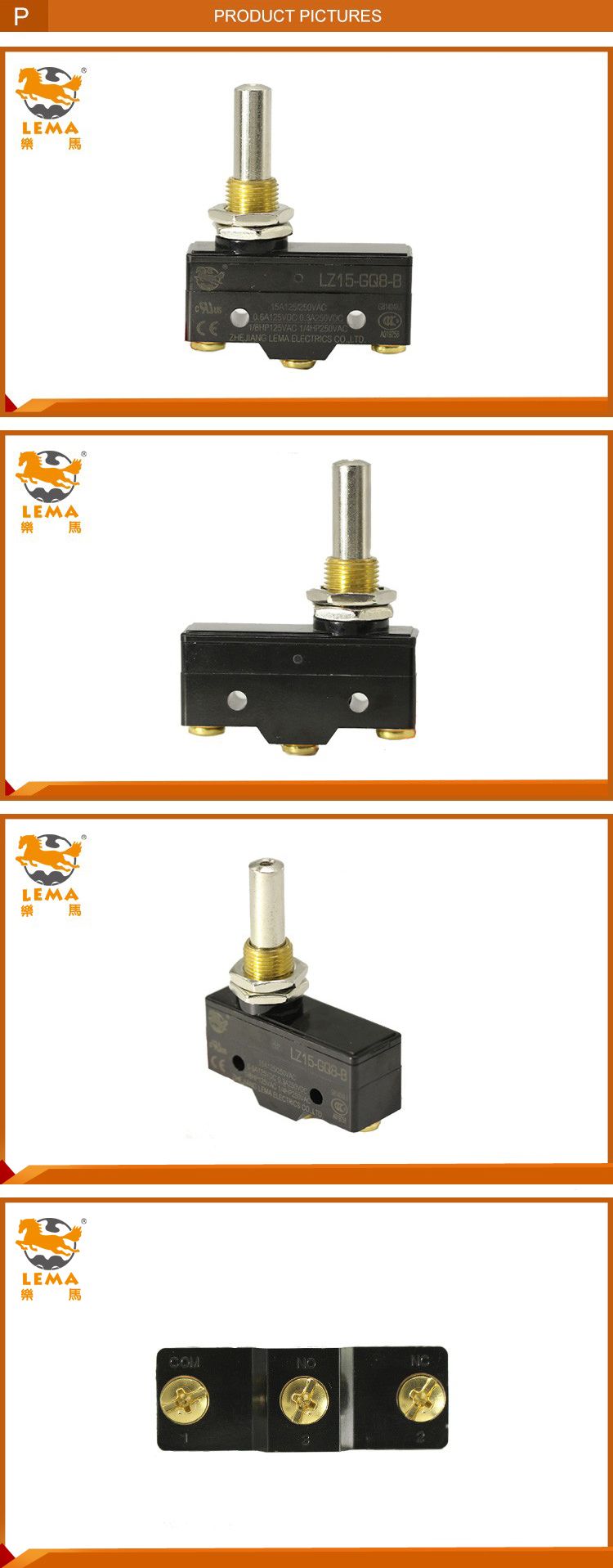

Lema LZ15-GQ8-B Panel Mount Long Plunger Micro Switch CE UL Approvals

Operating speed		0.01mm-1m/s
Operating frequency		Mechanical:240 operations/min
		Electrical:20 operations/min
Initial insulation resistance		100MΩmin.(at 500VDC)
Initial contact resistance		25MΩmax.
Dielectric strength	Between non-consecutive terminals	1,000Vrms, 50/60Hz for 1 min
	Between non-current carrying metal parts and each terminal	2,000Vrms, 50/60Hz for 1 min
	Between ground and each terminal	2,000Vrms, 50/60Hz for 1 min
Vibration resistance		10-55Hz,1.5mm double amplitude
Max.shock resistance		Destruction: 1000m/s2 Malfunction: 300m/s2

Operating life	Mechanical life	2,000,000 operations min.
	Electrical life	100,000 operations min.

Prod Model:	LZ-15-GQ8-B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rating:	15A 250VAC
Ambient Tepmerature:	-25-+85 Centigrade Degree
Operating Force:	350g(3.43n)
Approved:	CCC CE UL
Protection Degree:	IP40
Protection:	Dust-Proof
Size:	Normal Size
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Single Type
Pressing Type:	Panel Mount Long Plunger
Application:	Electrical Device
Brand:	Lema

Originated in 1981, this company is specialized in research and development, the micro-switch, the waterproofswitch, the power source plug, the protector, the float spacing controller series product, which are suitable for low voltage electric appliance, domestic electric appliance, instrument measuring appliance electron toy with AC 50Hz, voltage 250V and below, DC voltage 220V and below. The company is located in the economic development zone of Yueqing. The first stage factory building covers an area of 11 Mou with a construction area of 4566 square meters, the second stage covers an area of 42 Mou now, which will put into building soon. The company has a rich technical force, and the key team of the Hi-Tech who dare to innovate, dare to open up. The company has achieved"LEMA"brand to invigorate the Chinese nation with the indication of "setting up the factory with quality, prospering the factory with science and technology"for more than 20 years. Our company has past management system authentication ISO9001-2000 and ISO14001-2004, and the products have won the CE certification, U. S. A. UL authentication, CCC authentication, and SGS checkout. The products are far sold to countries such as Amercia and Europe, Southeast Asia, etc. We could like to offer the best quality, competitive price and best after-sale service to all of our users, " seeking the bosom friends of the four seas, making the friend all over the world", wish to make progress together with the domestic and international friends to achieve more glorious future
