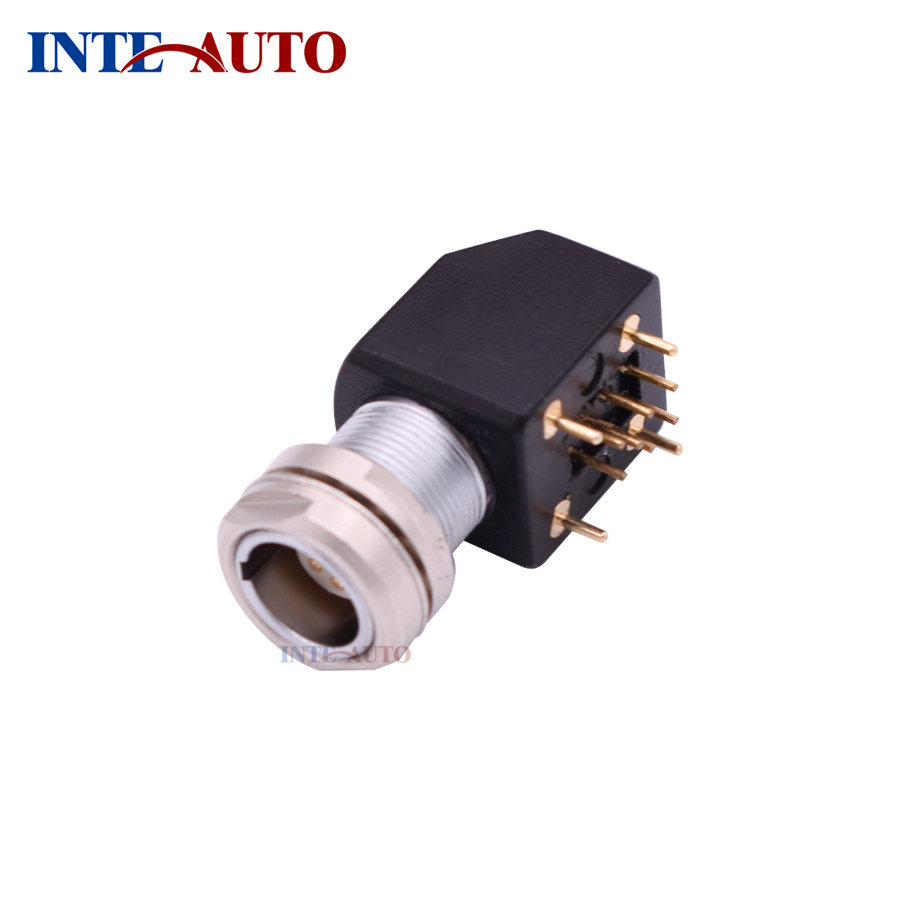

Lemo Exg Elbow Receptacle with Printed Circuit PCB Contacts
| Price: |
US $ 7-9/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
1B series Metal circular push pull female connector
Model (EXG). Series (0B…1B). Key (G). Elbow (90°) receptacle for printed circuit with two nuts screw fixingB series connectors provide the following main features:
1.Security of the Push-Pull self-latching system
2.Multiple key options to avoid cross mating
3.keying system («G» key standard)of similar connectors for connector alignment
4.360° screening for full EMC shielding.
5.multipole types 2 to 32 contacts
6.Solder, print contacts (straight or elbow)
7.High packing density for space savings
Products size:
| Reference | Series | EXG | EXG | EXG |
| Model | 00 | 0B | 1B |

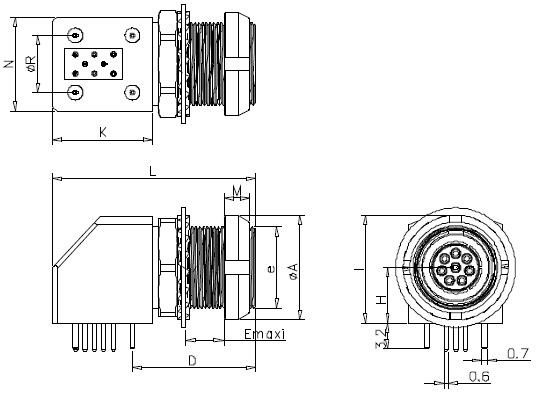

Dimensions
(mm) | A | 10 | 12 | 14 |
| B | 10.2 | 12.4 | 15.0 |
| D | 11.5 | 14.6 | 16.6 |
| e | M7 x 0.5 | M9 x 0.6 | M11 x0.5 |
| E | 2.1 | 6.0 | 7.5 |
| H | 3.5 | 6.7 | 7.5 |
| I | 7.0 | 12.6 | 14.0 |
| K | 8.7 | 13.3 | 13.3 |
| L | 19 | 25 | 27 |
| M | 2.5 | 2.5 | 3.5 |
| N | 7.1 | 11.7 | 12.6 |
| R | 15.08 | 7.62 | 7.62 |
| S3 | 9 | 11 | 13 |
Product Photo Details:

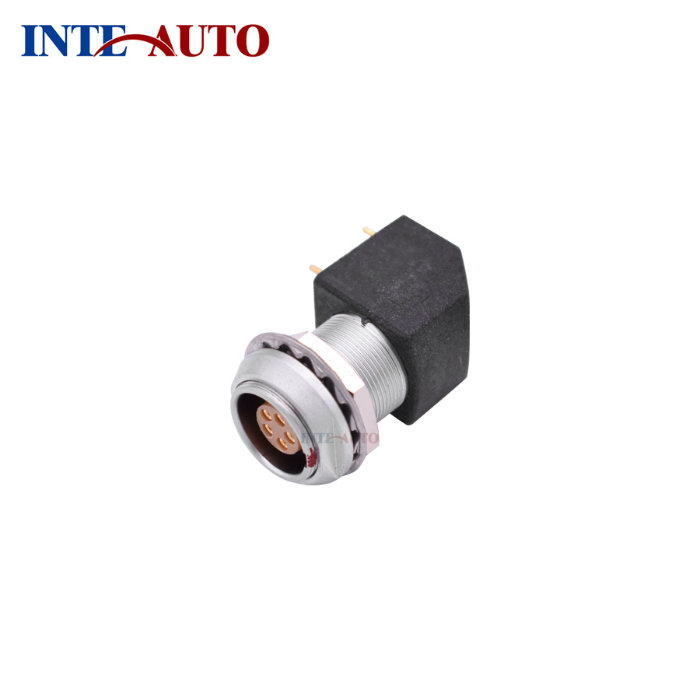

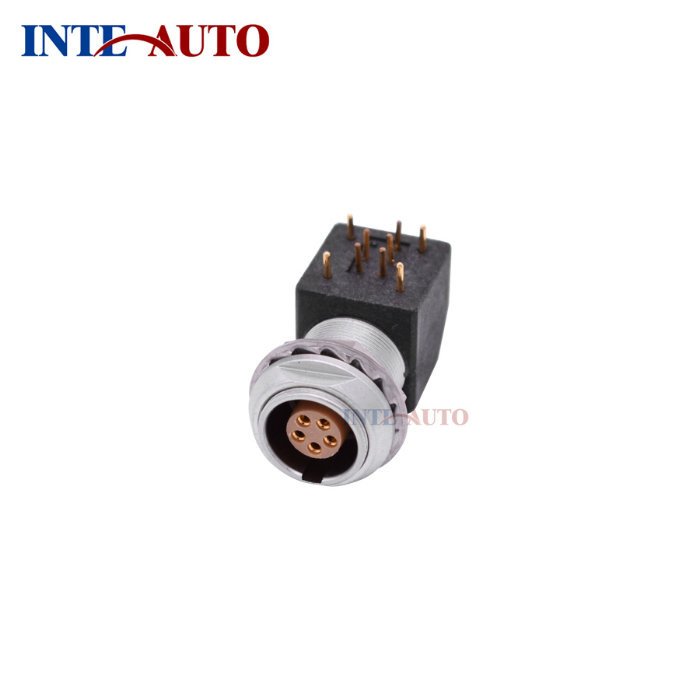

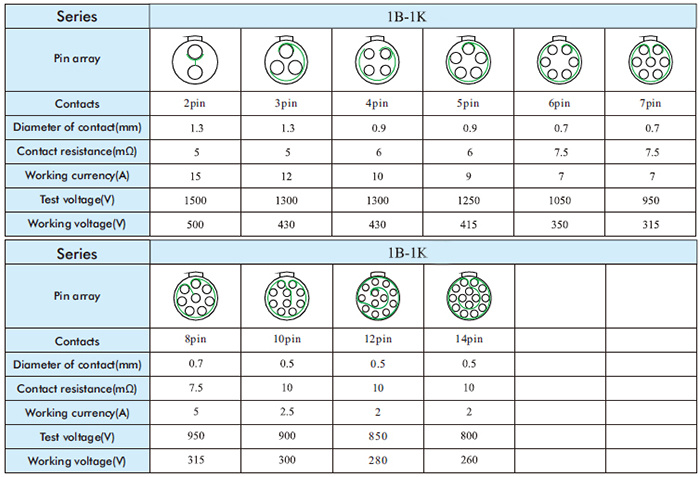

Insulator specs for B series:
Technical characteristics:
Mechanical and Climatically
1.Endurance:> 5000 mating cycles;
2.Humidity :Up to 95% at 60 ºC;
3.Temperature range:-45 ºC, +125 ºC;
4..Resistance to vibration :15 g[10 HZ-2000HZ];
5.Shock resistance:100 g ,6 MS;
6.Salt spray corrosion test :> 48h;
7.Protection index (mated) :IP50.Industry Application:
It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications product line.
Series B Metal Connector with Multiple pins for your selection:
00B Series:2,3,4 Pins
0B Series:2,3,4,5,6,7,9 Pins
1B Series:2,3,4,5,6,7,8,10,14,16 Pins
2B Series:2,3,4,5,6,7,8,10,12,14,16,18,19,26,32 Pins
3B Series:2,3,4,5,6,7,8,9,10,12,14,16,18,20,22,24,26,30PinsINTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.
