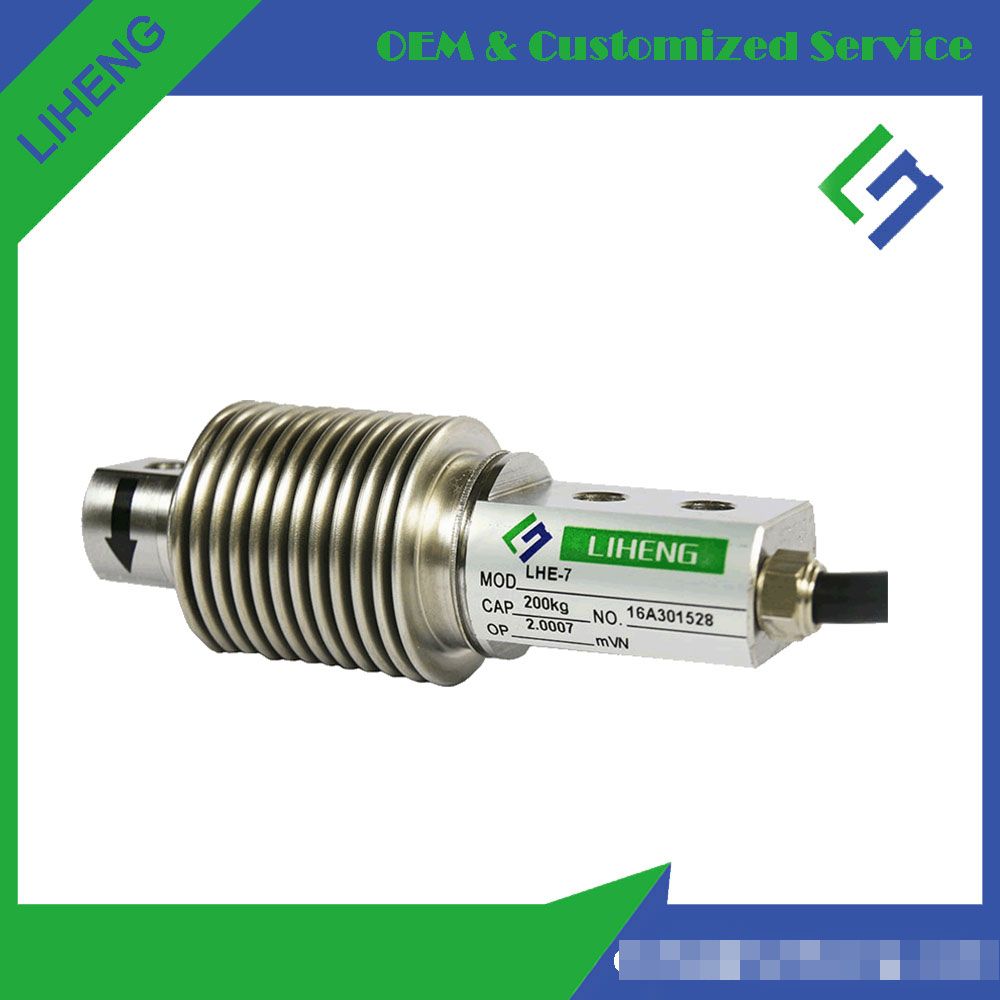

Lhe-7 Stainless Steel Bending Beam Load Cell

Name: Lhe-7 Stainless Steel Bending Beam Load Cell
Brand: all-electronics-online.com
SKU: 809183155
Availability: InStock
Rating: 4.4 (55 reviews)

Price:	US $ 50-92/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

About us
Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products: Various digital and analog weighing load cells.

Materials: Stainless stee
Cantilever beam structure, hermetically sealed on metallic crinkle
Tension and compression force, anti-overload and deflective load, high fatigue resistance
Suitable for electronic belt scale, hopper scale, etc

Specification

Rated Output

2.00±0.005

Output Resistance(Ω)

350±3

Nonlinearity

±0.02%FS

Insulation Resistance

≥5000MΩ

Hysteresis

±0.02%FS

Excitation Voltage

10V(DC/AC)

Repeatability

±0.01%FS

Compensated TemperatureRange

-10~+50ºC

Creep(30 minutes)

±0.02%FS

Operating Temperature Range

-20~+60ºC

Zero Balance

±1.00%FS

Safe Overload

120%FS

Temperature Effect On Zero

±0.02%FS/10ºC

Cable

Φ5.4X5m

Temperature Effect On Output

±0.02%FS/10ºC

Cable Color Code

Input
Red+ black-
Output:
Green+ white-

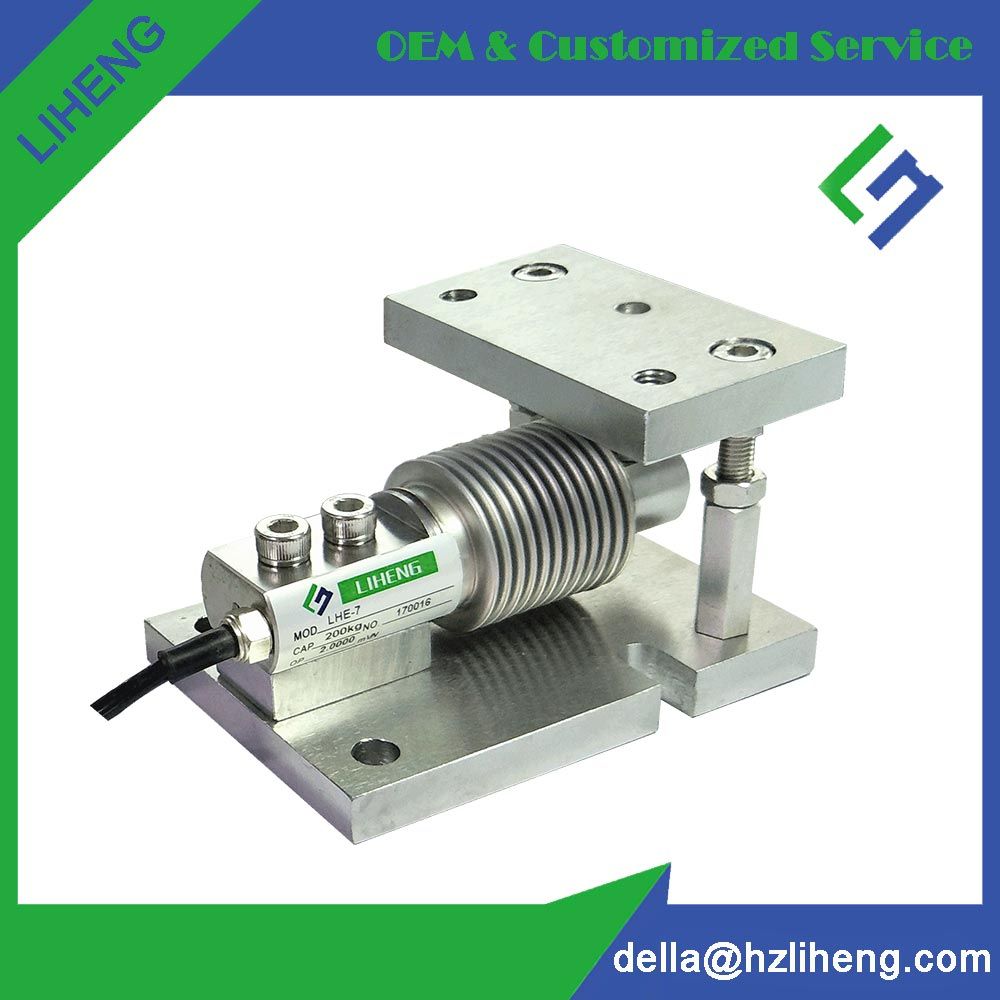

https://hzliheng.en.made-in-china.com/product/NsZJwWyTpghj/China-Lhe-7m-Bending-Beam-Load-Cell-Mounting-Kits.html

Exhibition Show

Prod Model:	LHE-7
Sensitivity:	2.00+/-0.005
Nonlinearity:	+/-0.02%Fs
Hysteresis:	+/-0.02%Fs
Repeatability:	+/-0.01%Fs
Pattern:	Bending Beam Load Cell

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
