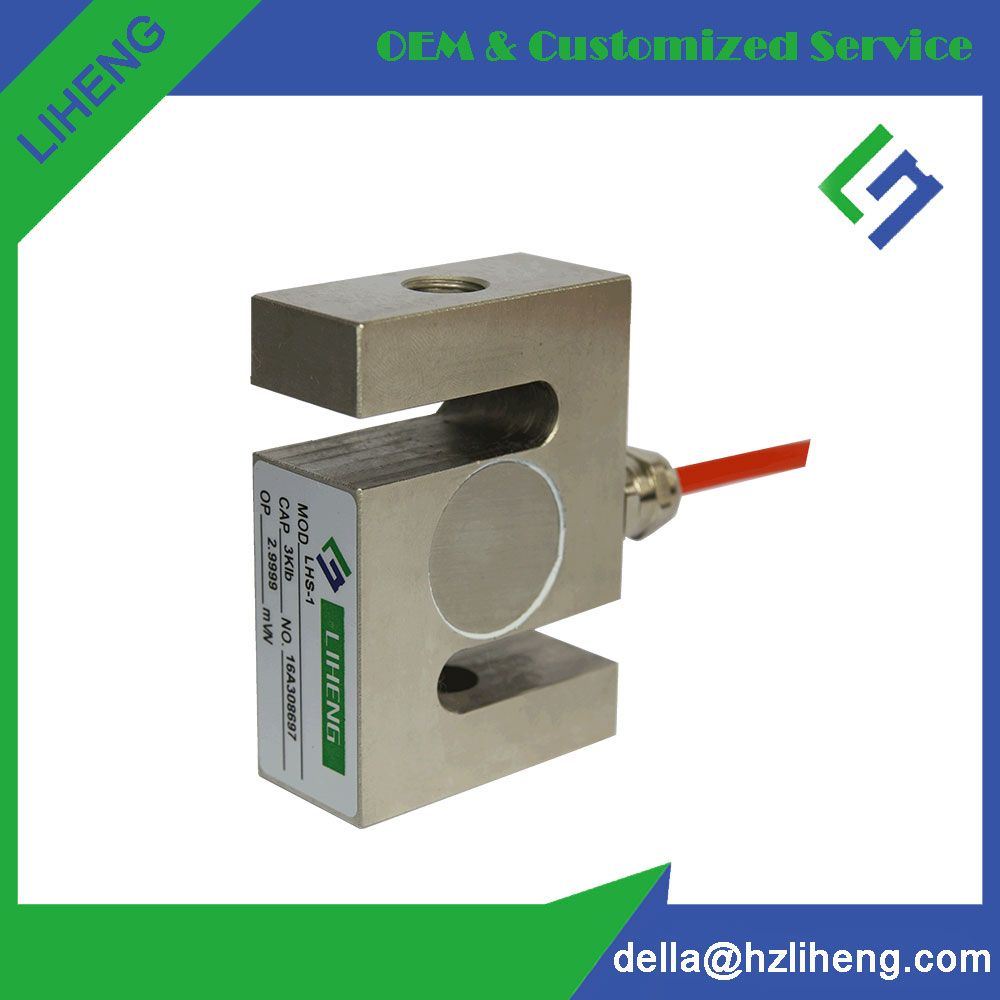

Lhs-1 S Type Load Cell in Alloy Steel or Stainless Steel

Name: Lhs-1 S Type Load Cell in Alloy Steel or Stainless Steel
Brand: all-electronics-online.com
SKU: 809184915
Availability: InStock
Rating: 4.9 (120 reviews)

Price:	US $ 19-170/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

About us
Liheng Electronic is the load cell manufacturer with 29 years experience.
We have our own engineers, can provide customized service with professional instruction and advice.
Main products:Various digital and analog weighing load cells.

5kg~20t
materials: alloy steel, stainless steel
tension and compression, good at output symmetry
suitable for electric-mechanical scale, crane scale, hopper scale and various special scale

specification
rated output	2.00±0.005; 3.00±0.005;	output resistance(ω)	350±3
nonlinearity	±0.02%fs	insulation resistance	≥5000mω
hysteresis	±0.02%fs	excitation voltage	10v(dc/ac)
repeatability	±0.01%fs	compensated temperaturerange	-10~+50ºc
creep(30 minutes)	±0.02%fs	operating temperature range	-20~+60ºc
zero balance	±1.00%fs	safe overload	120%fs
temperature bffect on oero	±0.02%fs/10ºc	cable	φ5.4x5m
temperature bffect on output	±0.02%fs/10ºc	cable color code	input: red+ black- output: green+ white-

Exhibition Show

Prod Model:	LHS-1
Sensitivity:	2.00+/-0.005, 3.00+/-0.005
Nonlinearity:	+/-0.02%Fs
Hysteresis:	+/-0.02%Fs
Repeatability:	+/-0.01%Fs
Out-Wire:	4 or 6 Wires
Material:	Alloy Steel or Stainless Steel
IP Rating:	IP67 or IP68

Huzhou LihengElectronic Technology Co., Ltd owns a professional team which has been workingon load cell and force sensor for 10-30 years. The key members are experiencedon technical, design, manufacture and international marketing, which inheritsfrom the traditional process and design idea of 1970s.

So, Liheng, hasabundant ability to create its own brand on load cell and force sensor industry. We already have competitive experience to export Products overseas, with its raw material range of stainless steel, alloy steel and aluminum.

Besides, we are also capable to fulfill international approvals independently. Our team everhad smooth co-operations with NIST(U. S. ), NMI(The Netherlands), NMO(U. K. )

With the concept of "Quality Goes First", Liheng is qualified to provide its high precision sensors to clients. We adopt stable production process and quality control system, as well as bring in advanced manufacturing machines and accurate test equipment, to ensure our quality on each product.

Leading by our spirit - " Service to Clients, Service to Staff", we will use our innovative idea to create a new and reliable brand- Liheng.
